Fuel Injector

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect fuel injector harness connector.
  2. Check resistance between terminals as shown in the figure.

    Resistance: 11.1 - 14.5Ω [at 10 - 60°C (50 - 140°F)]

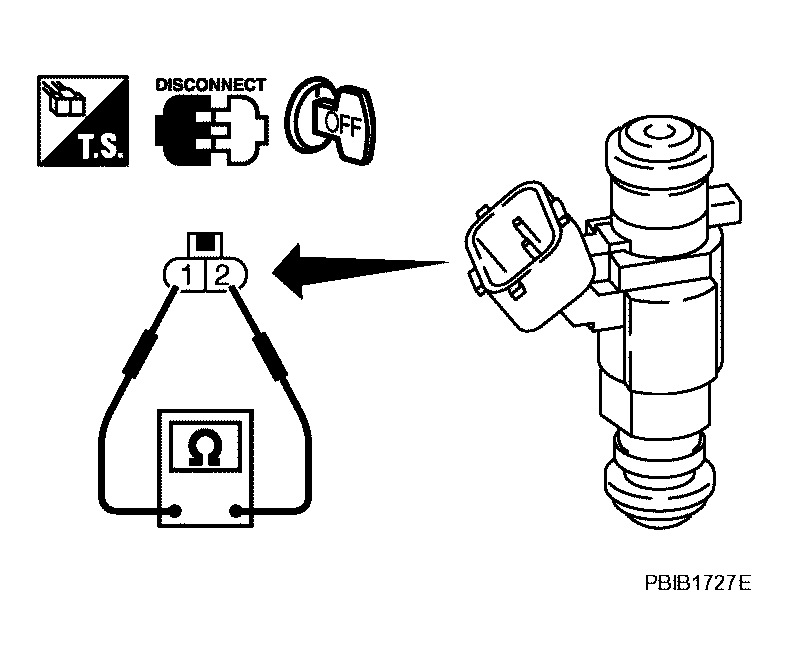

    Fig 1: Identifying Resistance Between Fuel Injector Terminals 1 And 2
    G04120304Courtesy of NISSAN MOTOR CO., U.S.A.
