Overall Sequence

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

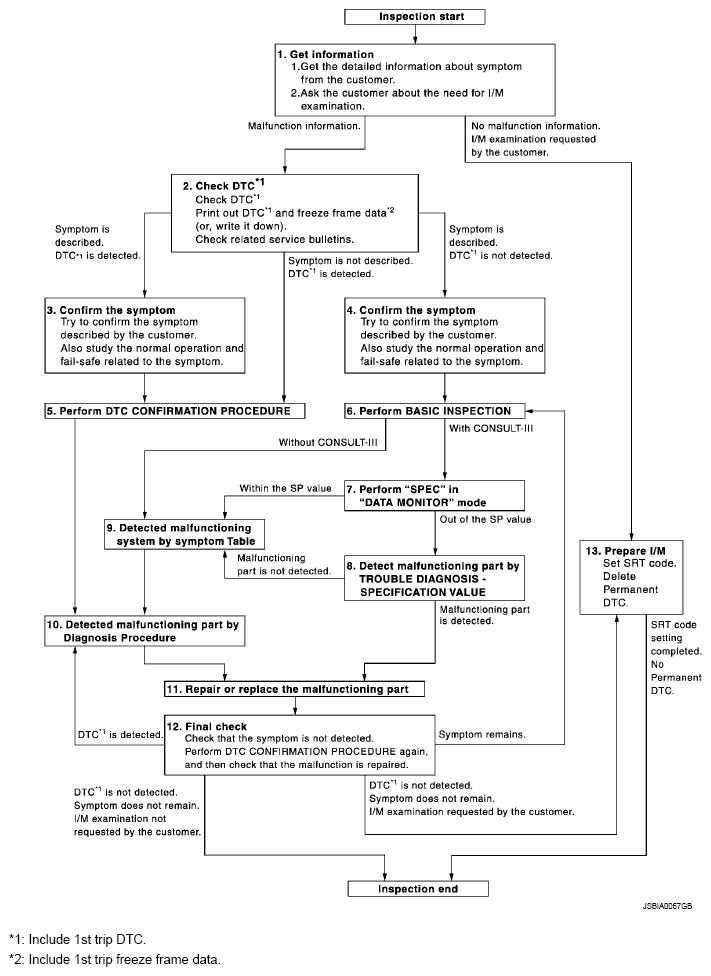

Fig 1: Overall Sequence Work Flow Chart
G07152382Courtesy of NISSAN NORTH AMERICA, INC.

*1: Include 1st trip DTC.

*2: Include 1st trip freeze frame data.
