VIAS Control Solenoid Valve

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

The VIAS control solenoid valve (2) cuts the intake manifold vacuum signal for power valve control. It responds to ON/OFF signals from the ECM. When the solenoid is off, the vacuum signal from the intake manifold is cut. When the ECM sends an ON signal the coil pulls the plunger downward and feeds the vacuum signal to the power valve actuator (1).

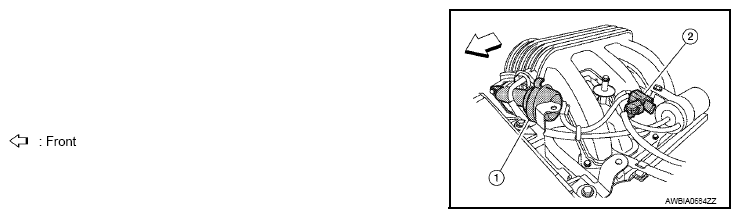

Fig 1: Identifying Power Valve Actuator And VIAS Control Solenoid Valve
G07152326Courtesy of NISSAN NORTH AMERICA, INC.
