Component Parts and Harness Connector Location

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

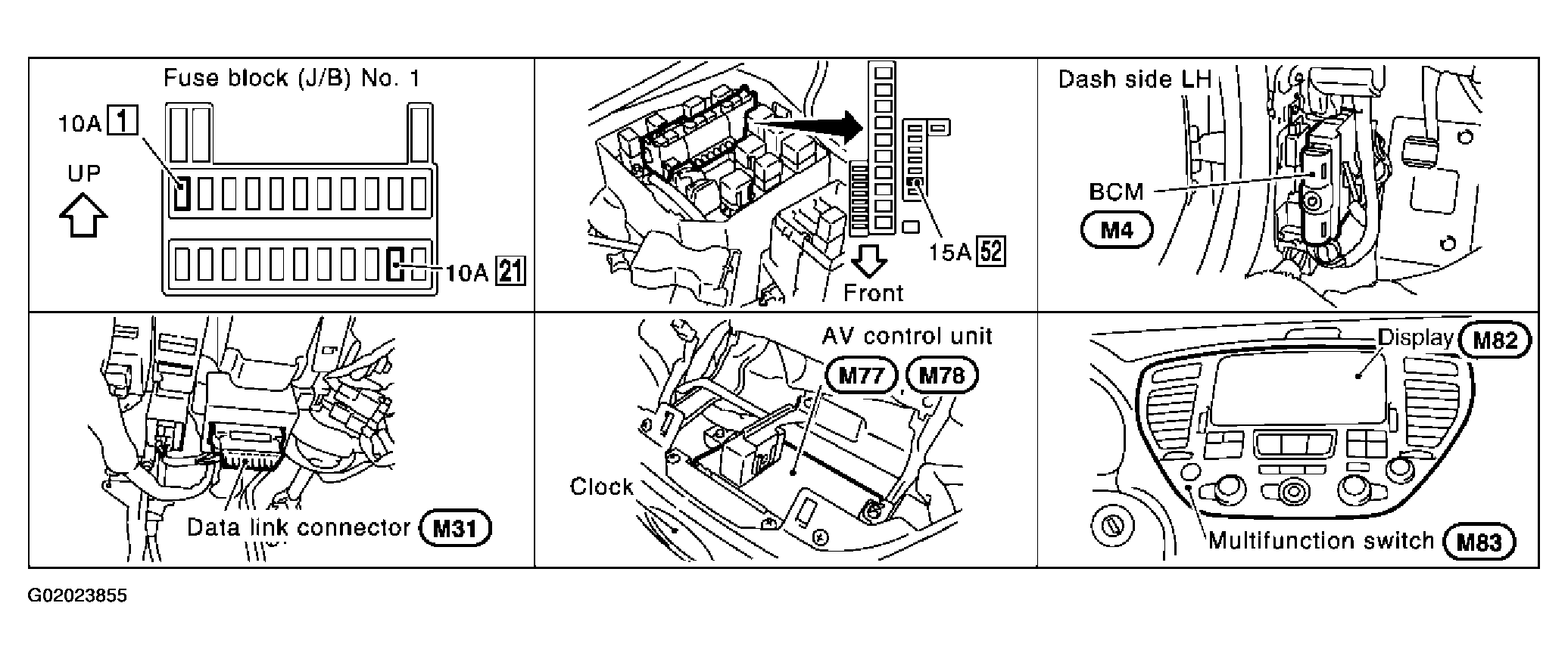

Fig 1: Locating Component Parts and Harness Connector (AV Control Unit)
G02023855Courtesy of NISSAN MOTOR CO., U.S.A.
