Operation Procedure

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine.
Turn the audio system off.
While pressing the "INFO" switch, turn the volume control dial clockwise or counterclockwise for 30 clicks or more. (When the self-diagnosis mode is started, a short beep will be heard.)

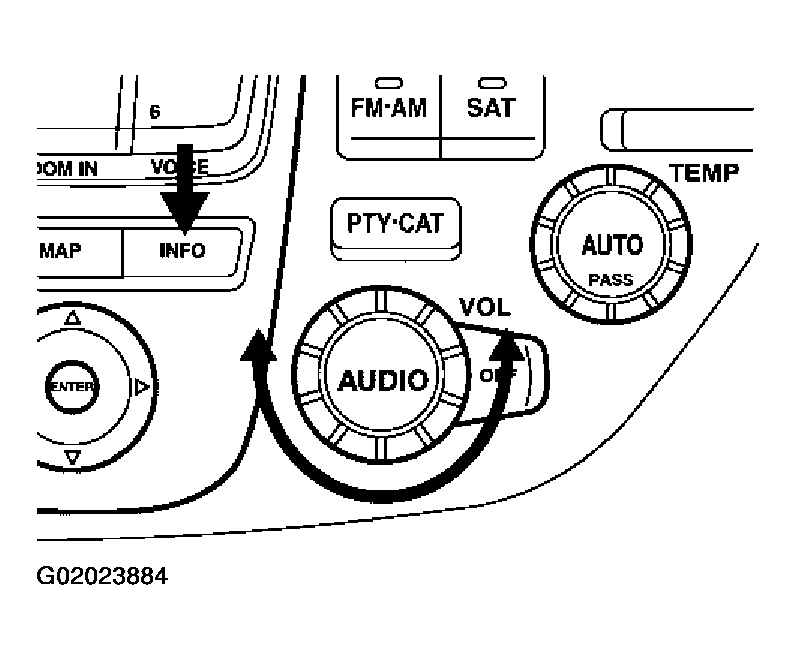

Fig 1: Pressing "INFO" Switch & Turning Volume Control Dial
Courtesy of NISSAN MOTOR CO., U.S.A.
- Shifting from current screen to previous screen is performed by pressing "PREV" switch.
The initial trouble diagnosis screen will be shown, and items "SELF DIAGNOSIS" and "Confirmation/Adjustment" will become selective.

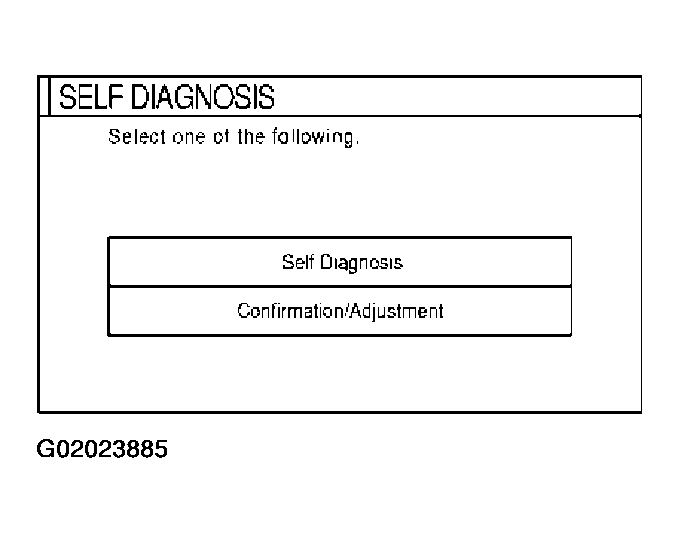

Fig 2: Identifying Initial Trouble Diagnosis Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
When "Confirmation/Adjustment" is selected on the initial trouble diagnosis screen, the operation will enter the CONFIRMATION/ADJUSTMENT mode. In this mode, check and adjustment of each item will become possible.

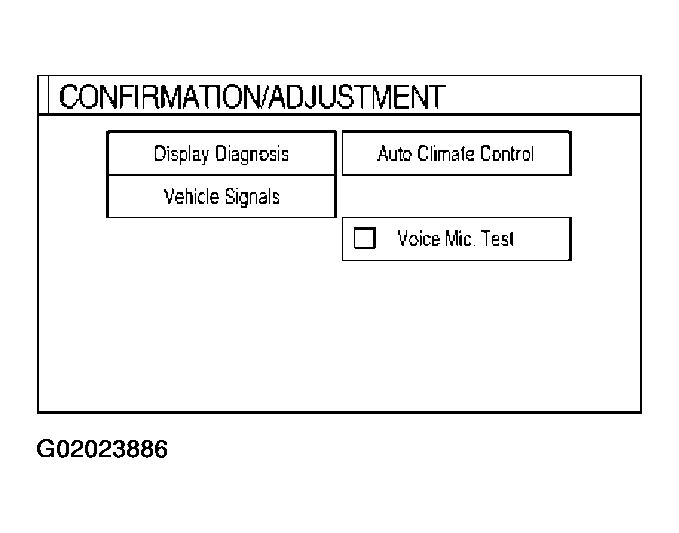

Fig 3: Identifying Confirmation/Adjustment Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Select each switch on "Confirmation/Adjustment" screen to display the relevant diagnosis screen.
