Disassembly and Assembly of Multifunction Switch

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove screw (8).

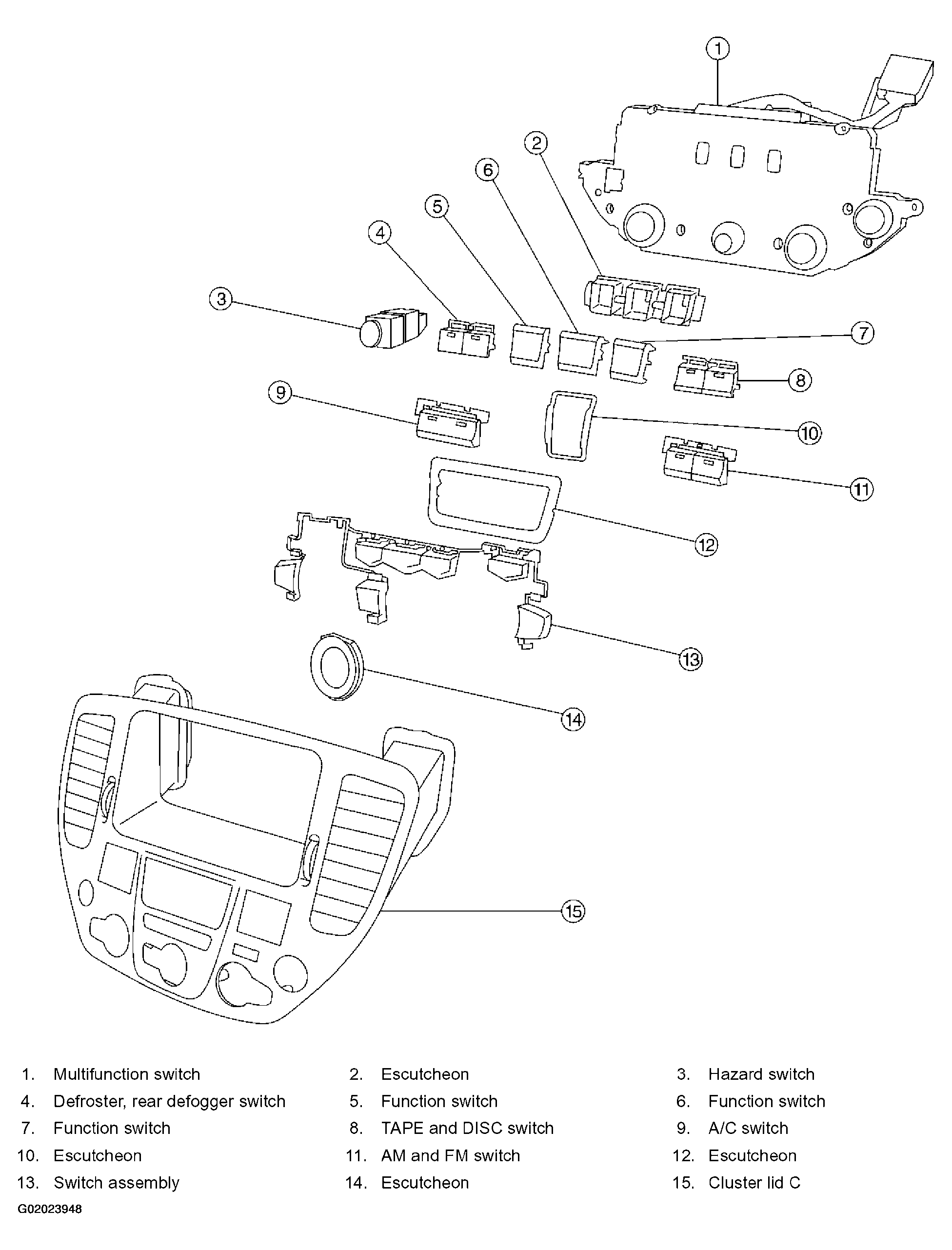

    Fig 1: Exploded View Of Multifunction Switch
    G02023948Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove switches.
