Removal and Installation of AV Control Unit: Removal

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove warning chime. Refer to "REMOVAL AND INSTALLATION OF WARNING CHIME ".
  3. Remove tire pressure warning control unit. Refer to "TIRE PRESSURE WARNING CONTROL UNIT ".
  4. Remove screws (2), and remove AV control unit with power tool.

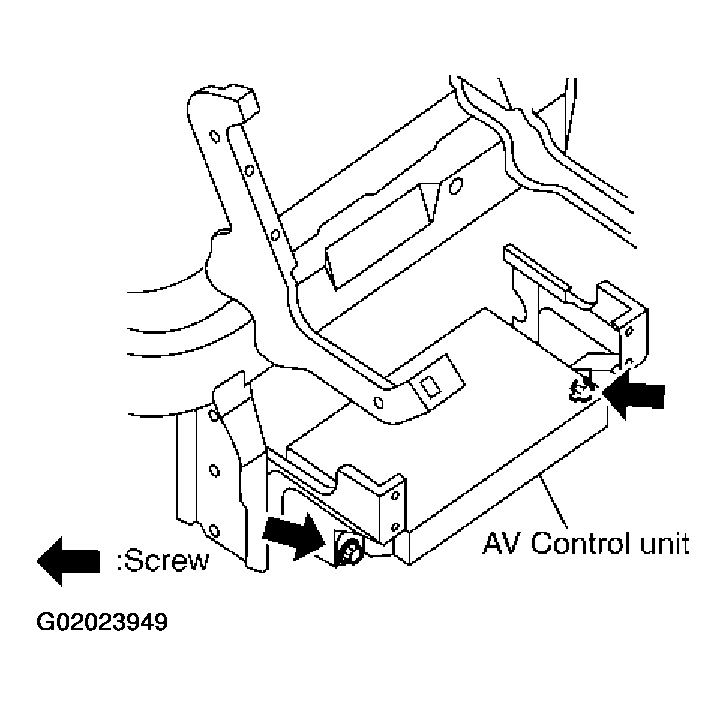

    Fig 1: Removing AV Control Unit
    G02023949Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove screws (4), and remove bracket.

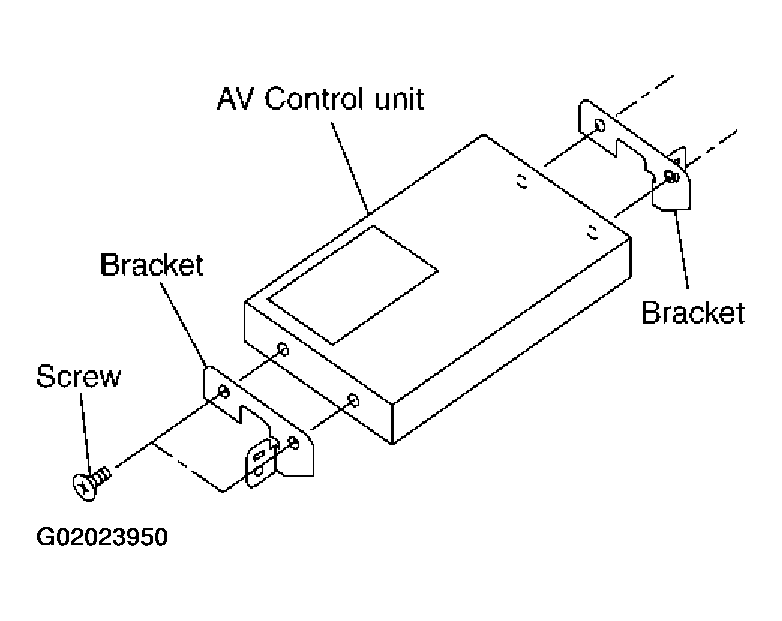

    Fig 2: Removing Bracket
    G02023950Courtesy of NISSAN MOTOR CO., U.S.A.
