Removal and Installation of Display: Removal

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove screws (4), and remove display.

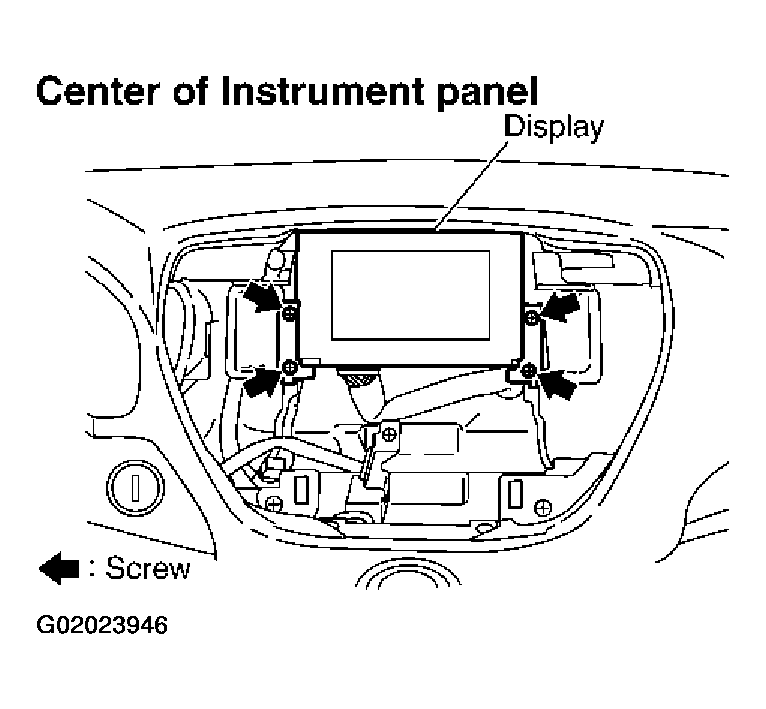

    Fig 1: Removing Display
    G02023946Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (4), and remove bracket.

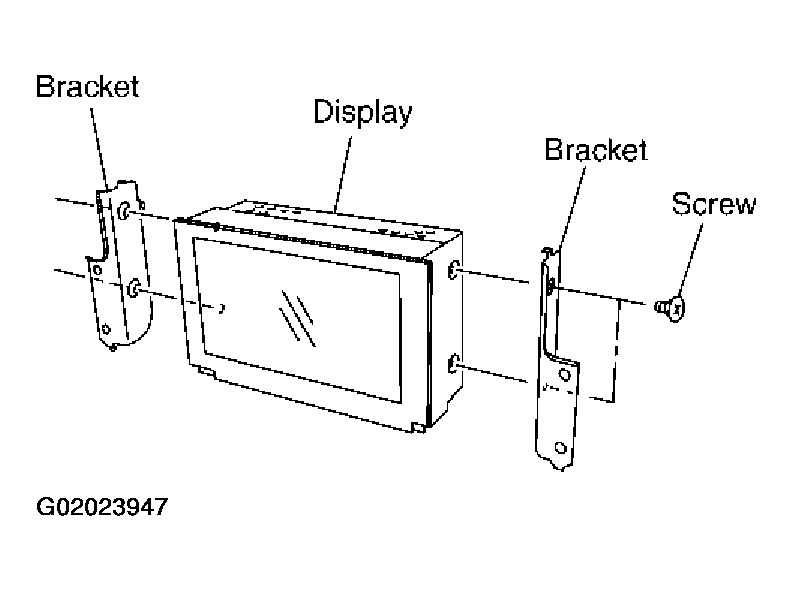

    Fig 2: Removing Bracket
    G02023947Courtesy of NISSAN MOTOR CO., U.S.A.
