Setting Of Vehicle Status

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Setting of electric status can be changed by multifunction switch. The signal is sent to BCM through AV control unit to change vehicle electric system setting.
AV control unit is communicating with BCM and combination meter.

Press "SETTING" switch to display vehicle information display.

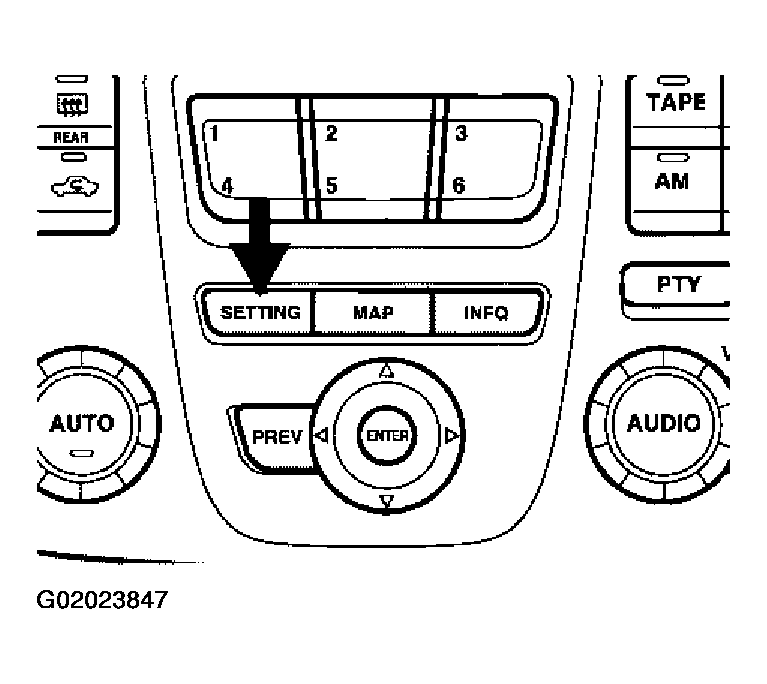

Fig 1: Pressing "SETTING" Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Vehicle Electronic System".

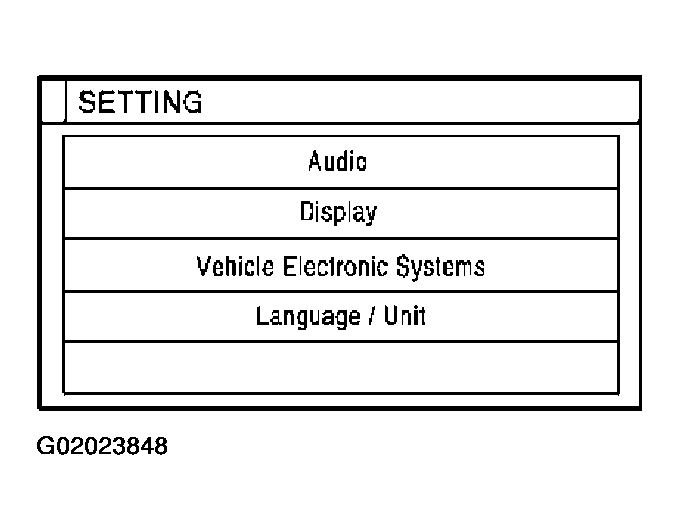

Fig 2: Selecting "VEHICLE ELCTRONIC SYSTEM"
Courtesy of NISSAN MOTOR CO., U.S.A.
Select a vehicle status shown on the display.

Adjustable vehicle status

Lift Steering Column When Exiting Vehicle

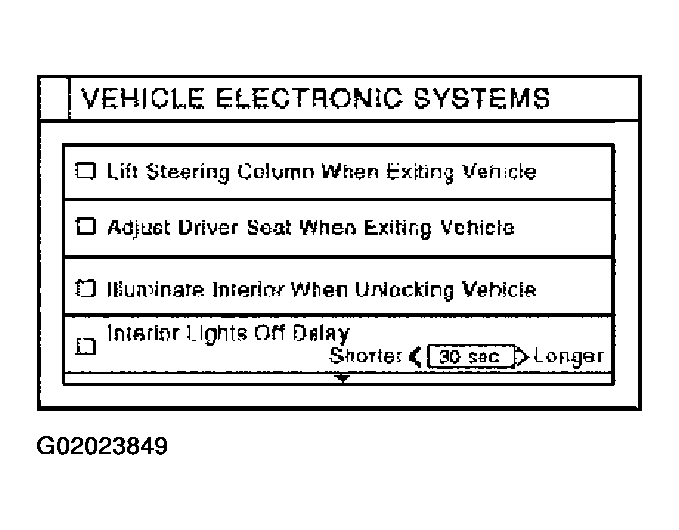

Fig 3: Identifying Adjustable Vehicle Status (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Adjust Driver Seat When Exiting Vehicle
Illuminate Interior When Unlocking Vehicle
Interior Lights Off Delay
Sensitivity of Automatic Headlights

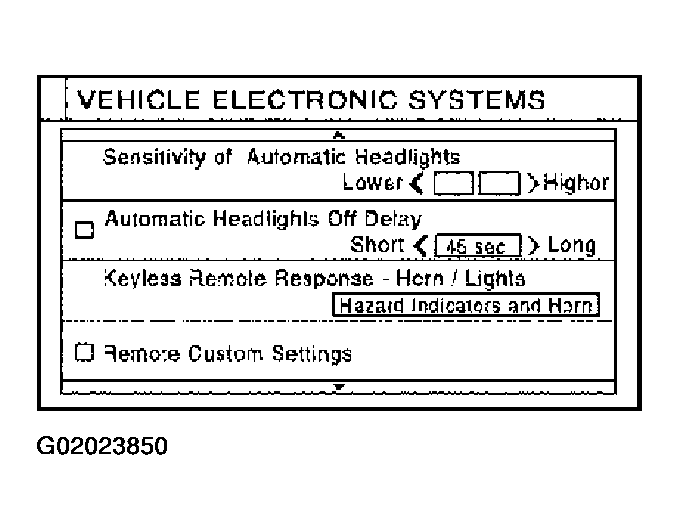

Fig 4: Identifying Adjustable Vehicle Status (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Automatic Headlights Off Delay
Key Remote Response - Horn/Lights
Remote Custom Settings
Return All Settings to Default

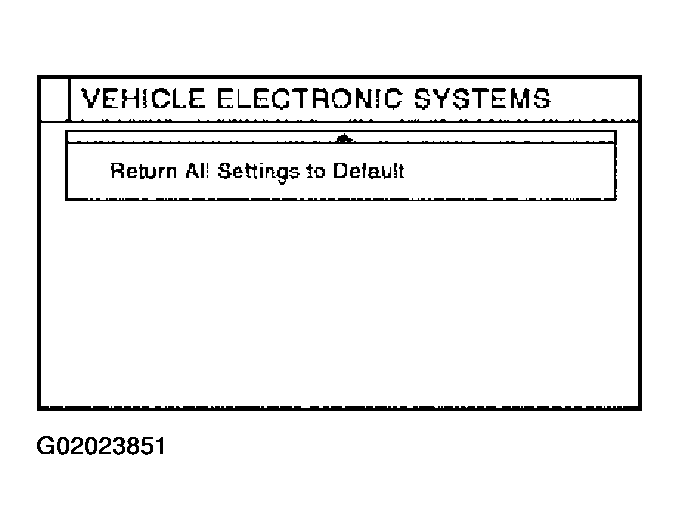

Fig 5: Returning All Settings To Default
Courtesy of NISSAN MOTOR CO., U.S.A.

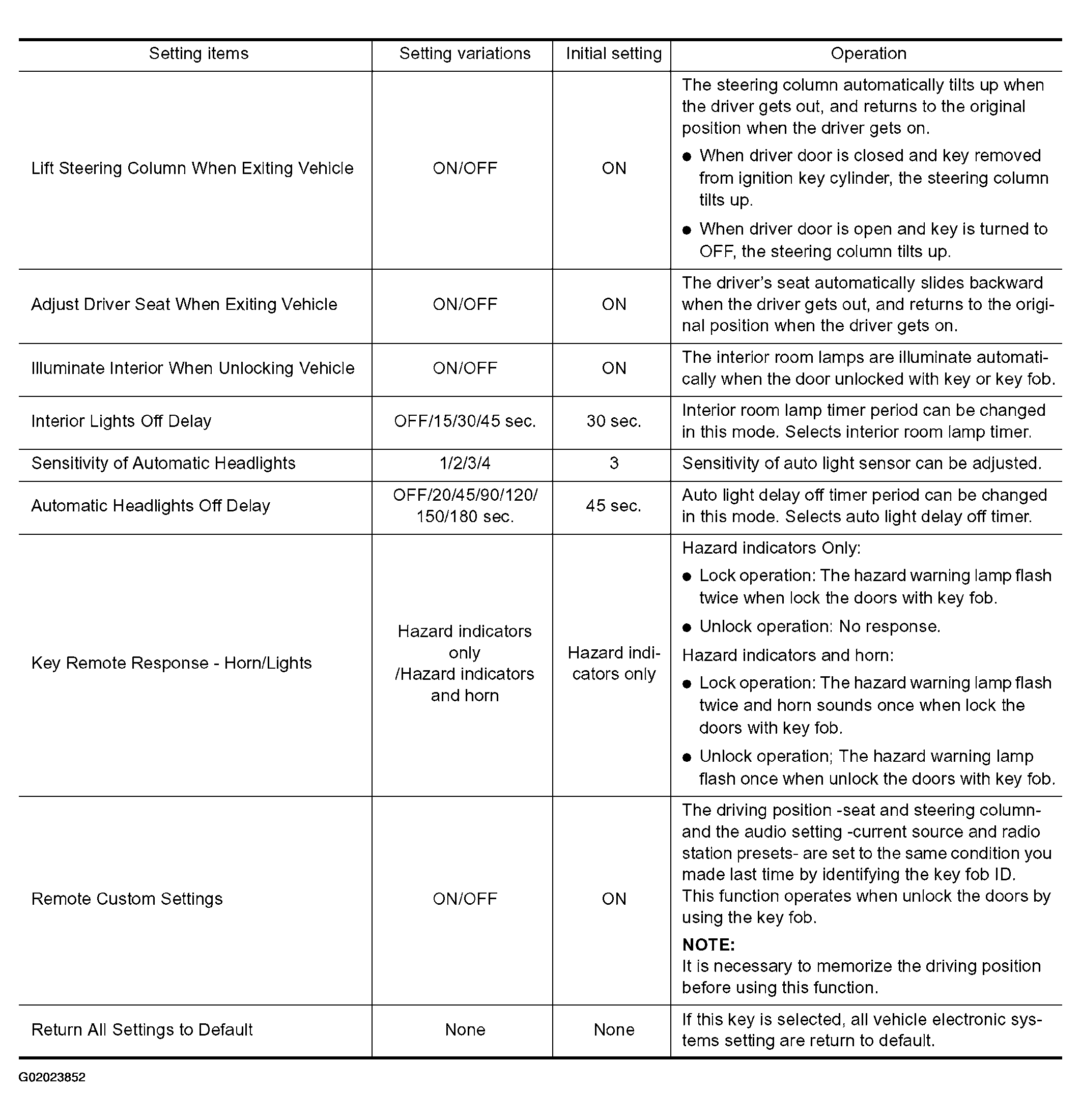

Fig 6: Identifying Adjustable Vehicle Status

Courtesy of NISSAN MOTOR CO., U.S.A.
