Warning Indications

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

When combination meter receives warning signal from some control units or sensors, then combination meter warning lamp is illuminated. Then combination meter sends warning signal to AV control unit to display warning indications on the screen.

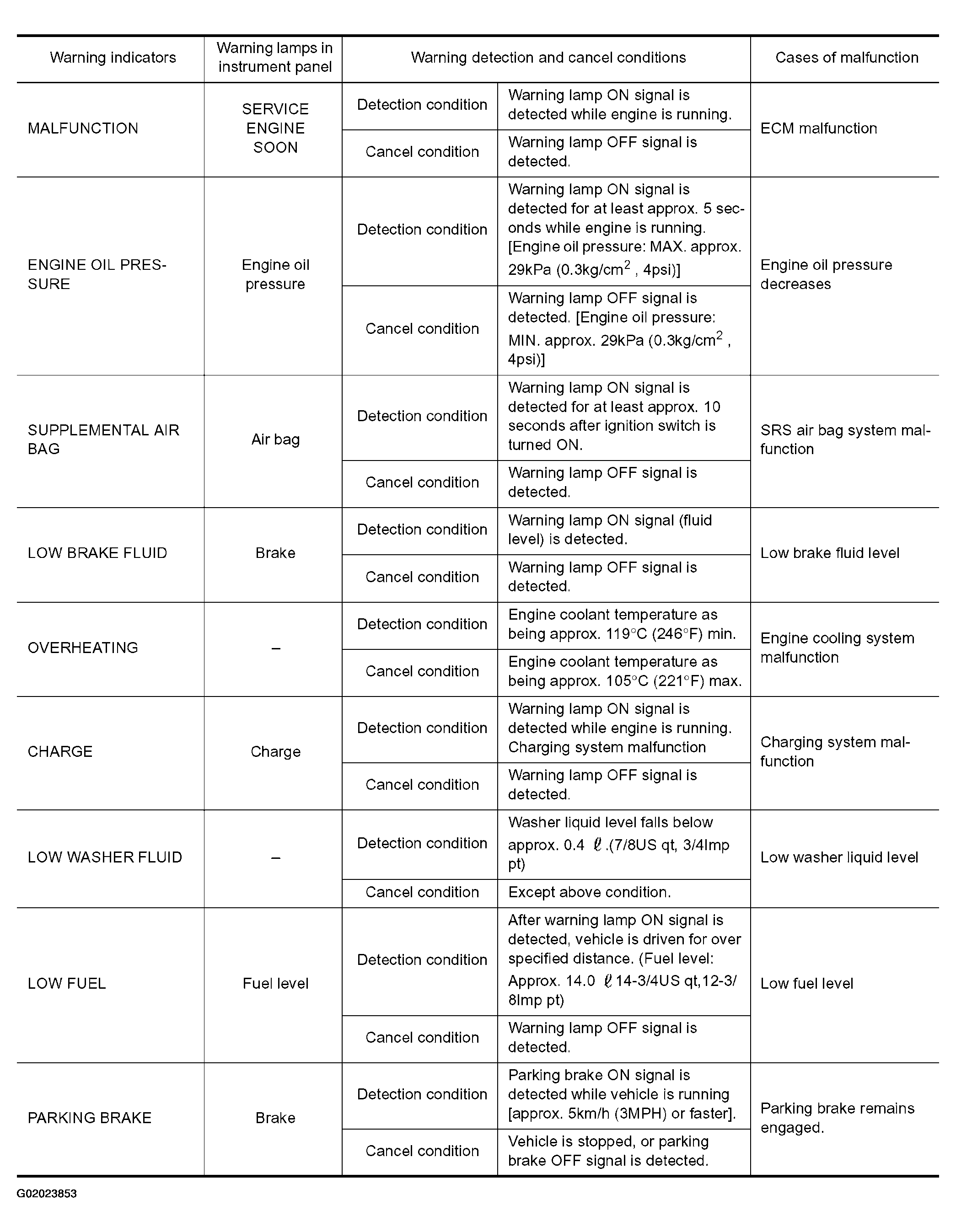

Fig 1: Identifing Warning Indications (1 Of 2)
G02023853Courtesy of NISSAN MOTOR CO., U.S.A.

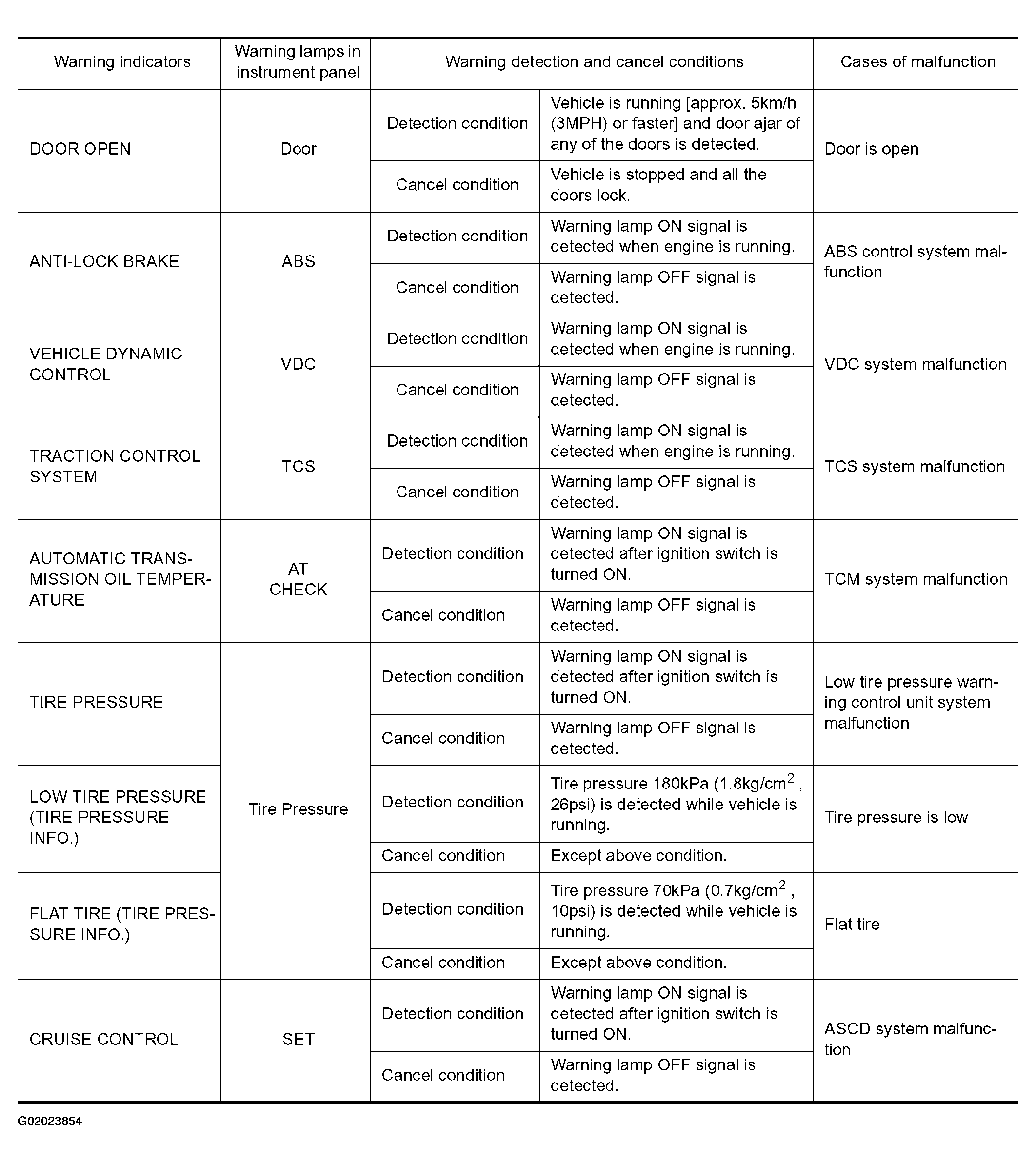

Fig 2: Identifying Warning Indications (2 Of 2)
G02023854Courtesy of NISSAN MOTOR CO., U.S.A.
