Manual Transaxle RS6F51H
>>
Description
>>
Cross-sectional View
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Cross-sectional View: Notes

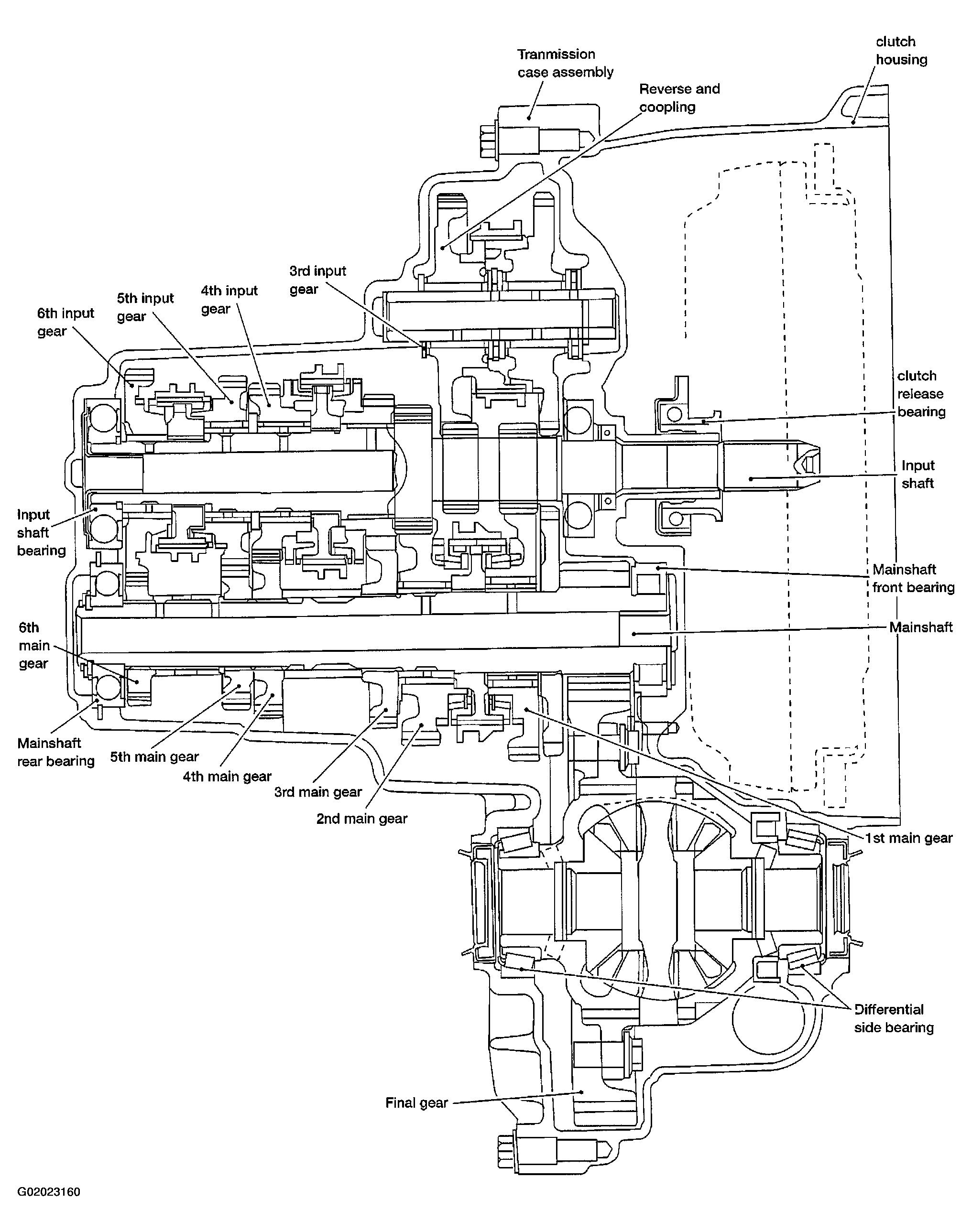

Fig 1: Cross-Sectional View Of RS6F51H Manual Transmission
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
