Back-Up Lamp Switch
Check continuity.

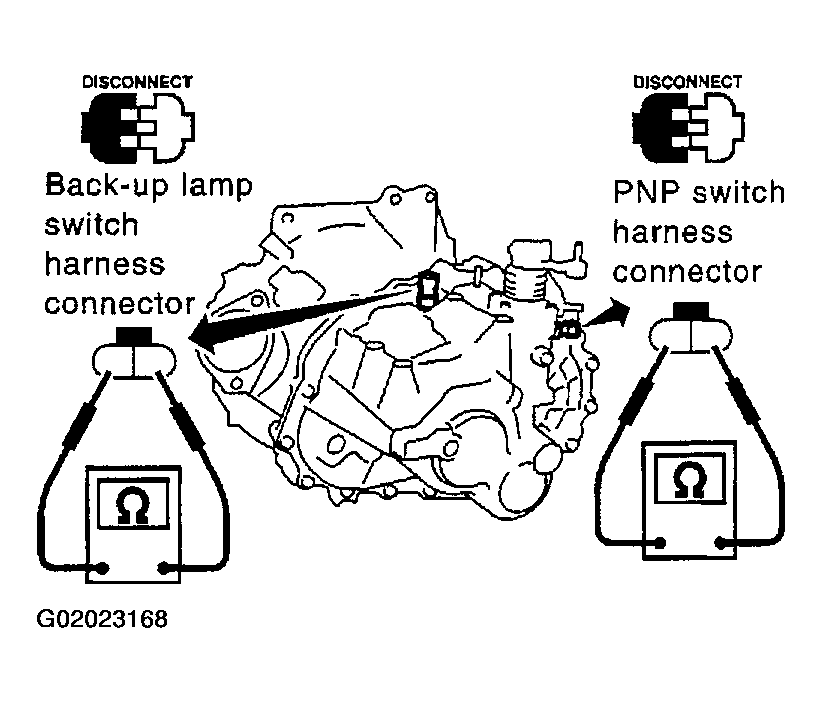

Fig 1: Testing Back-Up Lamp & PNP Switches
Courtesy of NISSAN MOTOR CO., U.S.A.

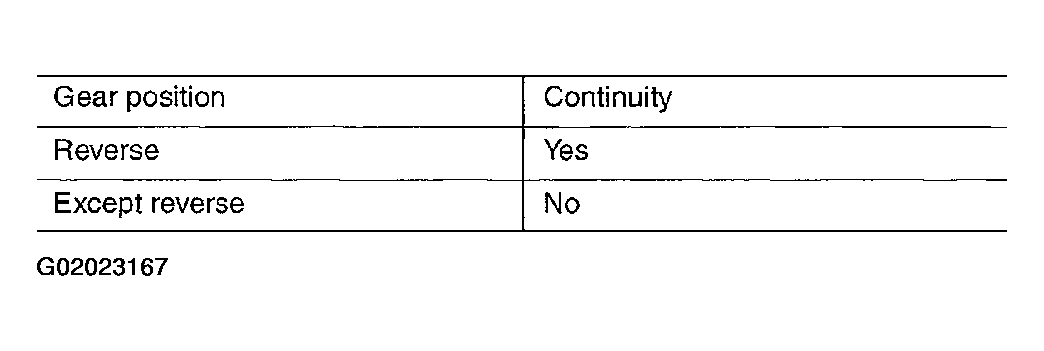

Fig 2: Back-Up Lamp Switch Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
