Daytime Light Control Unit Inspection Table
WARNING:
This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

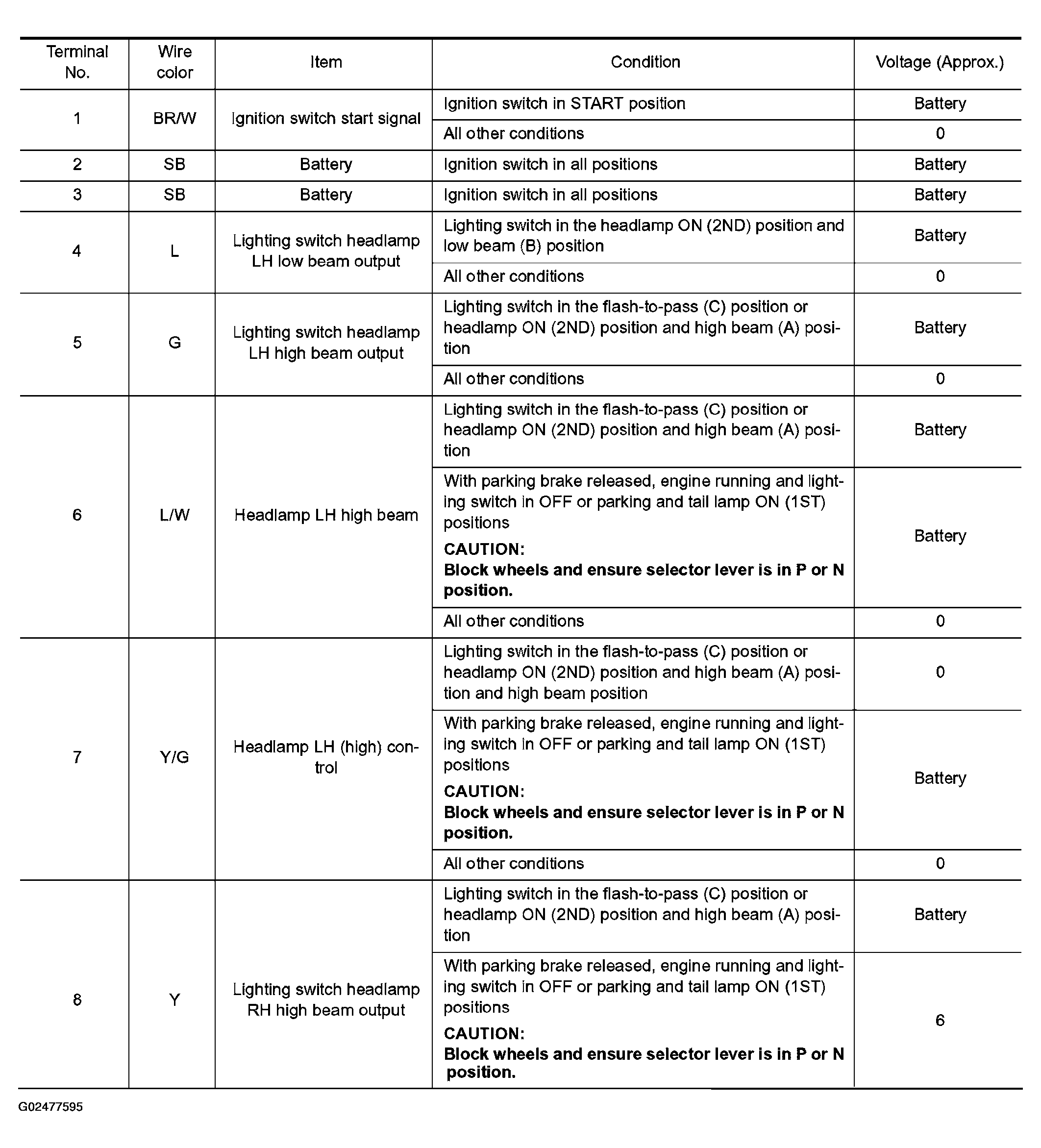

Fig 1: Daytime Light Control Unit Inspection Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
