Combination Meter Self-Diagnosis Mode Functions

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

To interpret Combination Meter Self-Diagnosis Mode functions, refer to the following table.

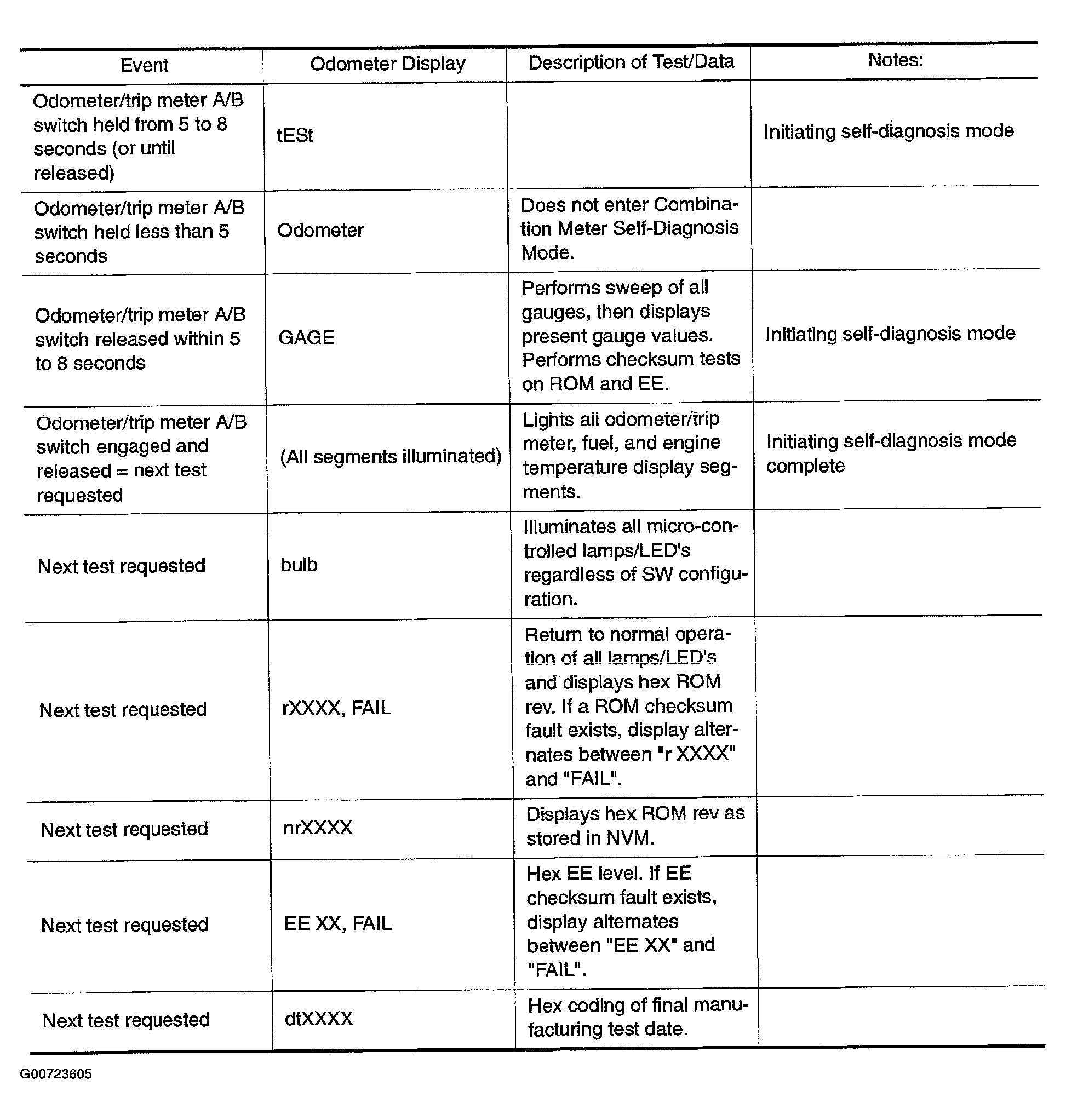

Fig 1: Combination Meter Self-Diagnosis Mode Functions (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

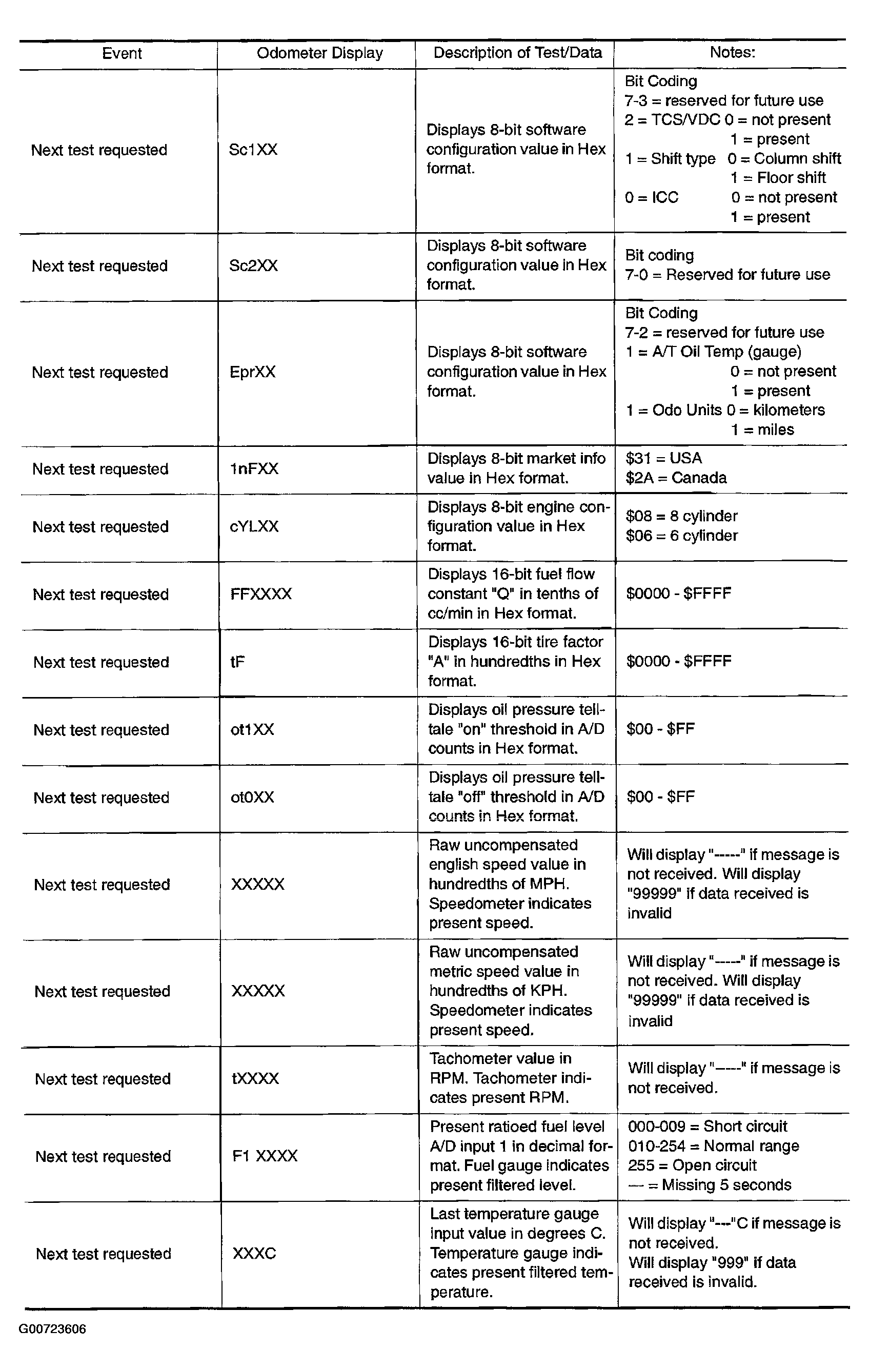

Fig 2: Combination Meter Self-Diagnosis Mode Functions (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

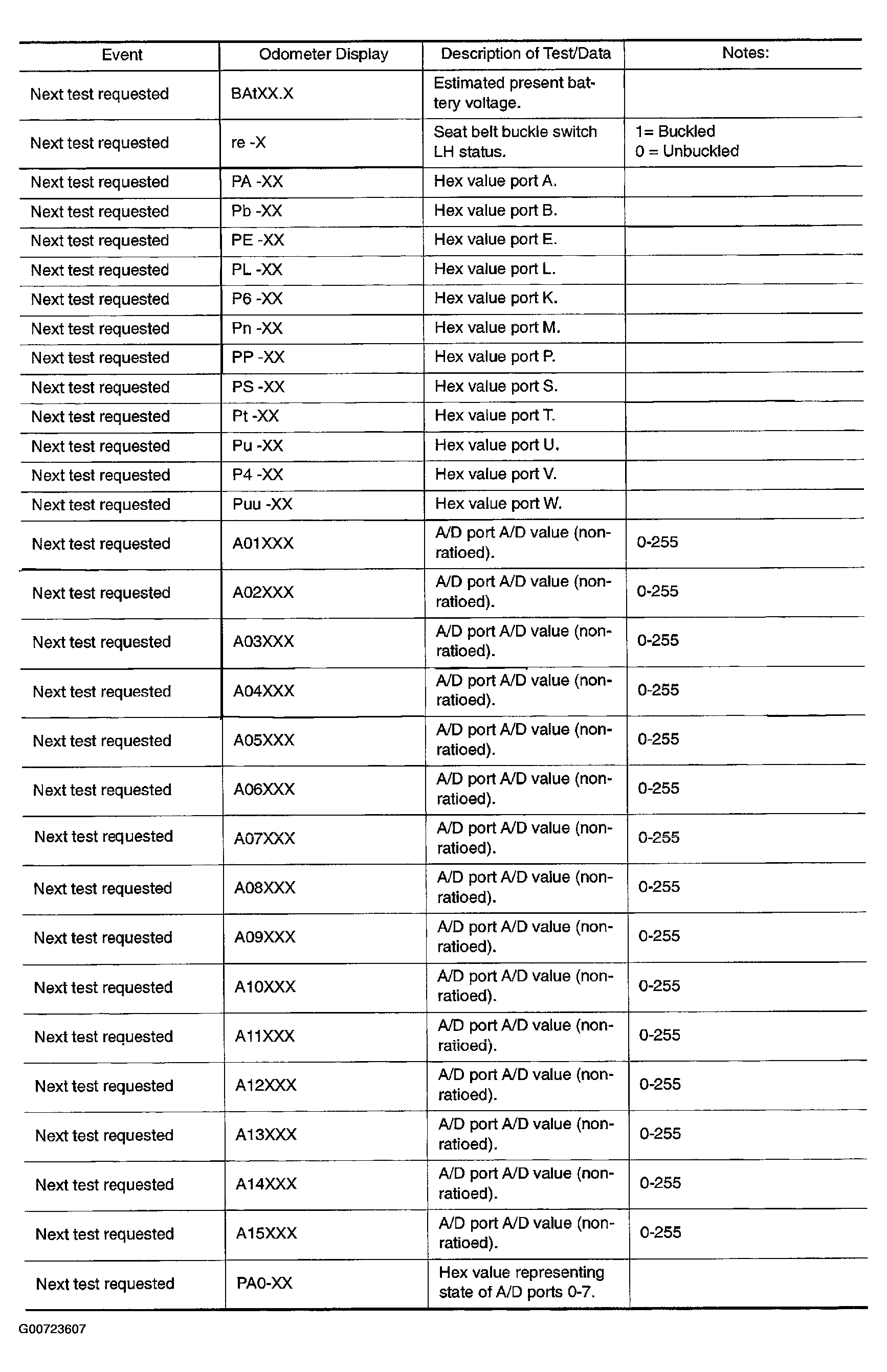

Fig 3: Combination Meter Self-Diagnosis Mode Functions (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

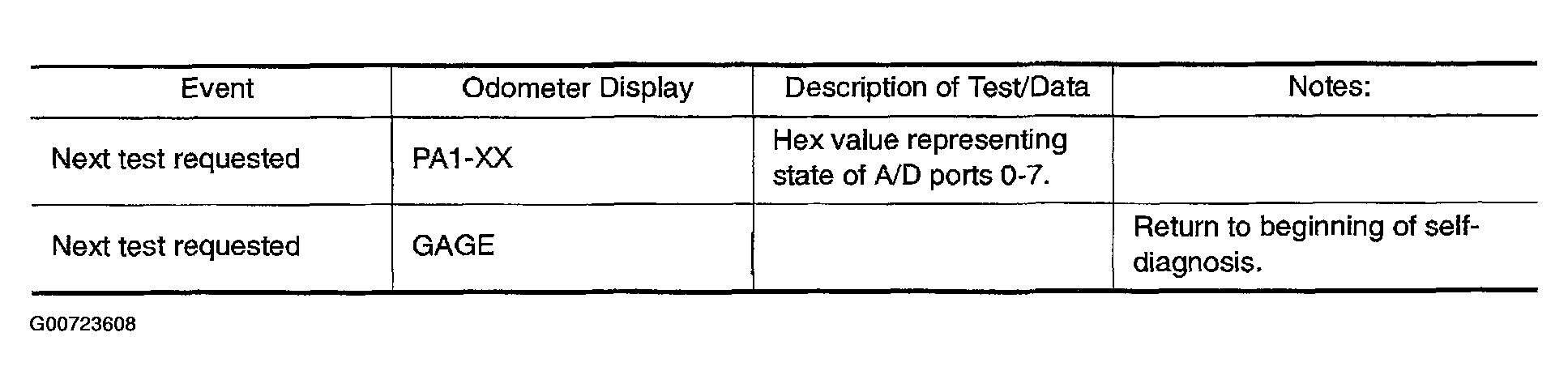

Fig 4: Combination Meter Self-Diagnosis Mode Functions (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
