Wiring Diagram - AT - BA/FTS
WARNING:
This page is about a different variant/trim than selected.

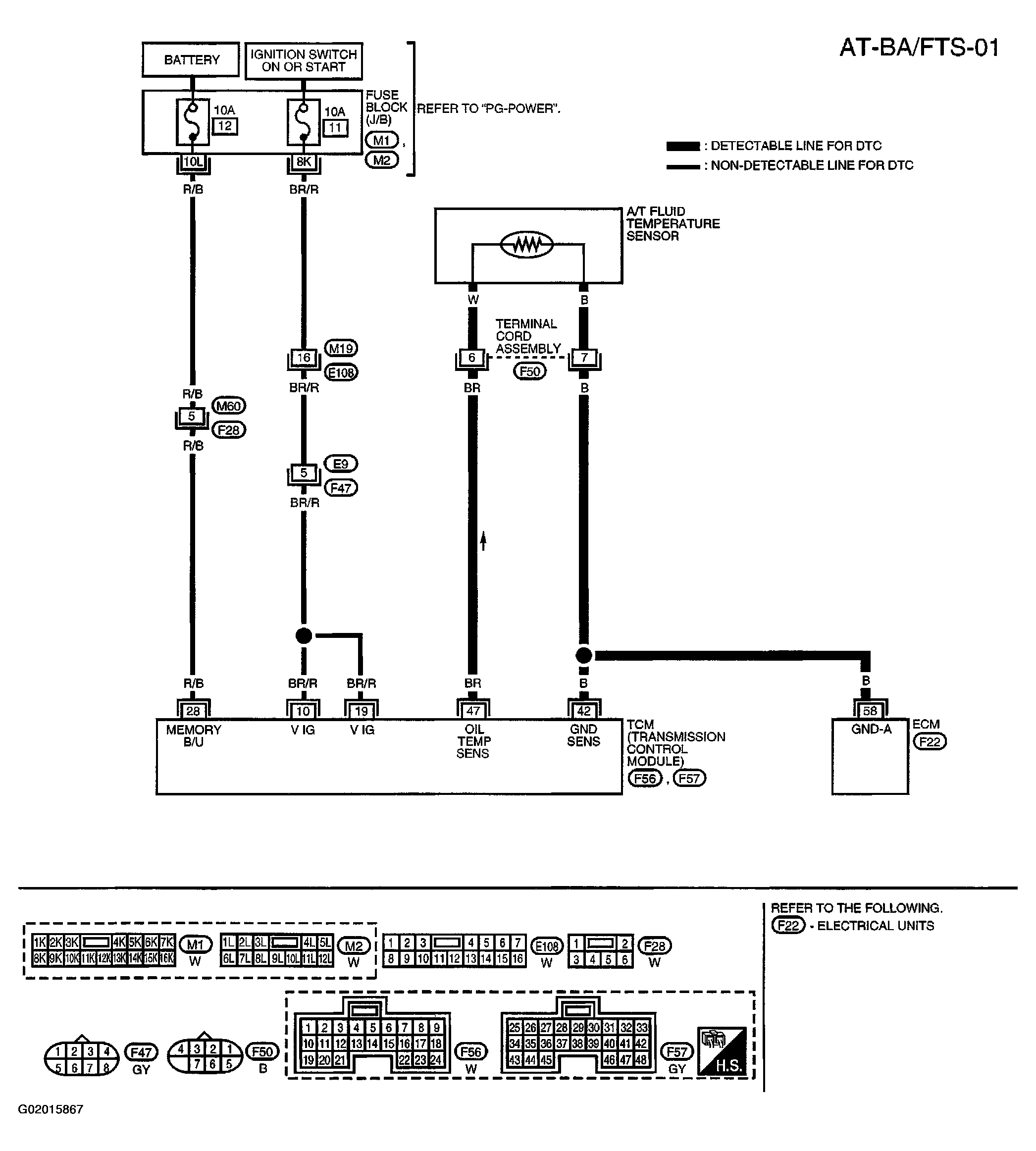

Fig 1: Battery Fluid Temperature Sensor Wiring Diagram & Identifying Connectors (Automatic Transaxle)
Courtesy of NISSAN MOTOR CO., U.S.A.

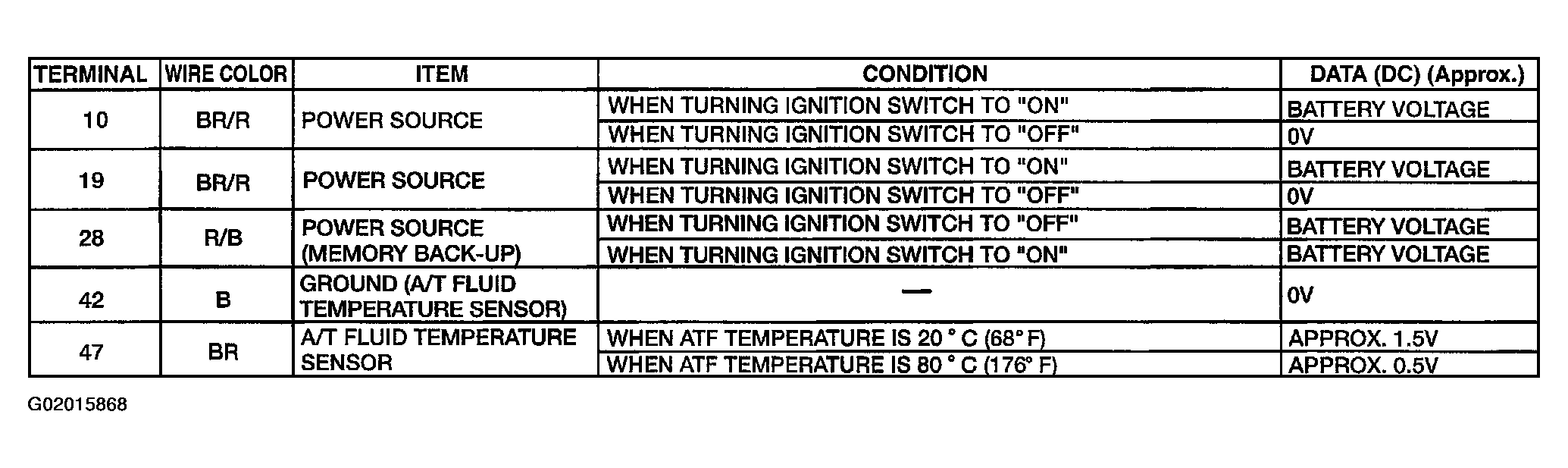

Fig 2: Transmission Control Module Terminals Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
