Wiring Diagram - AT - 1ST
WARNING:
This page is about a different variant/trim than selected.

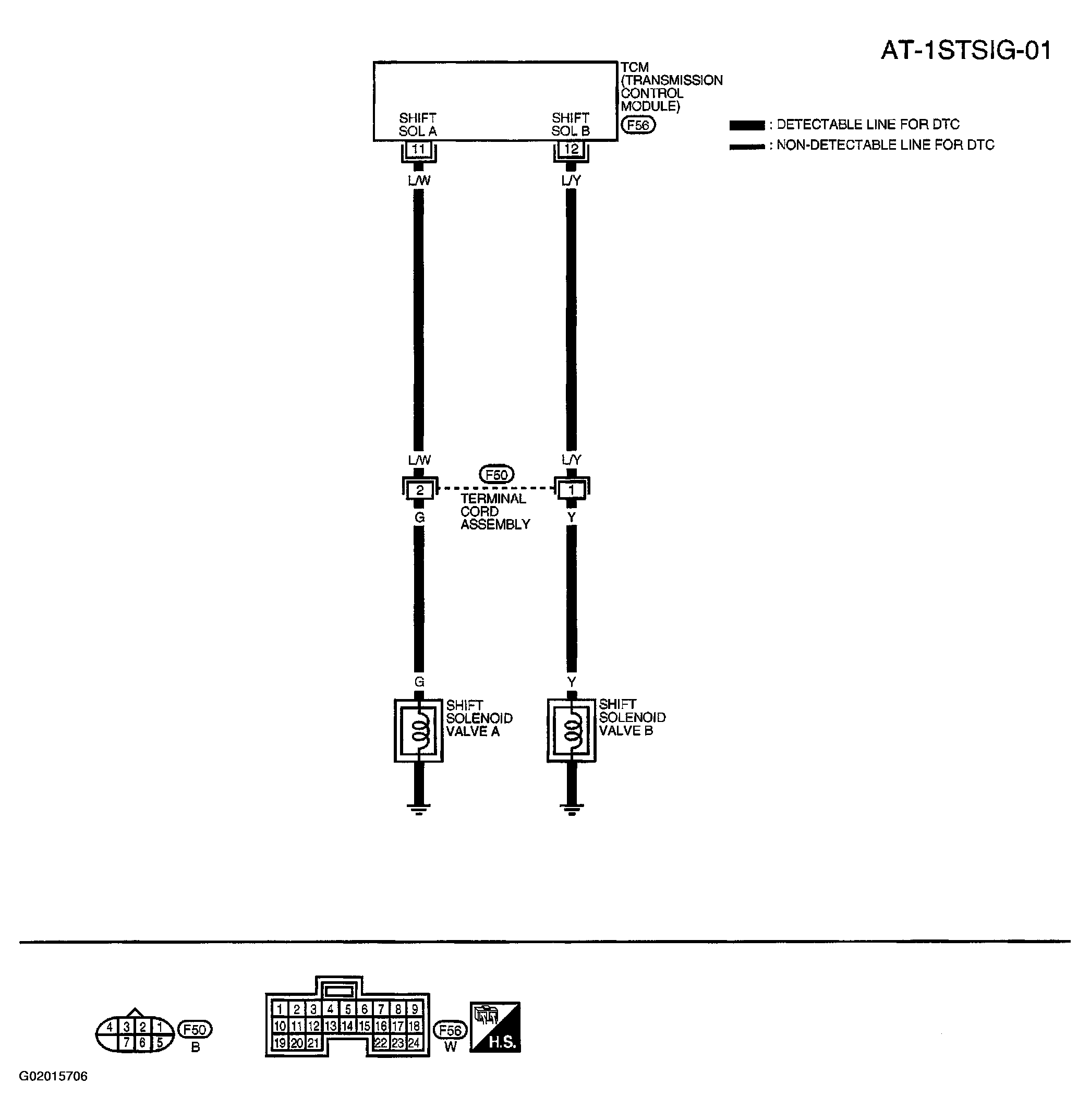

Fig 1: 1st Gear Function Wiring Diagram & Identifying Connectors (Automatic Transaxle)
Courtesy of NISSAN MOTOR CO., U.S.A.

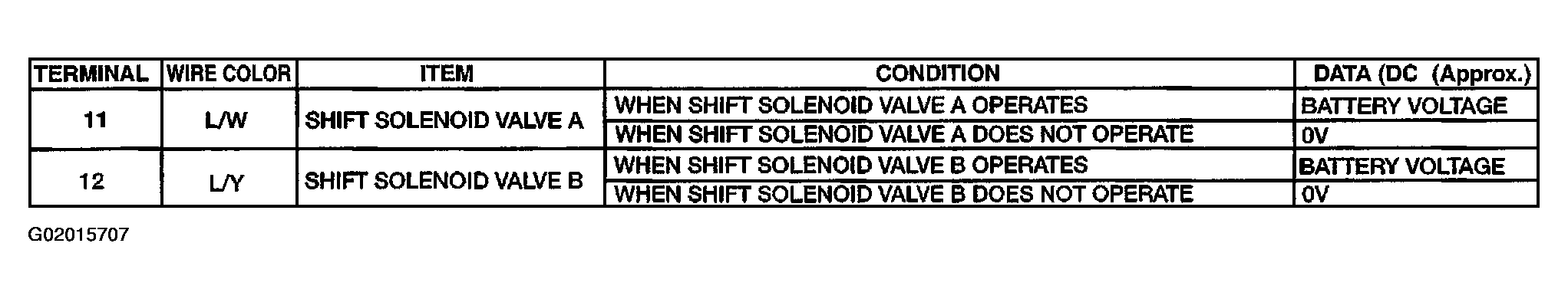

Fig 2: TCM Terminals Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
