Diagnostic Trouble Code (DTC) Confirmation Procedure

WARNING: This page is about a different variant/trim than selected.

CAUTION: Always drive vehicle at a safe speed.

NOTE: If DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

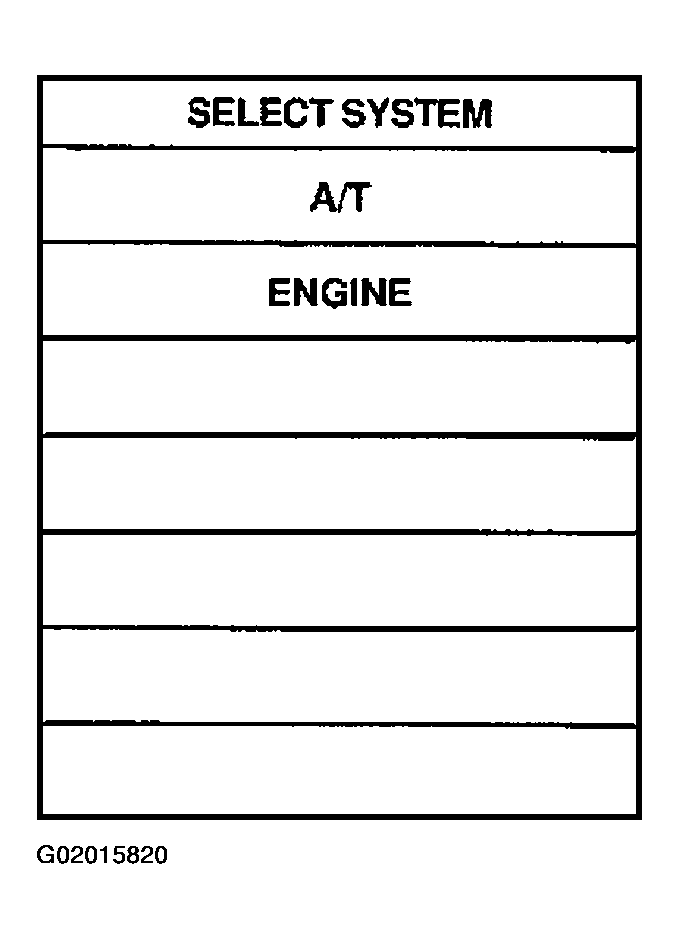

Fig 1: DTC Confirmation Procedure With CONSULT -II (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

With CONSULT-II

Turn ignition switch ON and select DATA MONITOR mode for ENGINE with CONSULT-II.
Start engine.
Drive vehicle in D position and allow the transmission to shift 1 --> 2 --> 3 ( GEAR).

With GST

Follow the procedure With CONSULT-II.

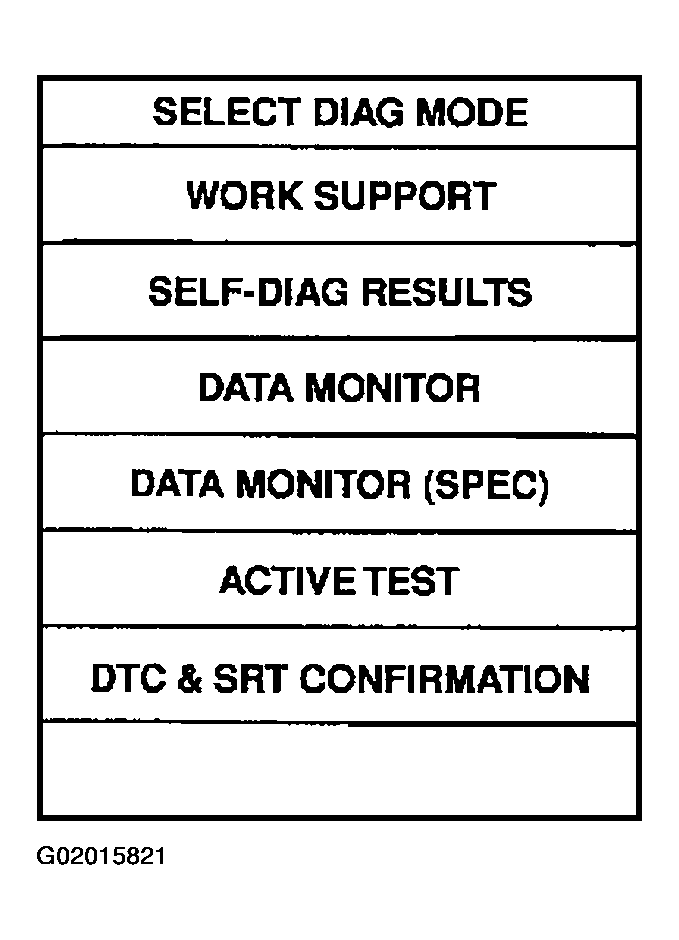

Fig 2: DTC Confirmation Procedure With CONSULT -II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
