DTC P1760: Overrun Clutch Solenoid Valve: Description: Notes

WARNING: This page is about a different variant/trim than selected.

The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the inhibitor switch, overdrive control switch, vehicle speed and throttle position sensors. The overrun clutch operation will then be controlled.

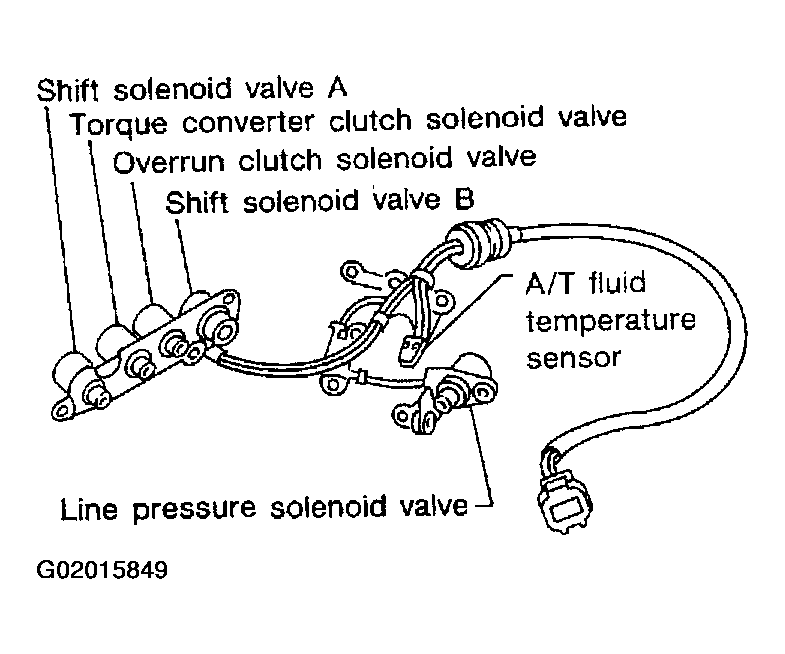

Fig 1: Identifying Overrun Clutch Solenoid Valve Components
G02015849Courtesy of NISSAN MOTOR CO., U.S.A.
