Testing Condition:

WARNING: This page is about a different variant/trim than selected.

Always drive vehicle on a level road to improve accuracy of test . After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

Turn ignition switch ON and select DATA MONITOR mode for ENGINE with CONSULT-II.

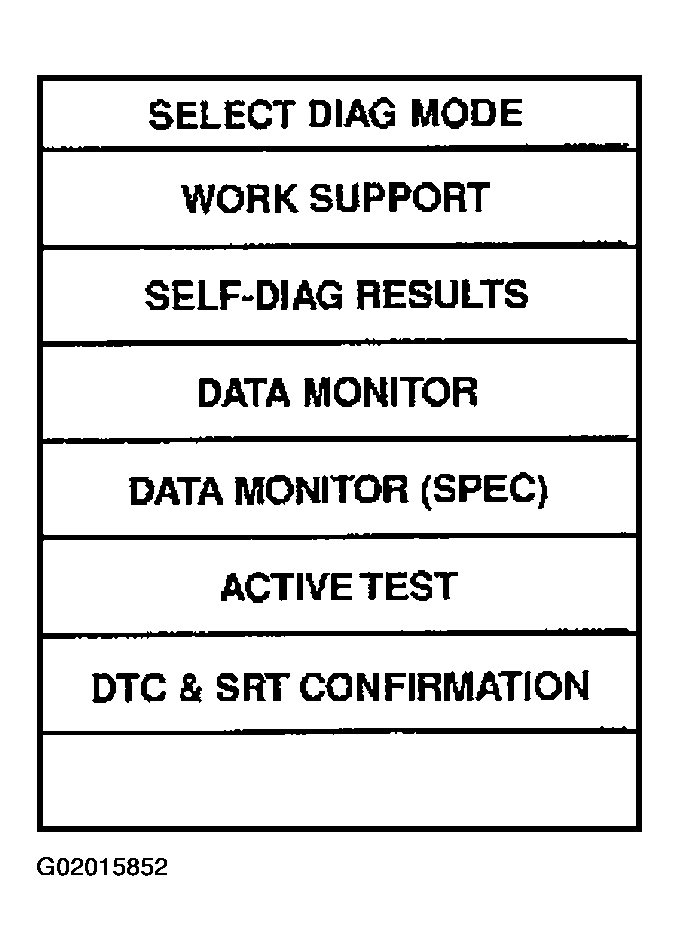

Fig 1: DTC Confirmation Procedure With CONSULT -II (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine.
Accelerate vehicle to a speed of more than 10 km/h (6 MPH) with D position (OD ON).
Release accelerator pedal completely with D position (OD OFF).

With GST

Follow the procedure With CONSULT-II.

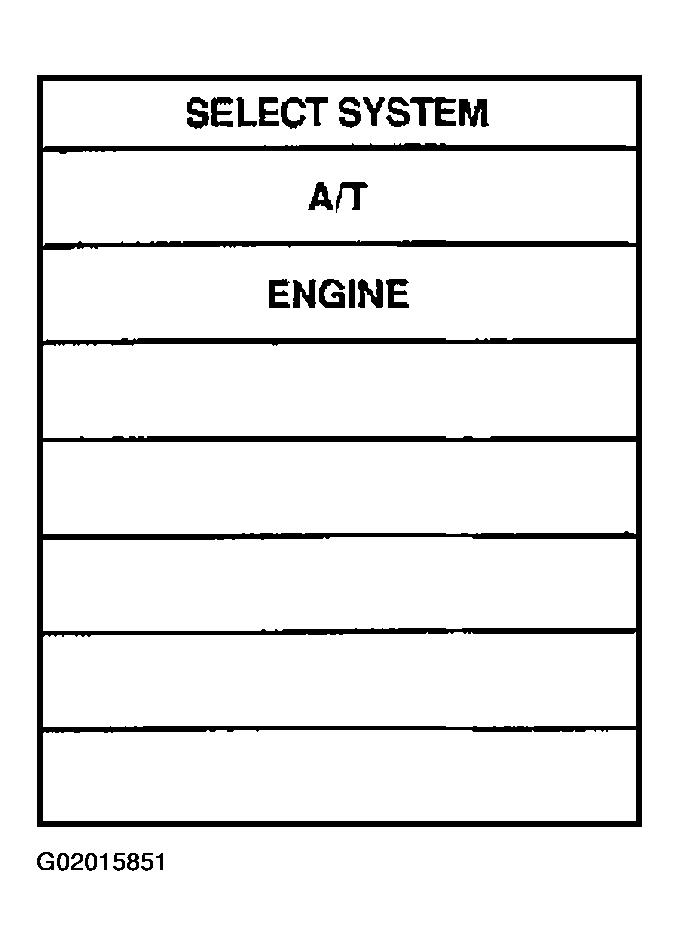

Fig 2: DTC Confirmation Procedure With CONSULT -II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
