Automatic Speed Control Device (ASCD): Schematic

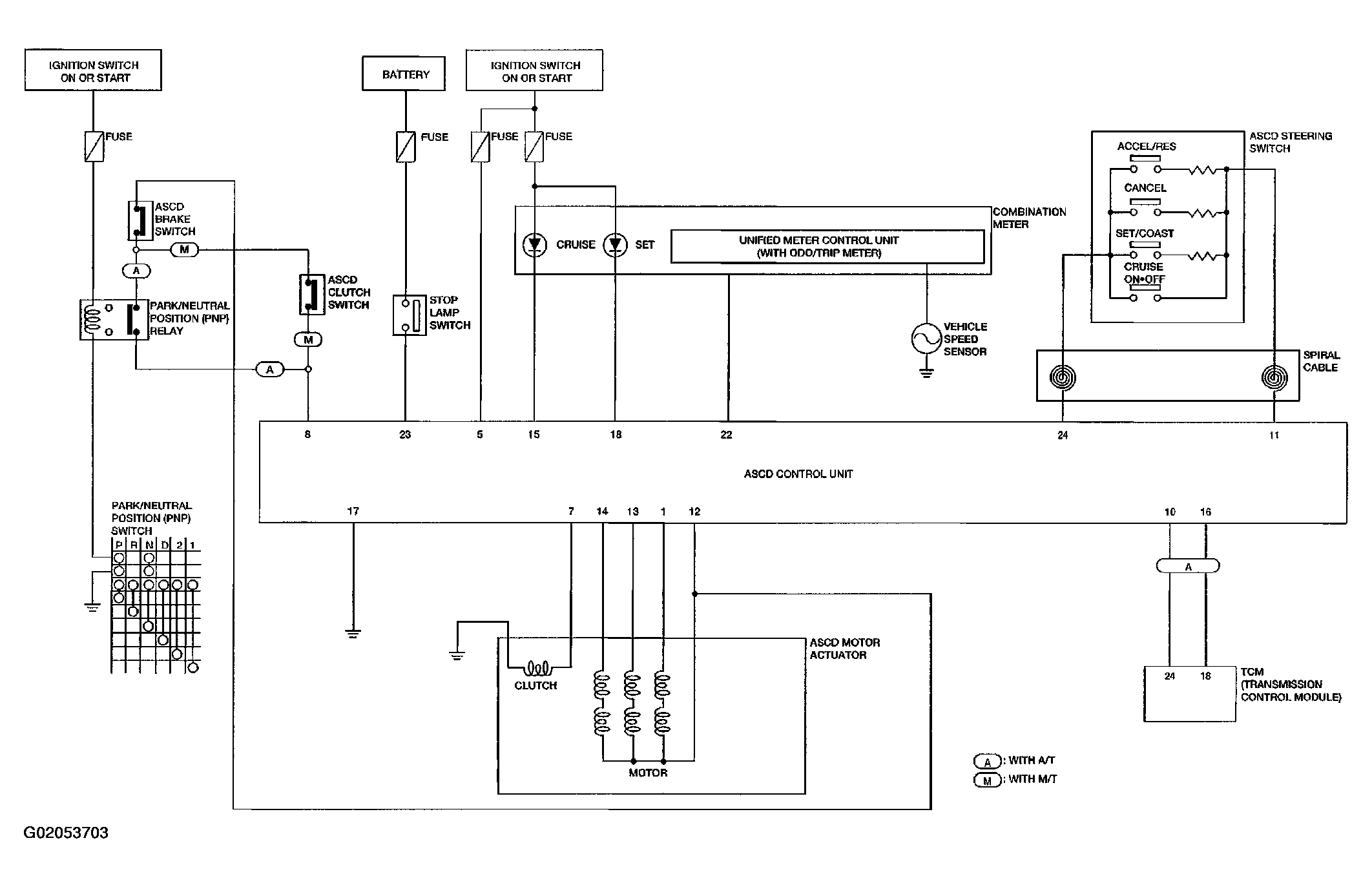

Fig 1: ASCD Schematic

G02053703

Courtesy of NISSAN MOTOR CO., U.S.A.
