Drive Shaft: Components

CAUTION:
  • Circular clips should be properly meshed with differential side gear (transaxle side) and with joint assembly (wheel side). Make sure they will not come out.
  • Be careful not to damage boots. Use suitable protector or cloth during removal and installation.

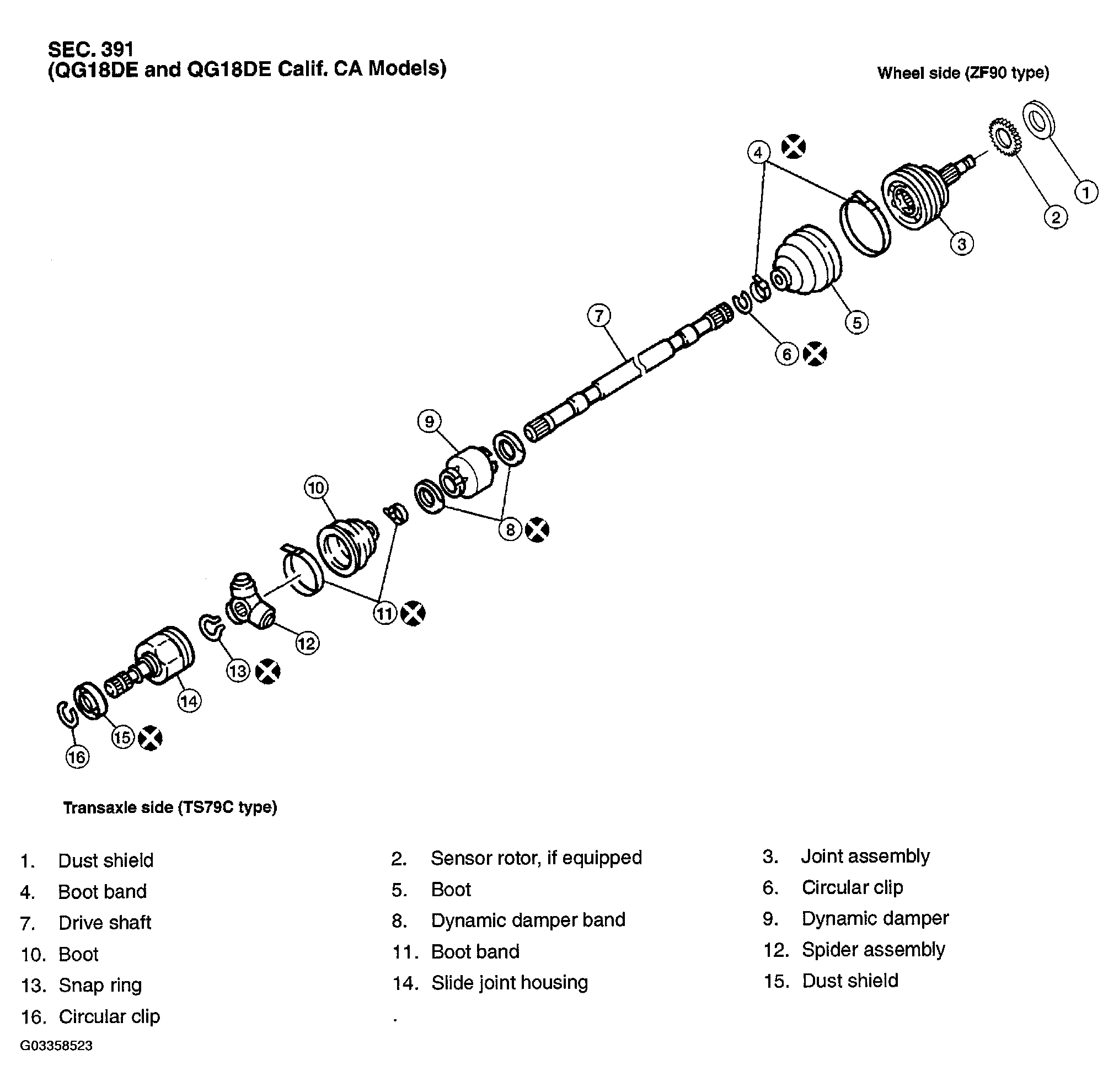

    Fig 1: Identifying Driveshaft Component (1 Of 3)
    G03358523Courtesy of NISSAN MOTOR CO., U.S.A.

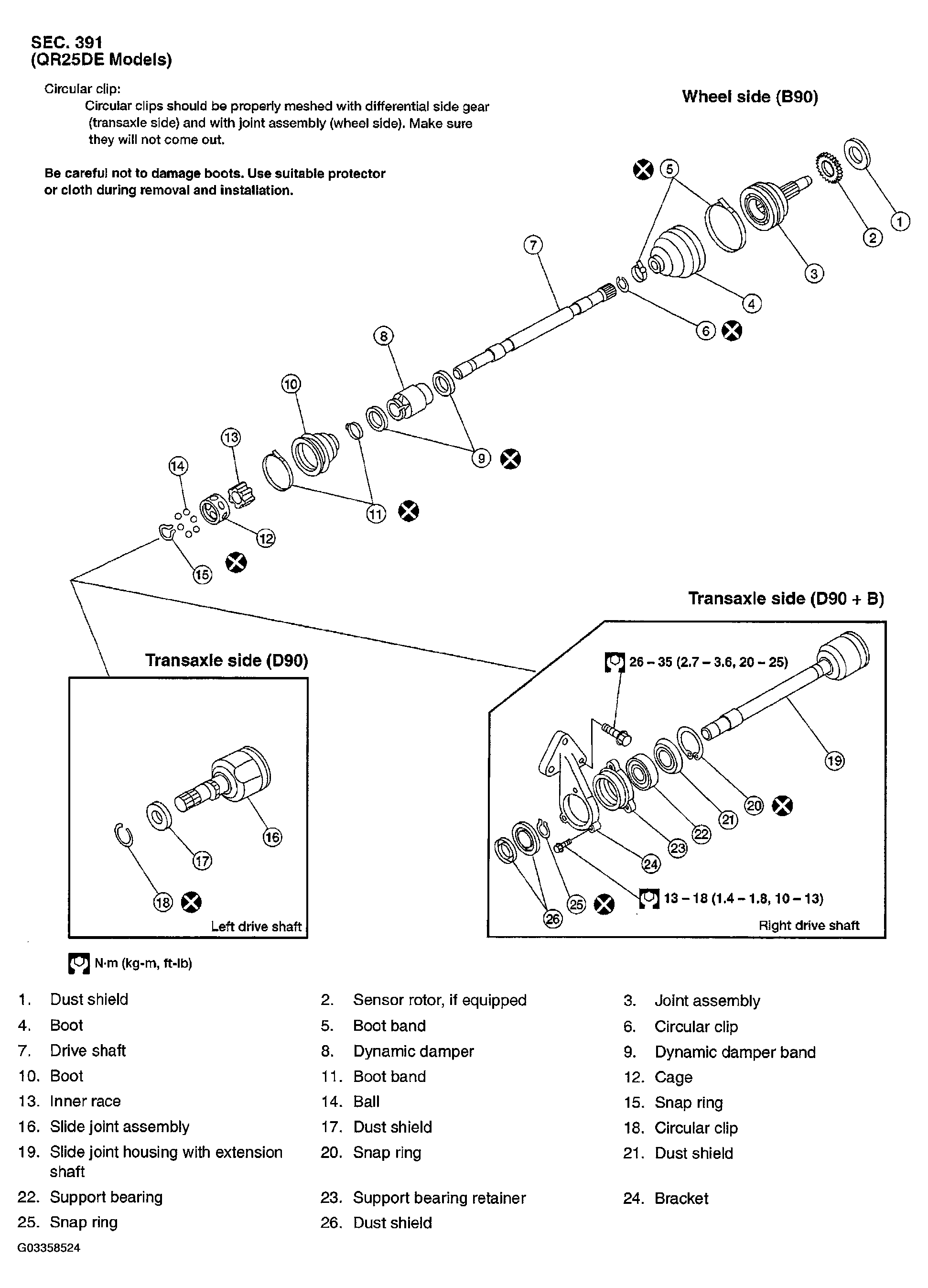

    Fig 2: Identifying Driveshaft Component (2 Of 3)
    G03358524Courtesy of NISSAN MOTOR CO., U.S.A.

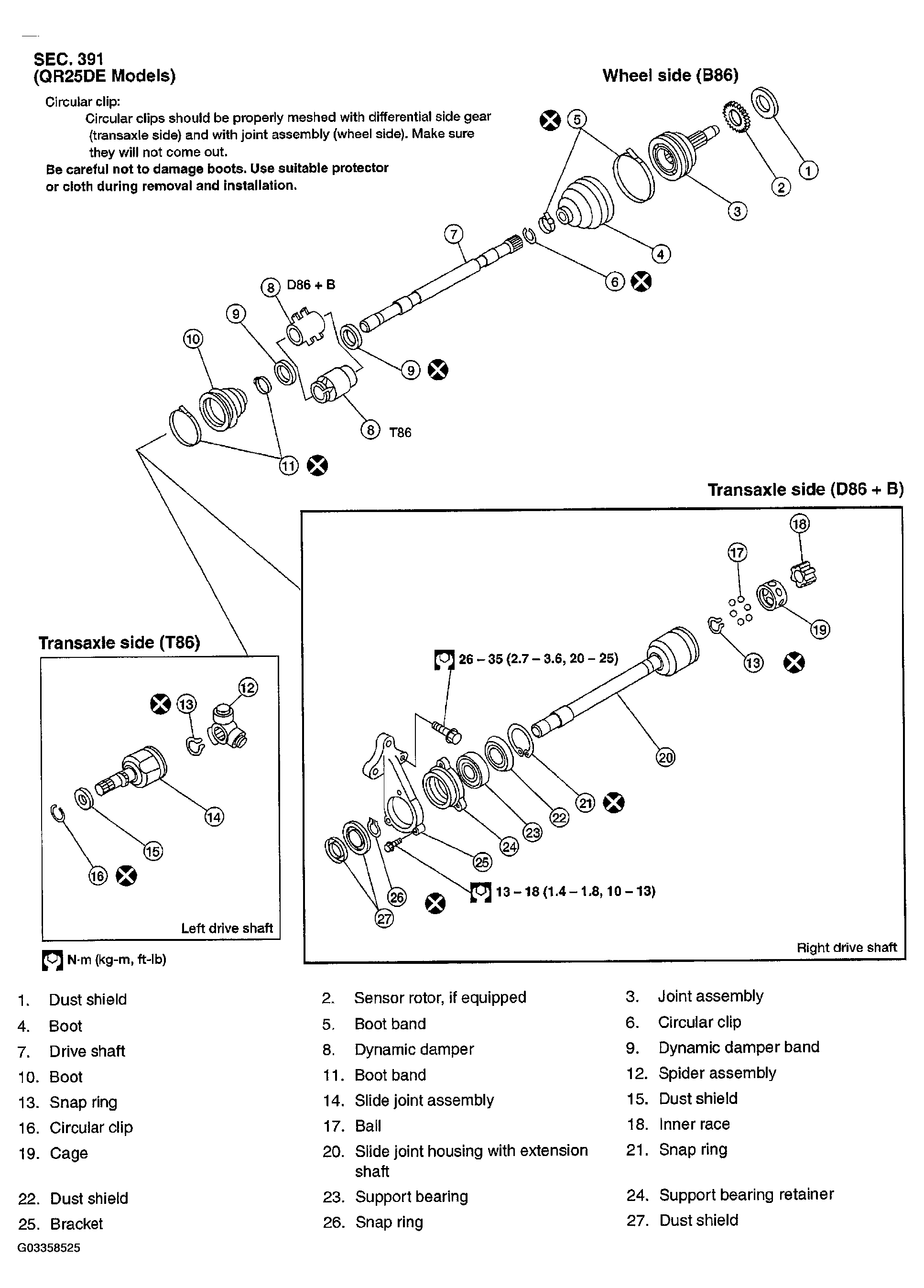

    Fig 3: Identifying Driveshaft Component (3 Of 3)
    G03358525Courtesy of NISSAN MOTOR CO., U.S.A.
