Wheel Hub And Knuckle: Components

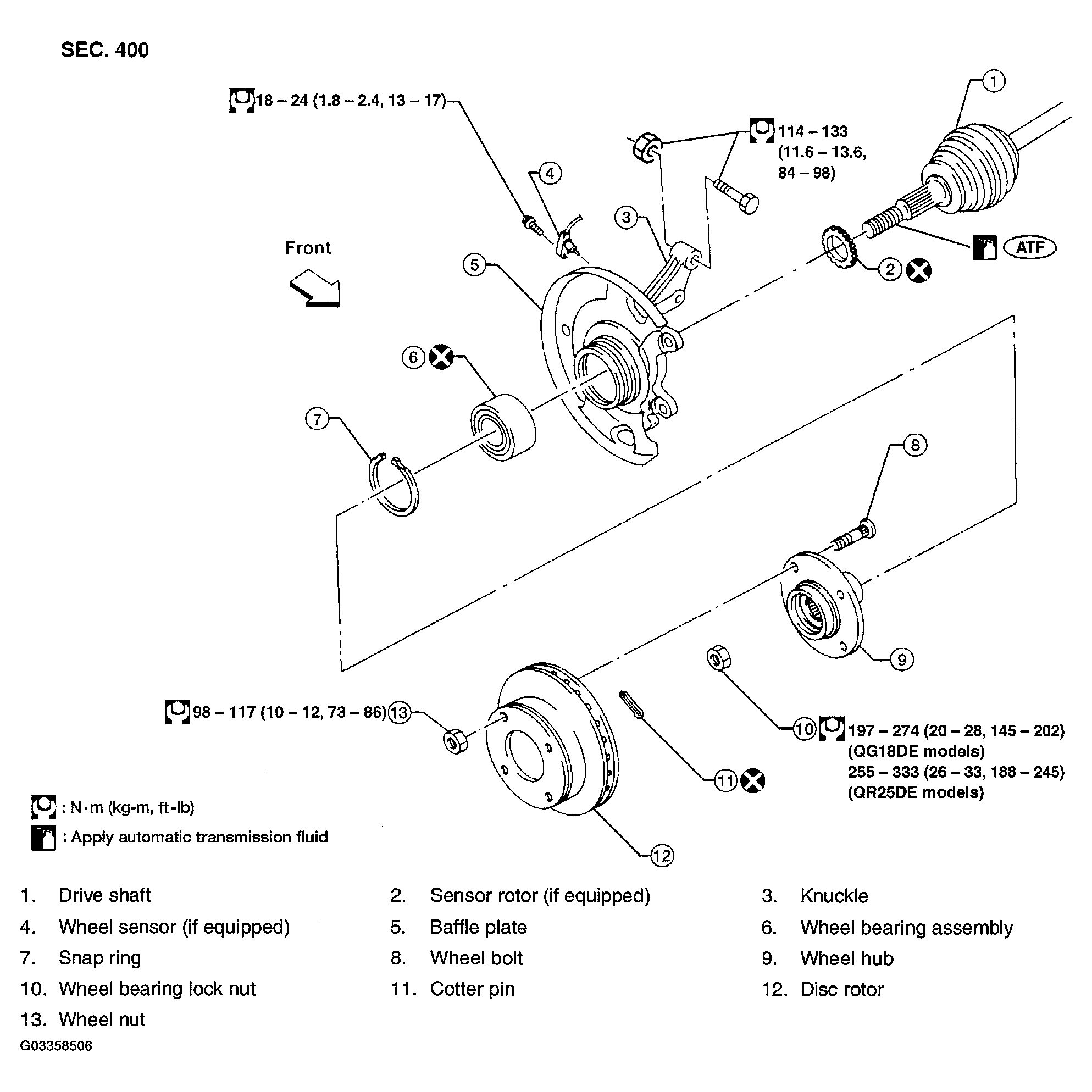

Fig 1: Identifying Wheel Hub And Knuckle Component
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
