Blower Motor: Components

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Front Blower Motor

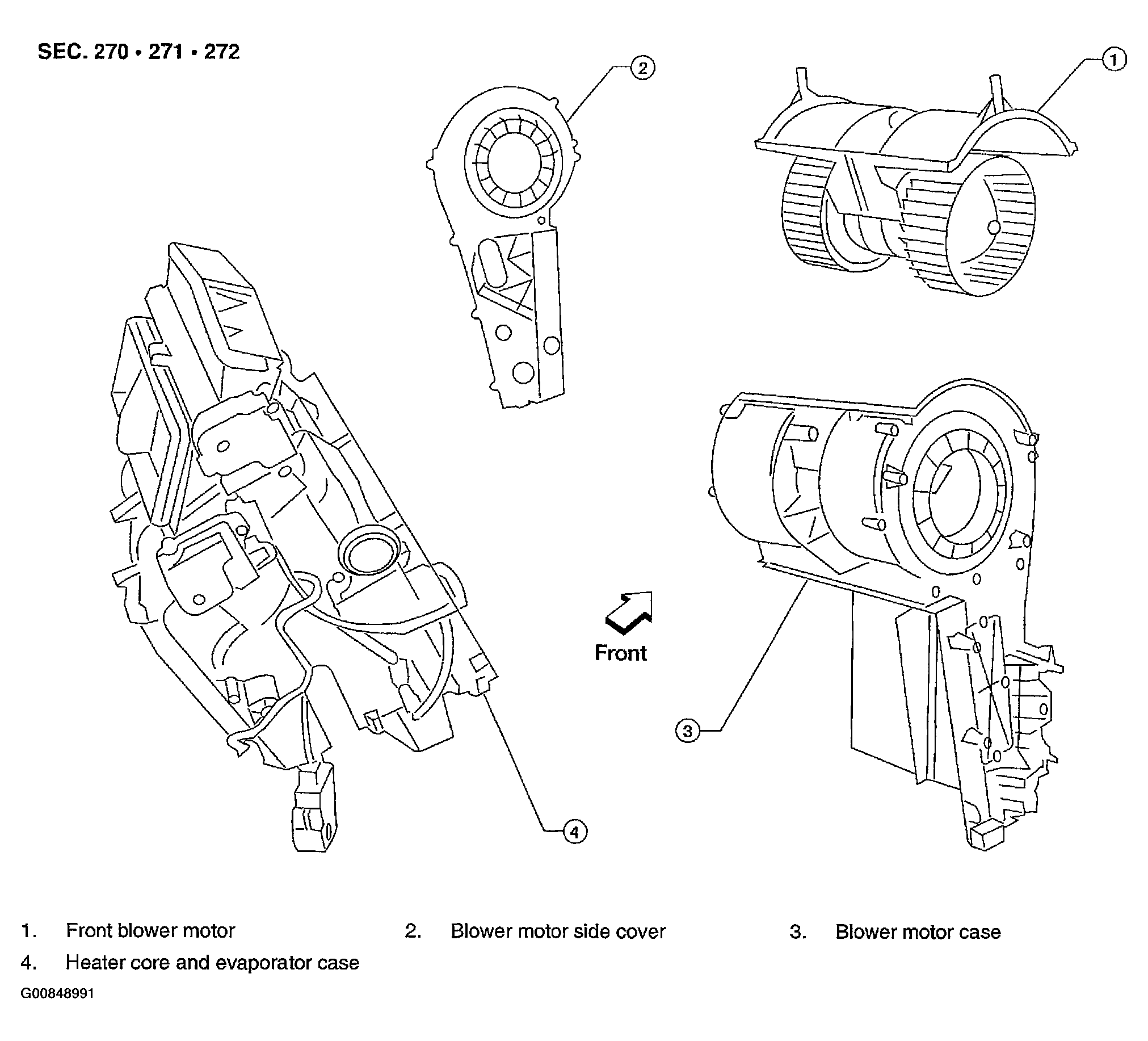

Fig 1: Identifying Front Blower Motor Components

Courtesy of NISSAN MOTOR CO., U.S.A.

Rear Blower Motor

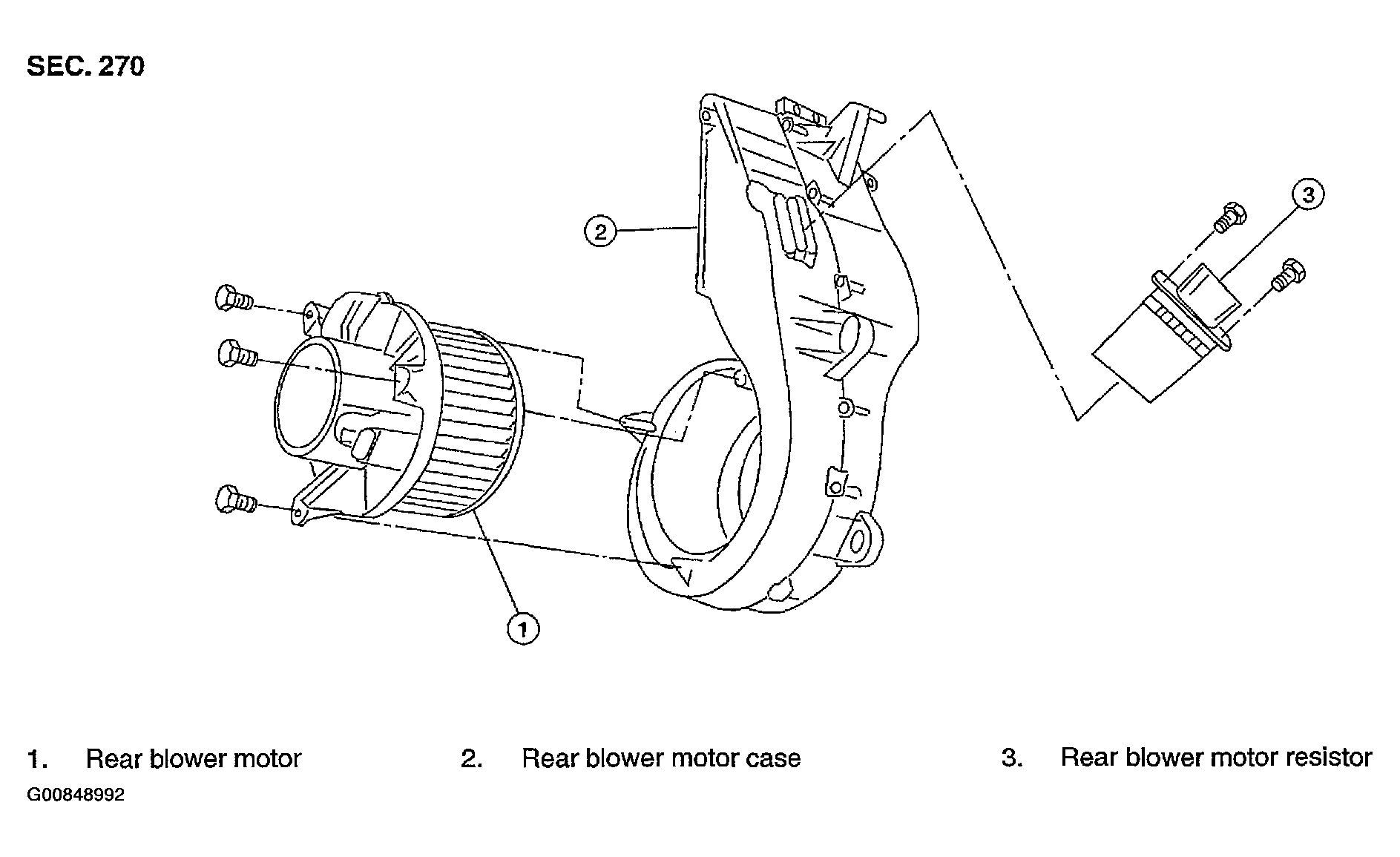

Fig 2: Identifying Rear Blower Motor Components

Courtesy of NISSAN MOTOR CO., U.S.A.
