Security Indicator Lamp Check

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

SECURITY INDICATOR LAMP ACTIVE TEST
With CONSULT-II

Check "THEFT IND" in "ACTIVE TEST" mode with CONSULT-II.

Perform operation shown on display indicator lamp should illuminate.

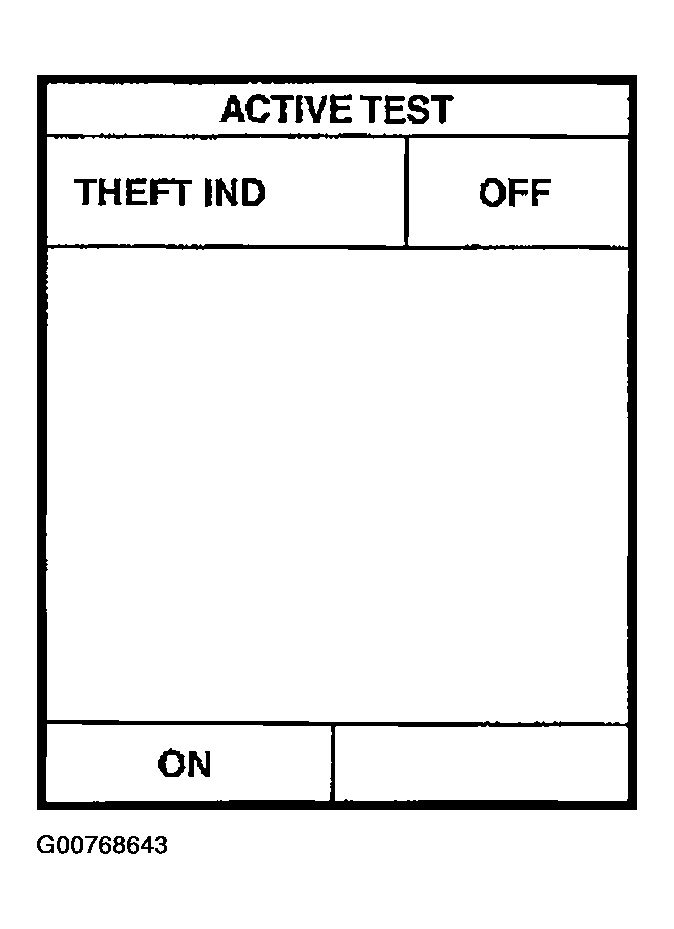

Fig 1: Displaying ACTIVE TEST
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Disconnect BCM harness connector M34.
2. Check voltage between BCM harness connector M34 terminal 23 and ground.
  23 (G/O) - Ground: Battery voltage
OK or NG
1. OK: Security indicator lamp is OK.
2. NG: GO TO 2.

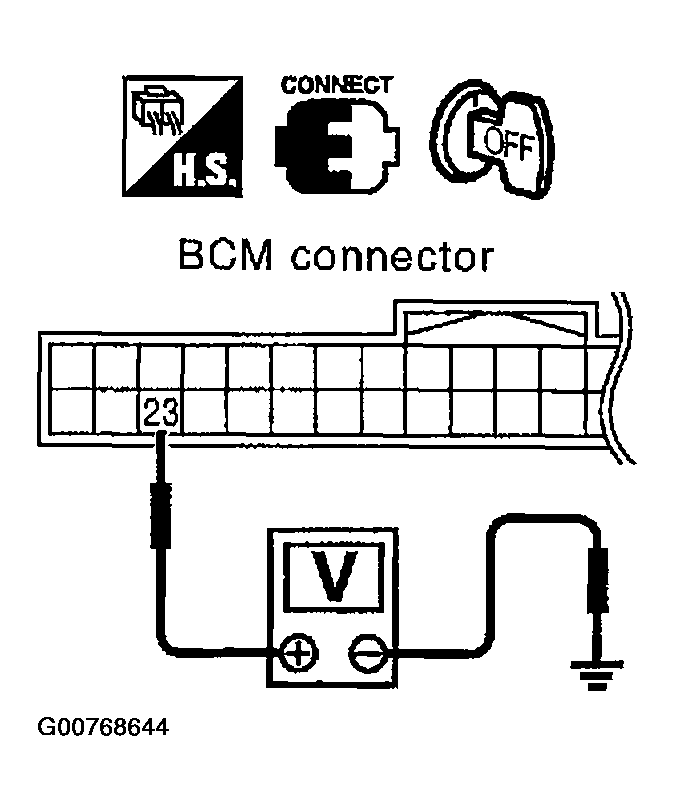

  Fig 2: Checking Voltage Between BCM Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK POWER SUPPLY CIRCUIT FOR SECURITY INDICATOR LAMP
1. Disconnect security indicator lamp connector.
2. Check voltage between combination meter (security indicator lamp) connector M25 terminal 21 and ground.
  21 (Y/R) - Ground: Battery voltage
OK or NG
1. OK: Check the following.
  - Harness for open or short between combination meter (security indicator lamp) and BCM.
  - Indicator lamp condition
2. NG: Check the following
  - 10A fuse [No. 21, located in fuse block (J/B)]
  - Harness for open or short between security indicator lamp and fuse

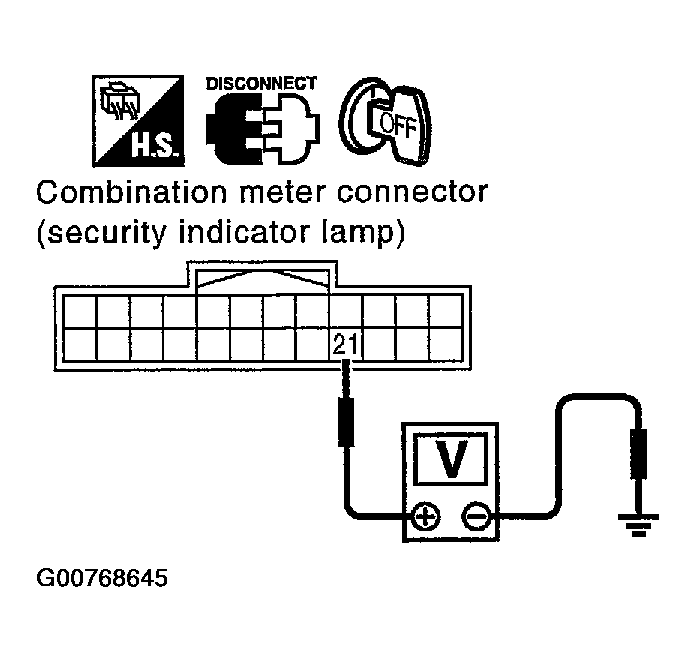

  Fig 3: Checking Voltage Between Combination Meter Connector And Ground
