Input/Output Signal of TCM

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

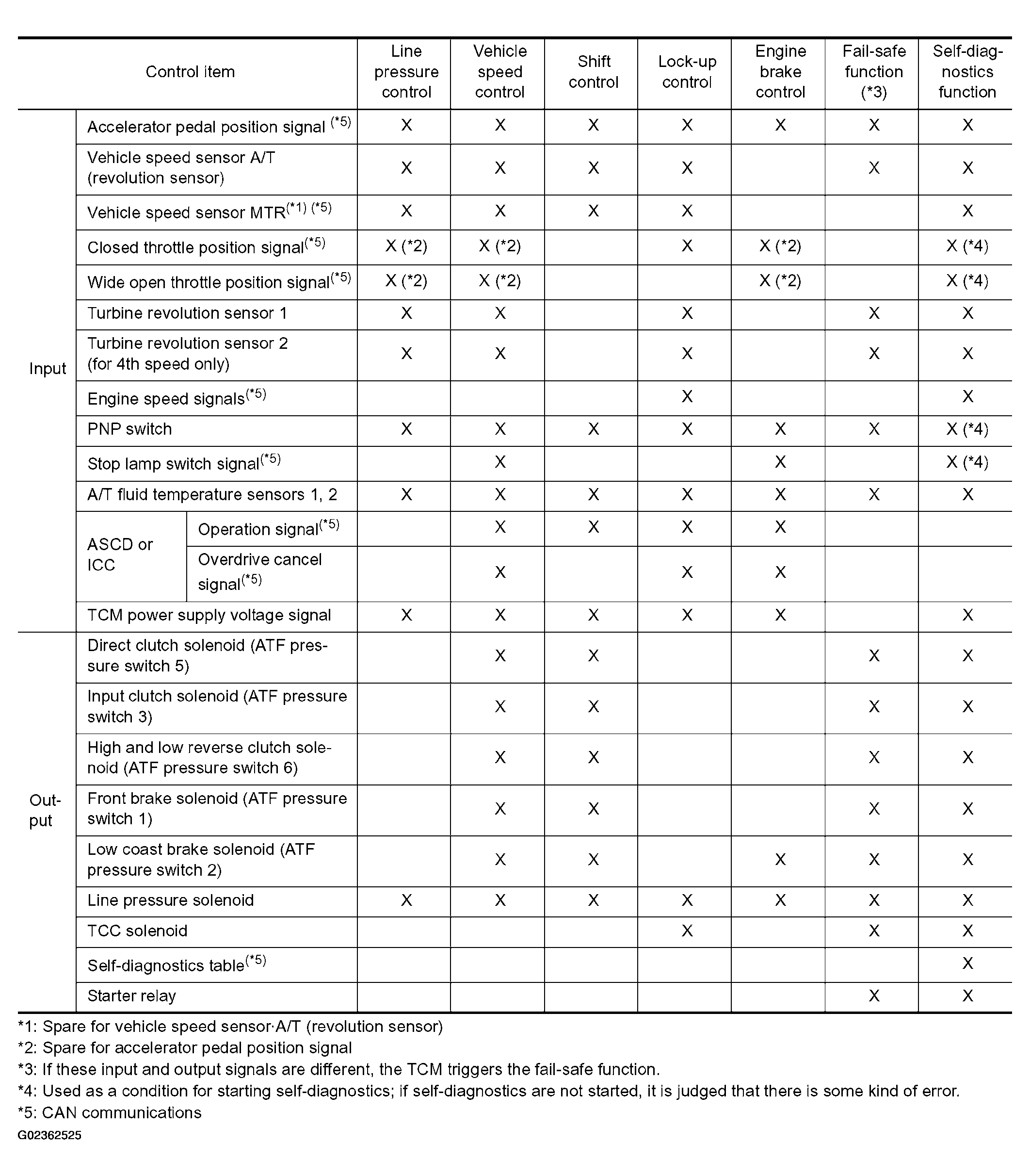

Fig 1: Input/Output Signal Of TCM
G02362525Courtesy of NISSAN MOTOR CO., U.S.A.
