Light Warning Chime Does Not Operate

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Infiniti FX45, 2005 Infiniti FX35, 2004 Infiniti FX45, 2004 Infiniti FX35, and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

CHECK WARNING CHIME OPERATION
Check the chime under conditions in exception of light warning chime operation.

Does warning chime sound?
1. YES: GO TO 2.
2. NO: Go to "ALL WARNINGS ARE NOT OPERATED ".
CHECK BCM INPUT SIGNAL
1. Select "BCM".
2. With "DATA MONITOR" of "BUZZER", confirm "LIGHT SW 1ST" when the lighting switch is operated.
  1. "LIGHT SW 1ST"
  2. Lighting switch ON (1st position): ON
  3. Lighting switch OFF: OFF
OK or NG
1. OK: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
2. NG: Check the lighting switch. Refer to "REMOVAL AND INSTALLATION ".

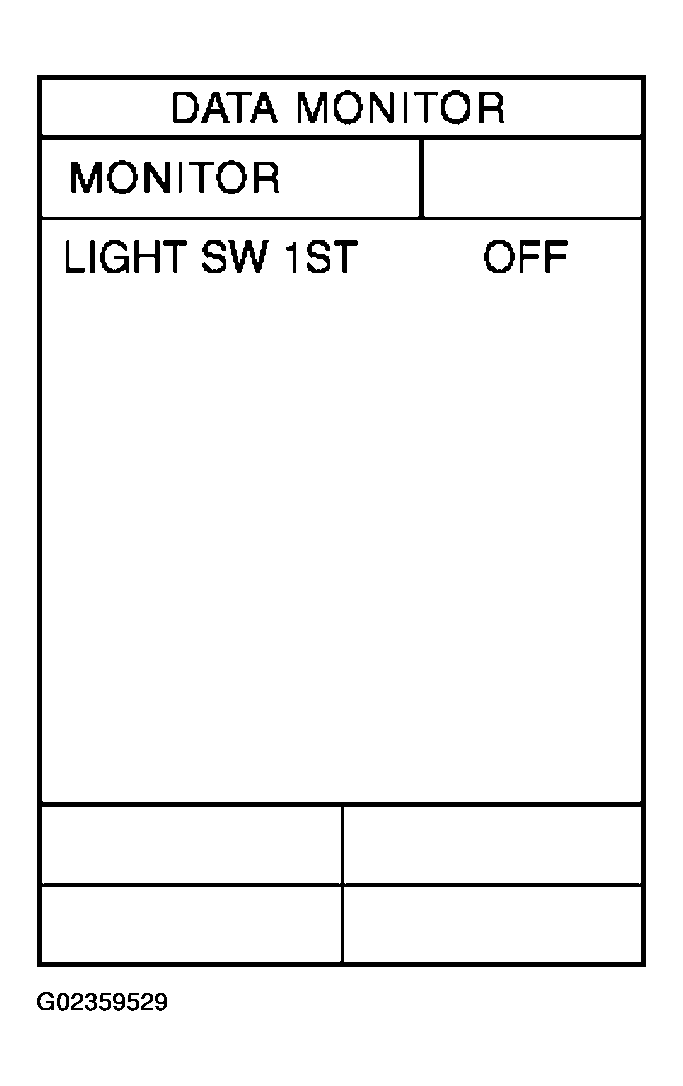

Fig 1: CONSULT-II Diagnosis Function Display (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
