CONSULT-II Start Procedure

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

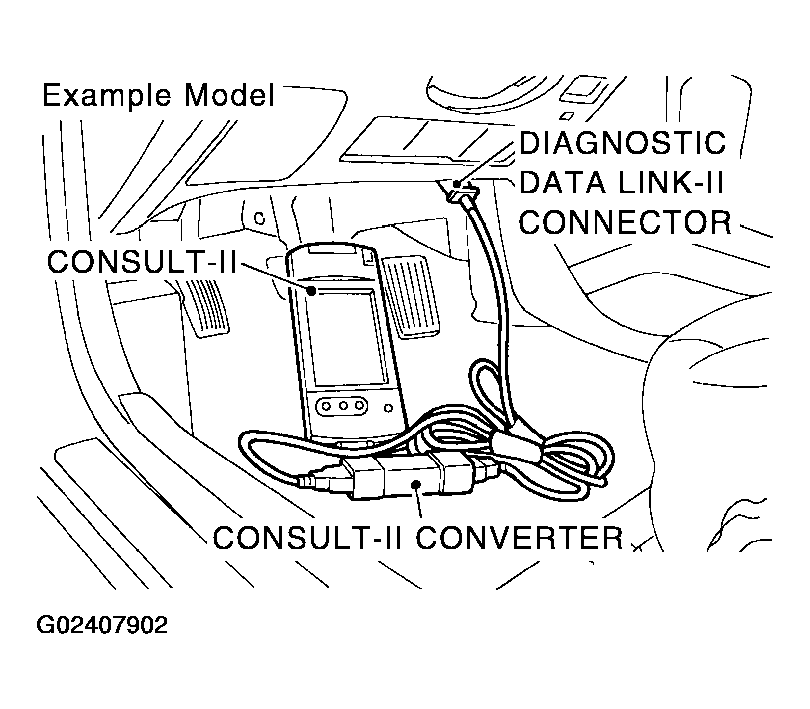

Fig 1: Connecting CONSULT-II & CONSULT-II Converter To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
When the ignition switch OFF, turn on the ignition switch.
Touch "START (NISSAN BASED VHCL)" or "System Shortcut" (eg: ENGINE) on the screen.

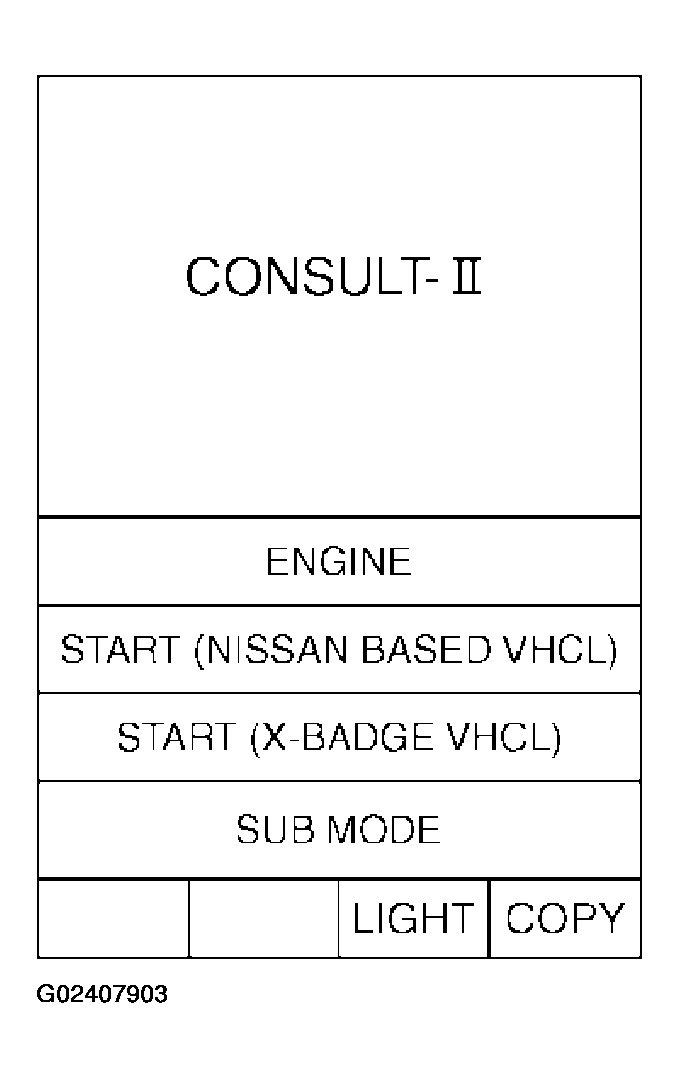

Fig 2: Scan Tool Display "CONSULT II"
Courtesy of NISSAN MOTOR CO., U.S.A.
