Checking Equipment

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

When ordering the following equipment, contact your NISSAN/INFINITI distributor.

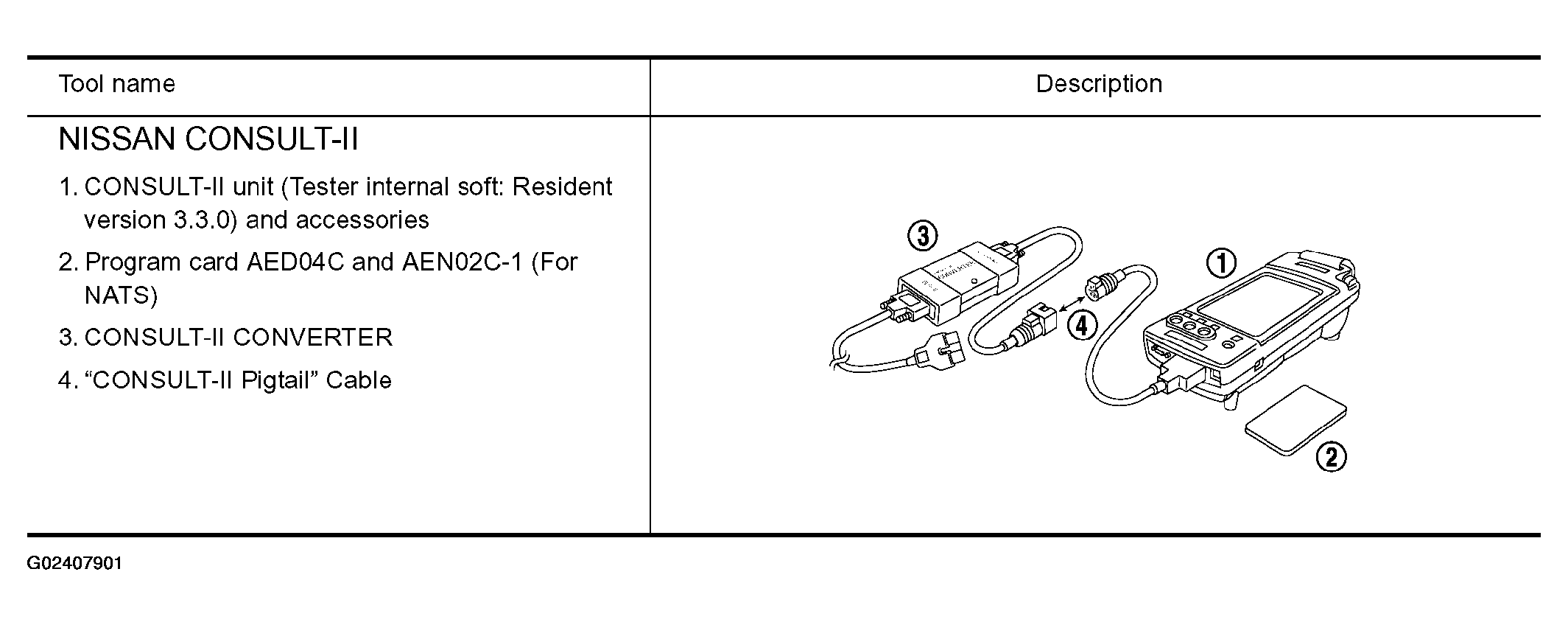

Fig 1: Nissan Consult - II Equipment
G02407901Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • The CONSULT-II must be used in conjunction with a program card.

    CONSULT-II does not require loading (Initialization) procedure.

  • Be sure the CONSULT-II is turned off before installing or removing a program card.
CAUTION:
  • Previous CONSULT-II "I" and "Y" DLC-I and DLC-II cables should NOT be used anymore because their DDL connector pins can be damaged during cable swapping.
  • If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  • If CONVERTER is not connected with CONSULT-II, vehicle occur the "FAIL-SAFE MODE" which is "LIGHT UP the HEADLIGHT" and/or "Cooling FAN ROTATING" when CONSULT-II is started.
