Ignition Signal Check

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CHECK IGNITION SIGNAL
1. Turn ignition switch ON.
2. Check voltage between NAVI control unit harness connector B 105 terminal 26 (SB) and ground.
  - 26 - Ground : Battery voltage
OK or NG
- OK : INSPECTION END
- NG : Repair harness or connector.

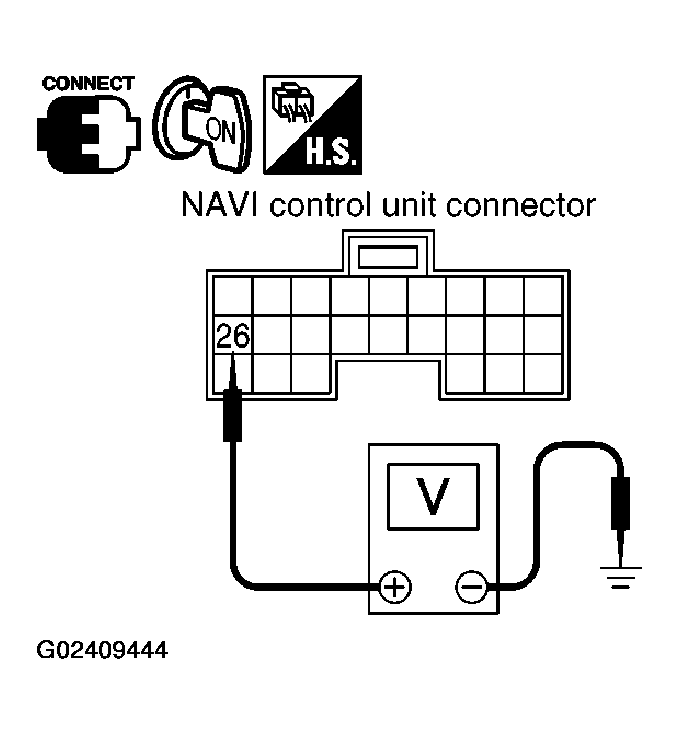

Fig 1: NAVI Control Unit Harness Connector B 105 Terminal 26 (SB) & Ground Voltage Test
Courtesy of NISSAN MOTOR CO., U.S.A.
