Illumination Signal Check

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CHECK TAIL LAMP OPERATION
When lighting switch turned 1st or 2nd position, does tail lamp illuminate?

Yes or No
- Yes : GO TO 2.
- No : Go to tail lamp trouble diagnosis. Refer to "PARKING, SIDE MARKER, LICENSE PLATE AND TAIL LAMPS DO NOT TURN OFF (AFTER APPROX. 10 MINUTES) ".
CHECK ILLUMINATION SIGNAL
Check voltage between NAVI control unit harness connector terminal and ground.

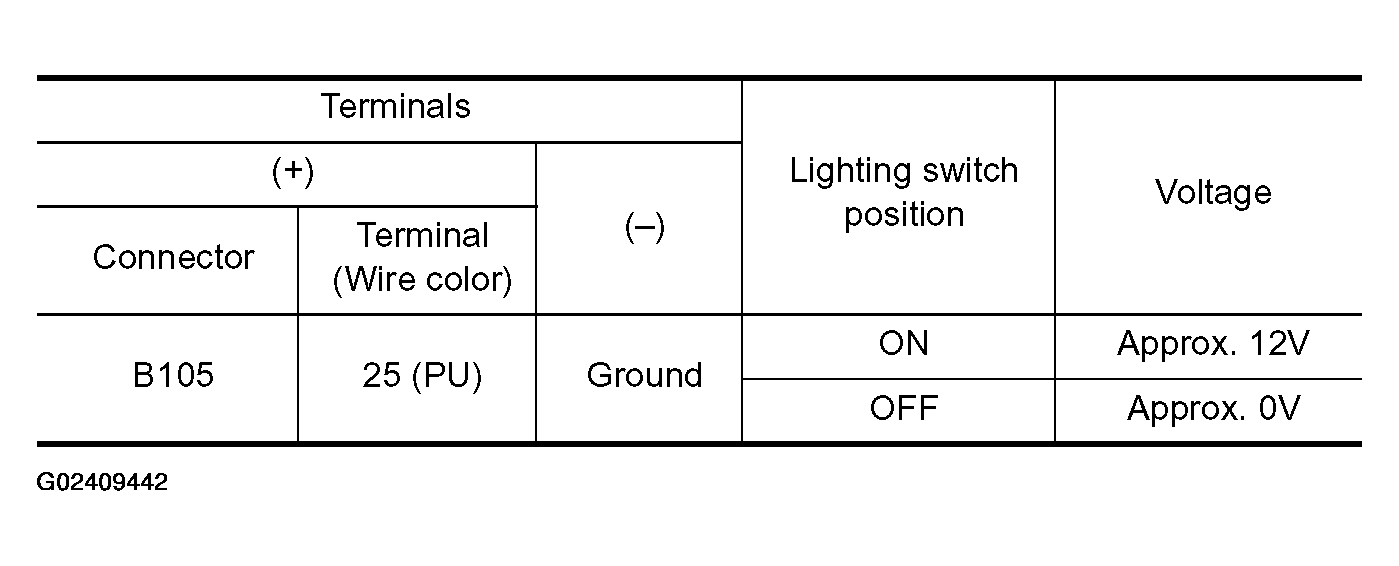

Fig 1: NAVI Control Unit Harness Connector Terminal & Ground Voltage Specifications Table
Courtesy of NISSAN MOTOR CO., U.S.A.

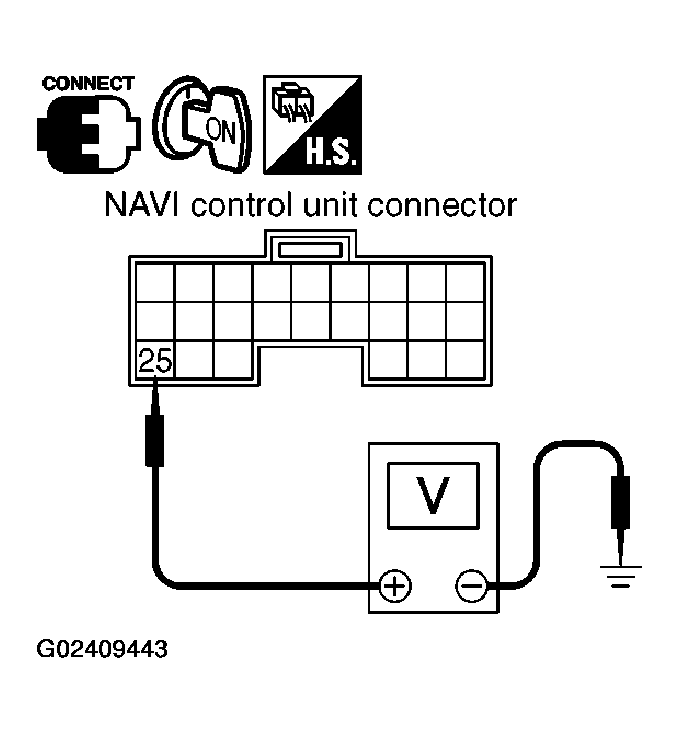

Fig 2: NAVI Control Unit Harness Connector Terminal & Ground Voltage Test
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK : INSPECTION END
- NG : Repair harness or connector.
