Color of RGB Image is Not Proper (All Screens Look Reddish)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK RGB HARNESS
1. Turn ignition switch OFF.
2. Disconnect display control unit connector M95 and display unit connector M93.
3. Check continuity between display control unit and display unit.
4. Check continuity between display control unit and ground.
- When the screen looks reddish.

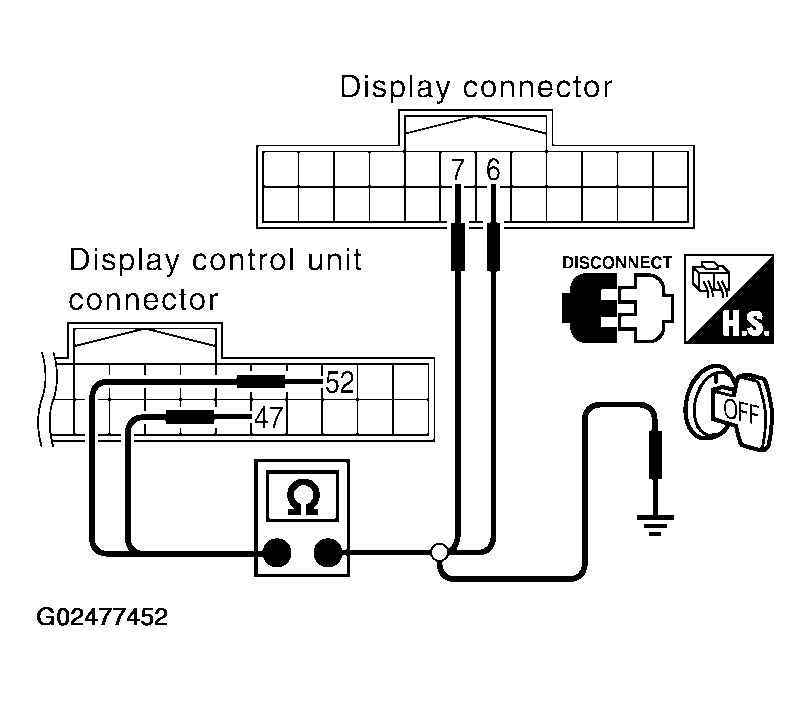

  Fig 1: Checking Continuity Between Display Control Unit Terminal 47, 52 And Display Unit Connector Terminals 6, 7 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

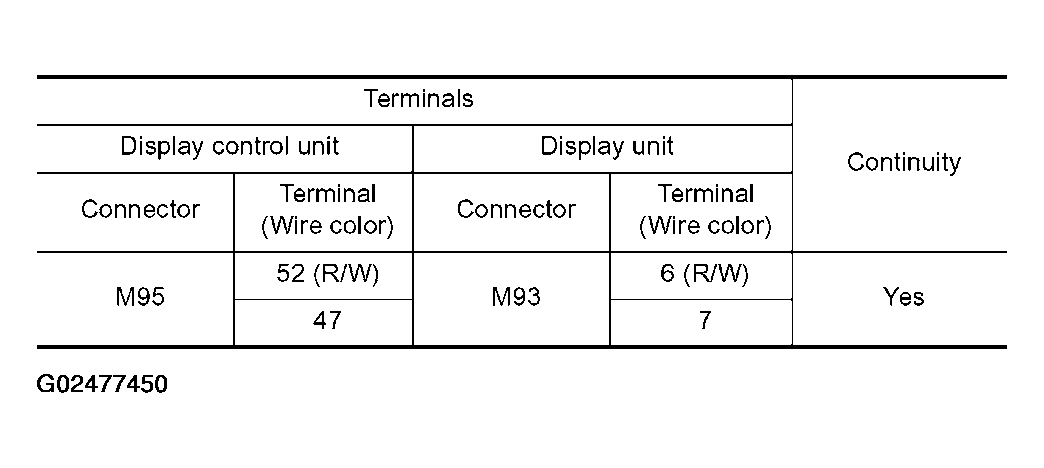

  Fig 2: Connector M95 Terminal (Wire Color) Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.

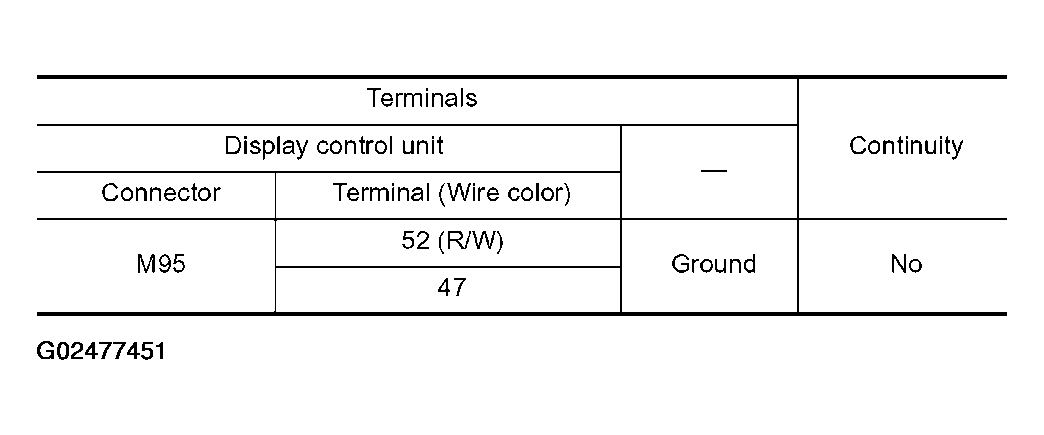

  Fig 3: Connector M95 Terminal Continuity Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Repair harness or connector.
CHECK RGB SIGNAL
1. Connect display control unit connector and display unit connector.
2. Turn ignition switch ON.
3. Display "Color bar" by "CONFIRMATION/ADJUSTMENT" mode.
4. Check the following with CONSULT-II or oscilloscope.
- When the screen looks reddish.
Voltage signal between display control unit connector M95 terminal 52 (R/W) and 47.

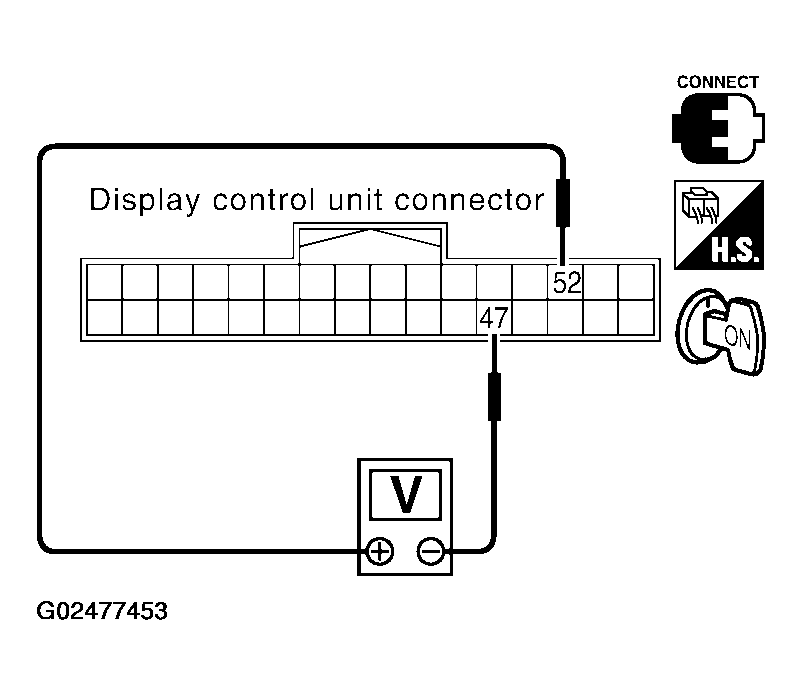

Fig 4: Checking Voltage Signal Between Terminal Display Control Unit Connector Terminals 52 & 47
Courtesy of NISSAN MOTOR CO., U.S.A.

52 (R/W) - 47: Refer to " TERMINALS AND REFERENCE VALUE FOR DISPLAY CONTROL UNIT ".

OK or NG
1. OK: Replace display unit. Refer to "REMOVAL AND INSTALLATION OF DISPLAY UNIT ".
2. NG: Replace display control unit. Refer to "REMOVAL AND INSTALLATION OF DISPLAY CONTROL UNIT ".
