Installation Notes

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

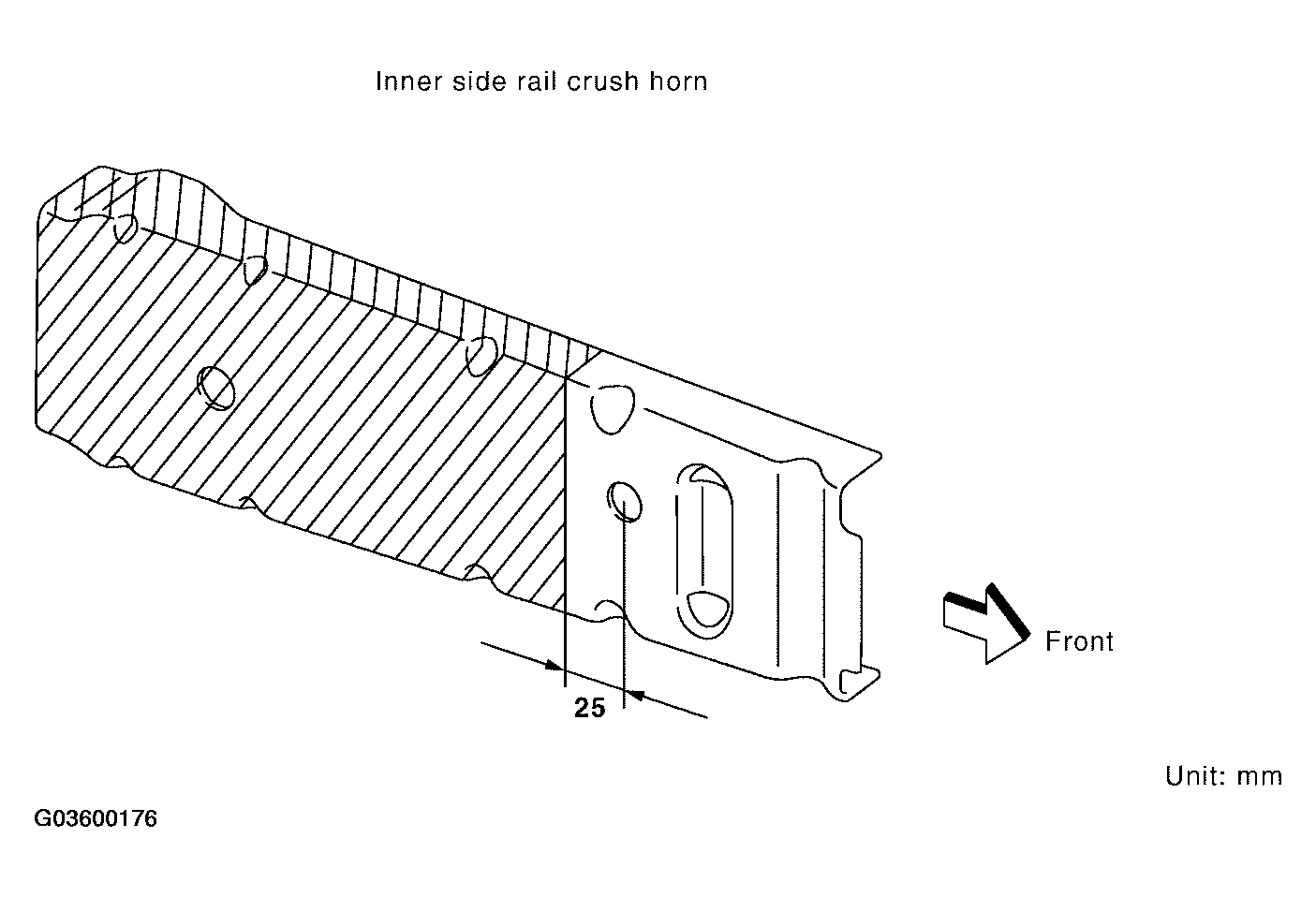

Scribe a straight line on the inner side rail crush horn along the hole center as shown in the figure. Cut off inner side rail crush horn along scribed line.

Fig 1: Scribing Line On Inner Side Rail Crush Horn
Courtesy of NISSAN MOTOR CO., U.S.A.

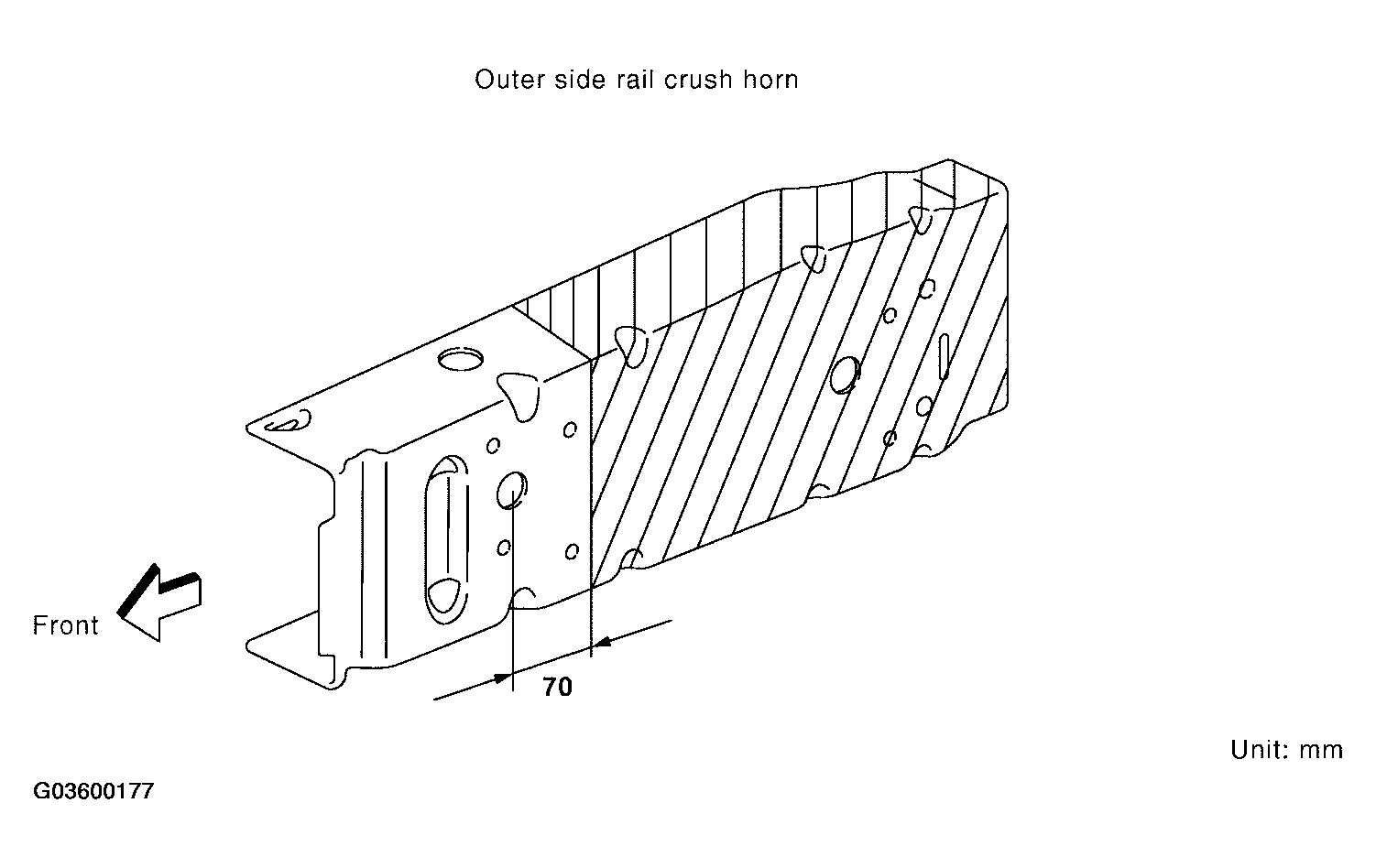

Scribe a straight line on the outer side rail crush horn along the hole center as shown in the figure. Cut off outer side rail crush horn along scribed line.

Fig 2: Scribing Line On Outer Side Rail Crush Horn

Courtesy of NISSAN MOTOR CO., U.S.A.

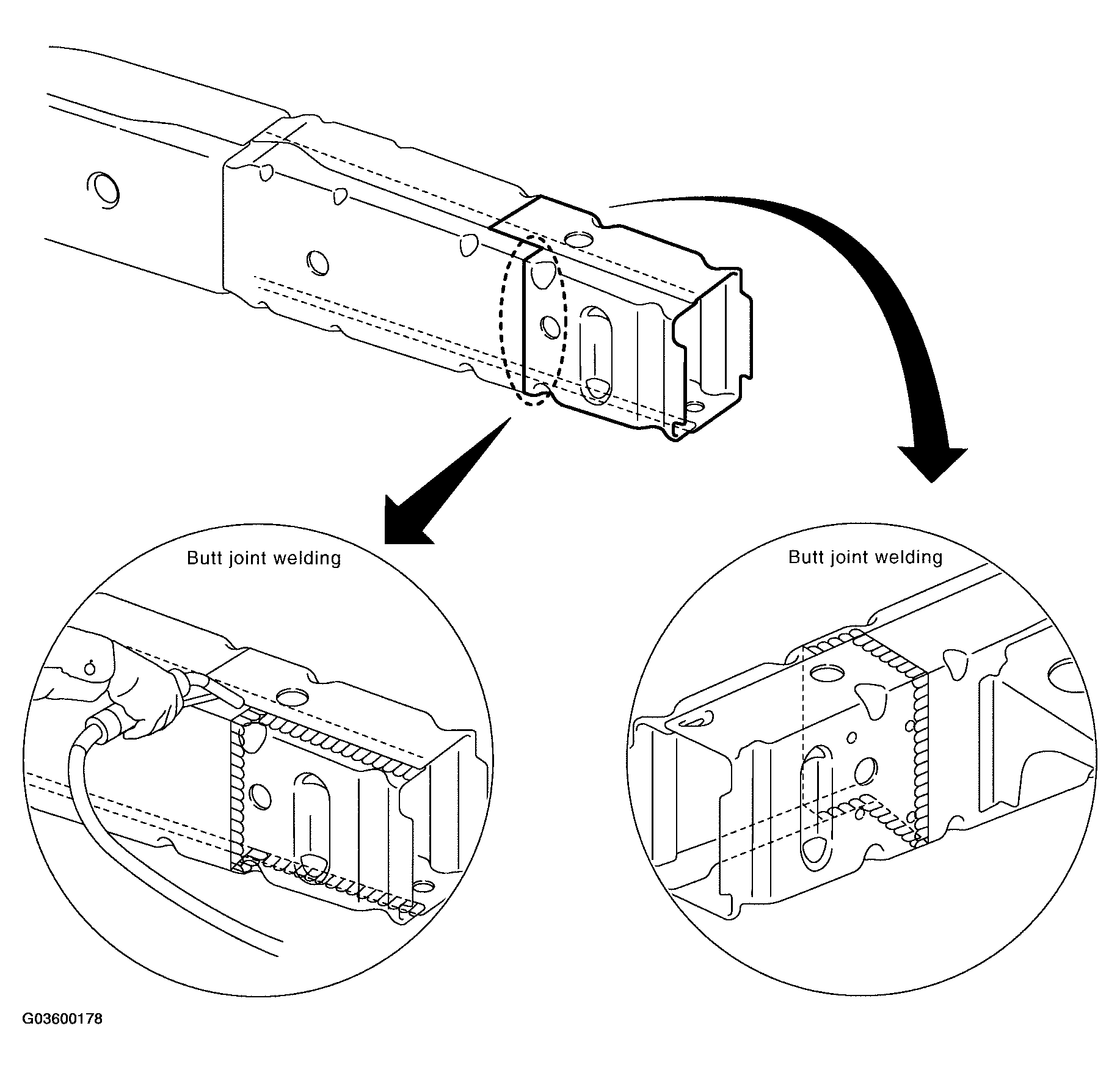

Weld part to be butt-welded and seam-welded corner to corner as shown in the figure.

Fig 3: Identifying Part To Be Butt-Welded And Seam-Welded
Courtesy of NISSAN MOTOR CO., U.S.A.
