Passenger Compartment: Measurement

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Passenger Compartment Measurements (Crew Cab)

Courtesy of NISSAN MOTOR CO., U.S.A.

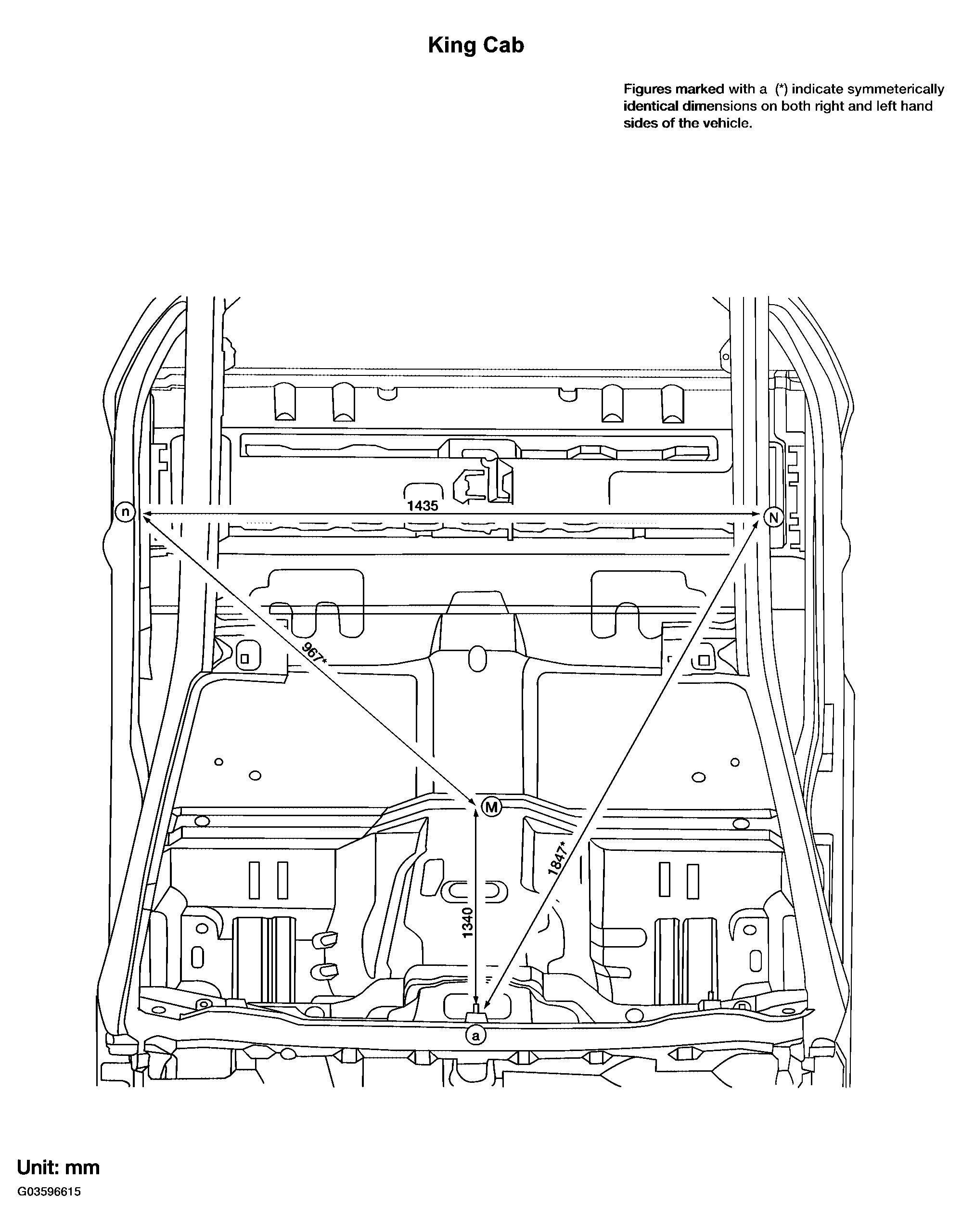

Fig 2: Identifying Passenger Compartment Measurements (King Cab)

Courtesy of NISSAN MOTOR CO., U.S.A.

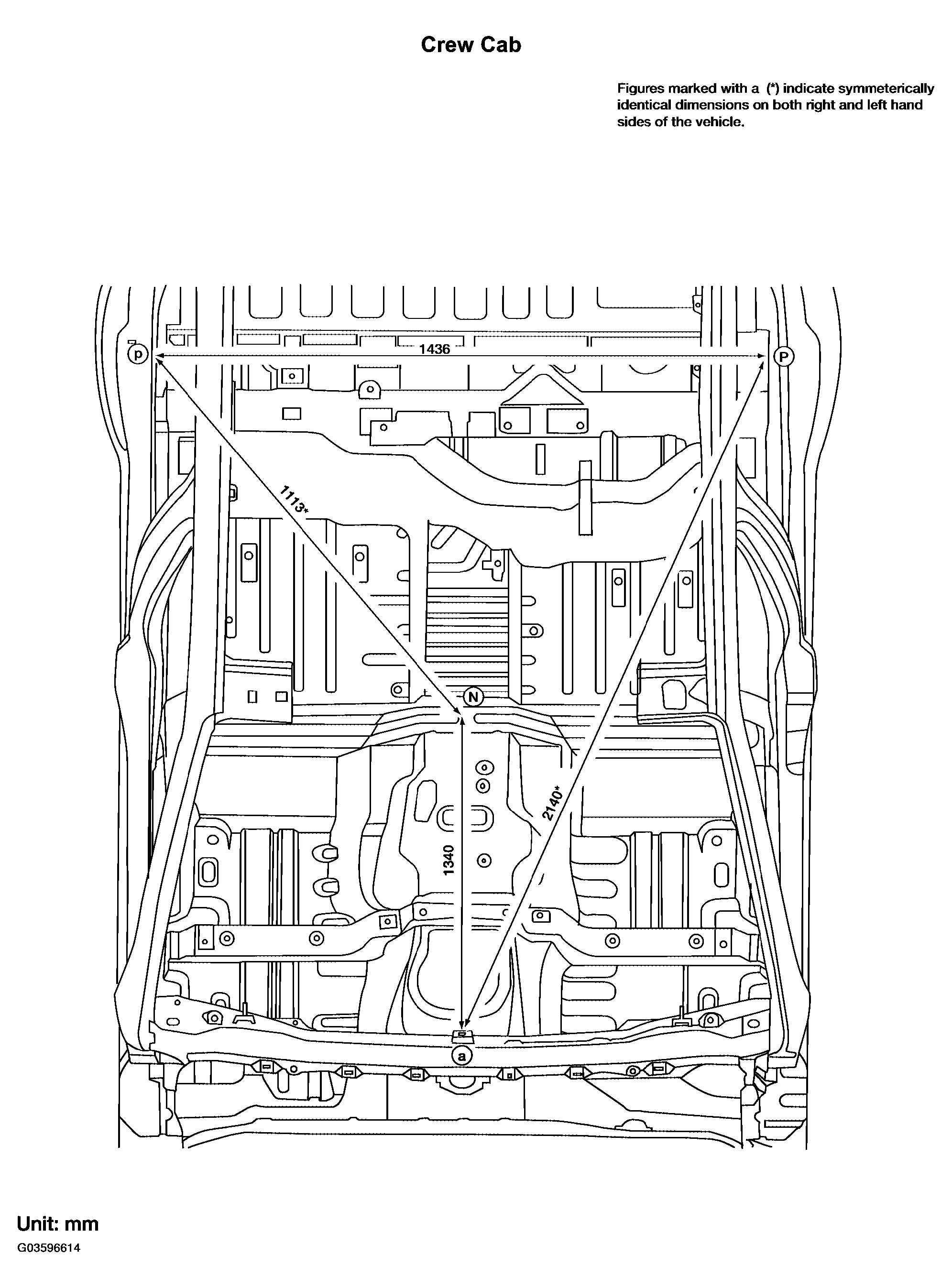

Fig 3: Identifying Passenger Compartment Measurements (Crew Cab)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Passenger Compartment Measurements (King Cab)

Courtesy of NISSAN MOTOR CO., U.S.A.
