Measurement Points

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

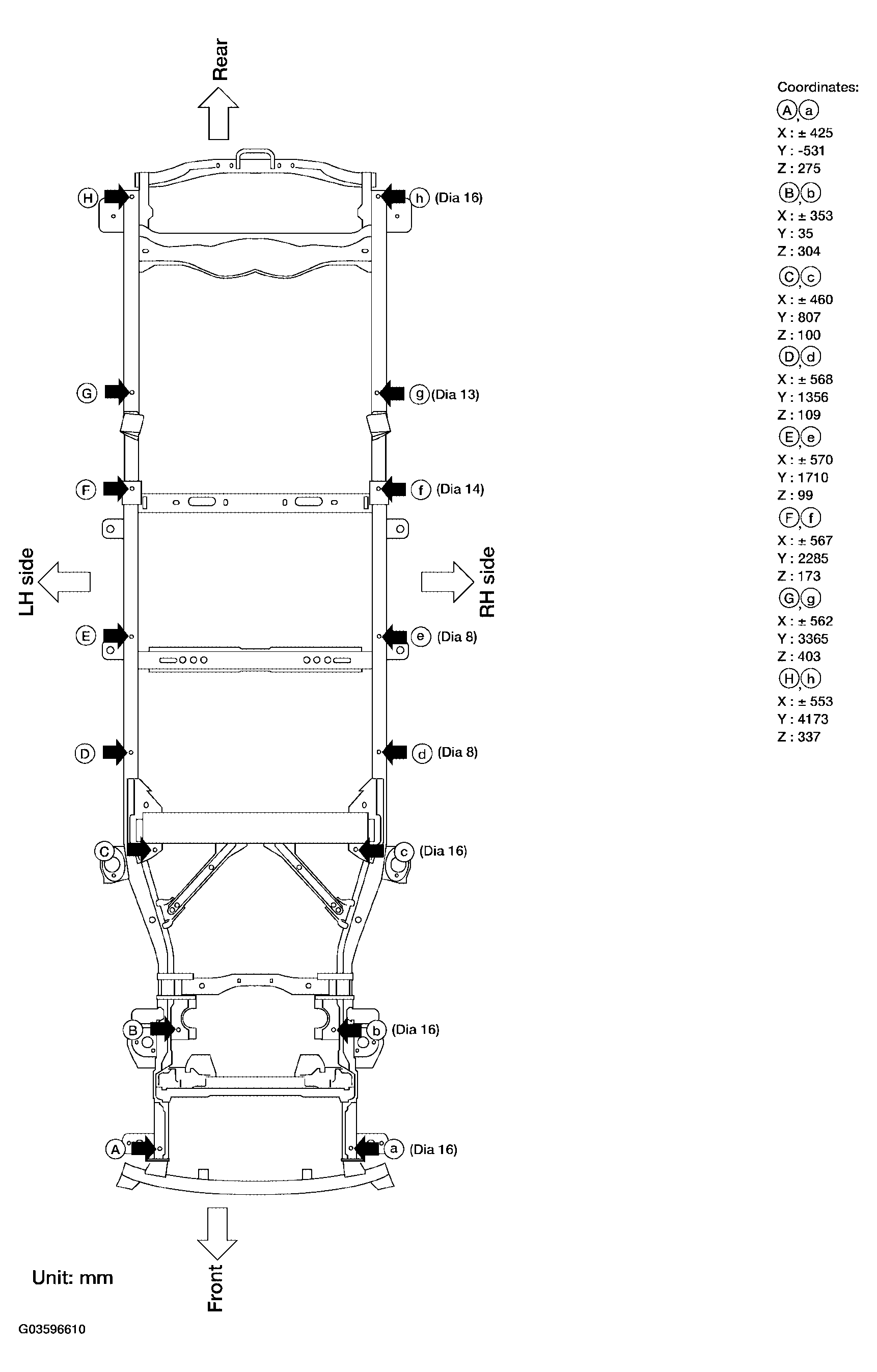

Fig 1: Locating Measurement Points (1 Of 2)
G03596610Courtesy of NISSAN MOTOR CO., U.S.A.

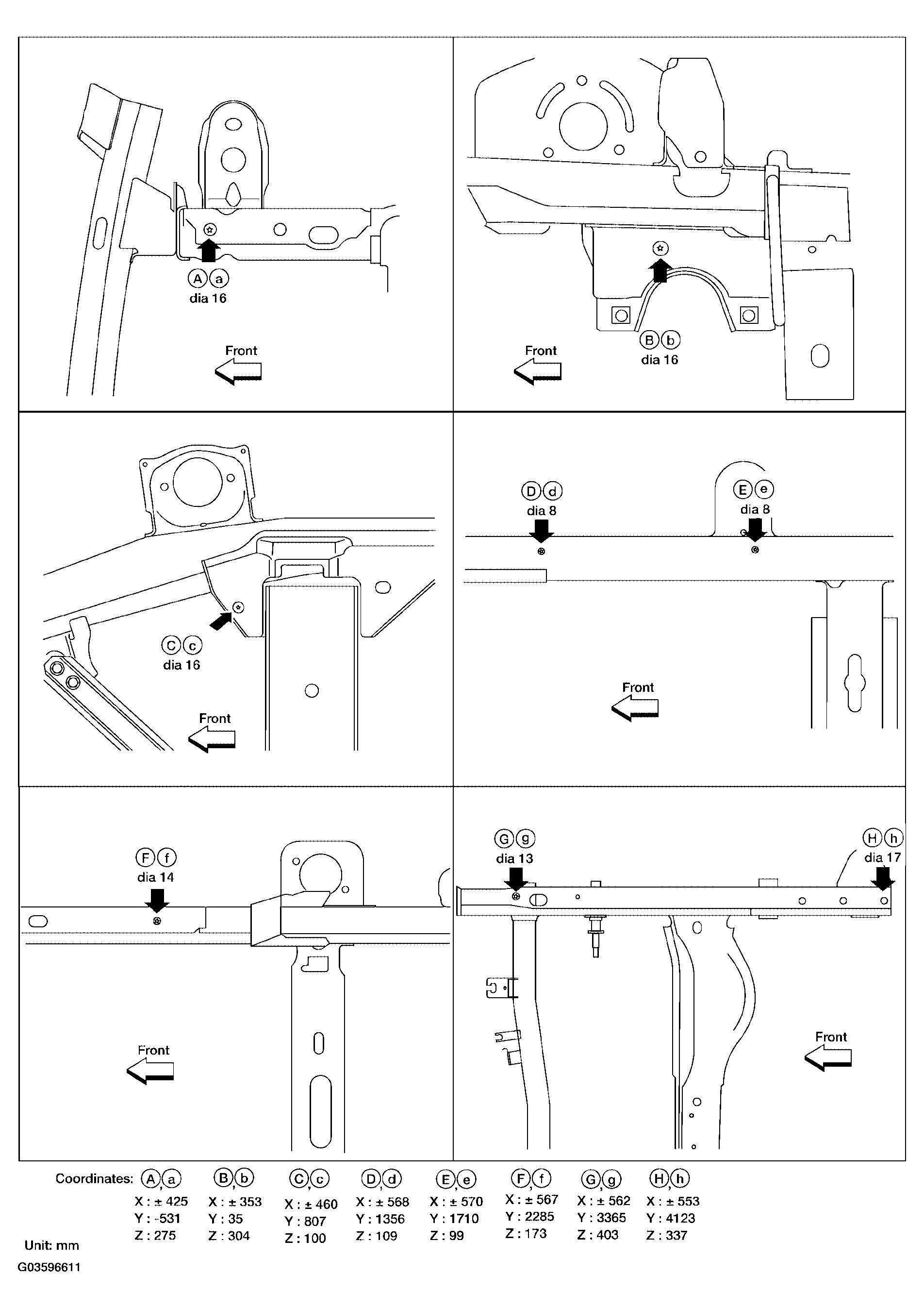

Fig 2: Locating Measurement Points (2 Of 2)
G03596611Courtesy of NISSAN MOTOR CO., U.S.A.
