Passenger Compartment: Measurement

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

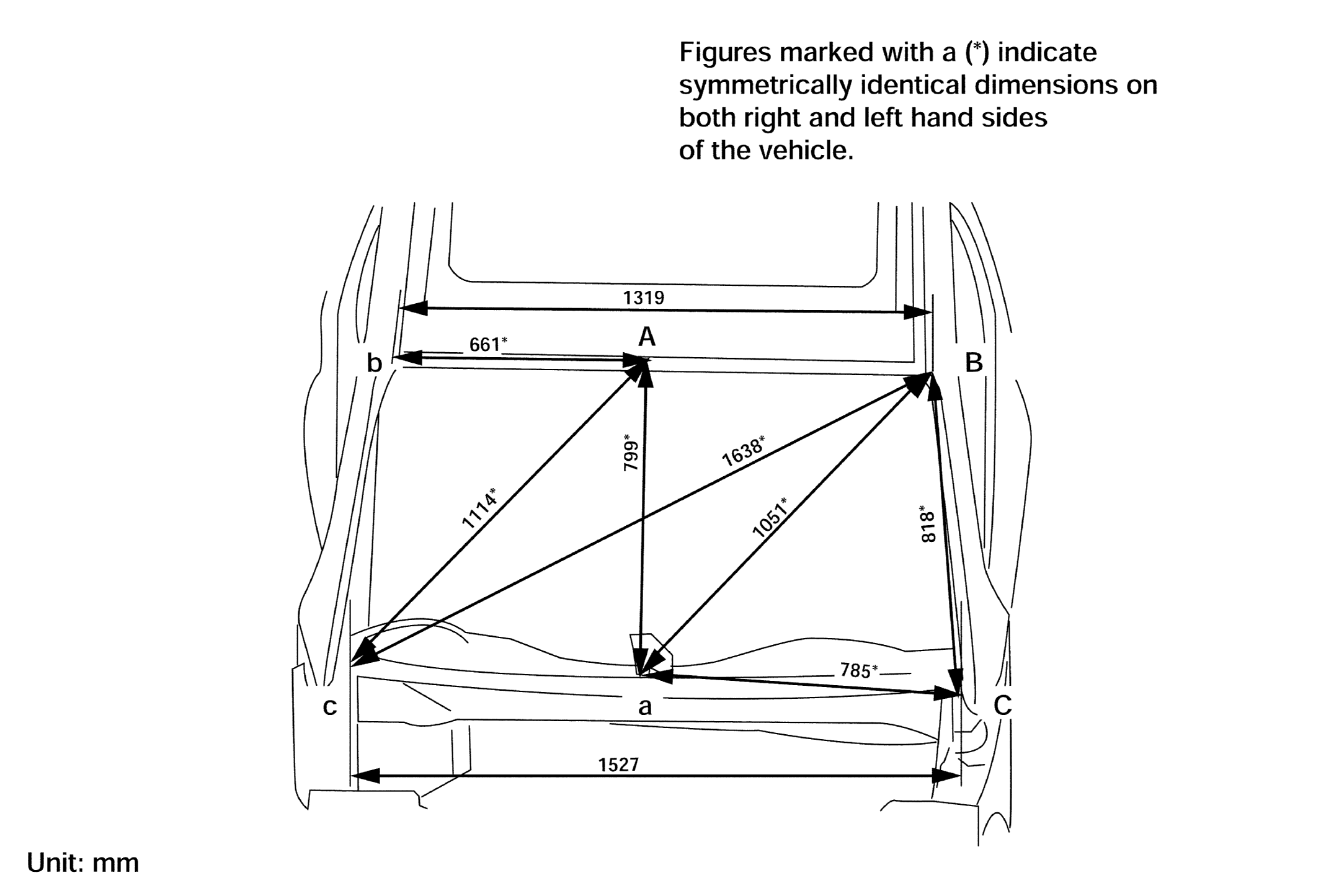

Fig 1: Identifying Windshield Opening Measurements

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Door Opening Measurements (King Cab)

Courtesy of NISSAN MOTOR CO., U.S.A.

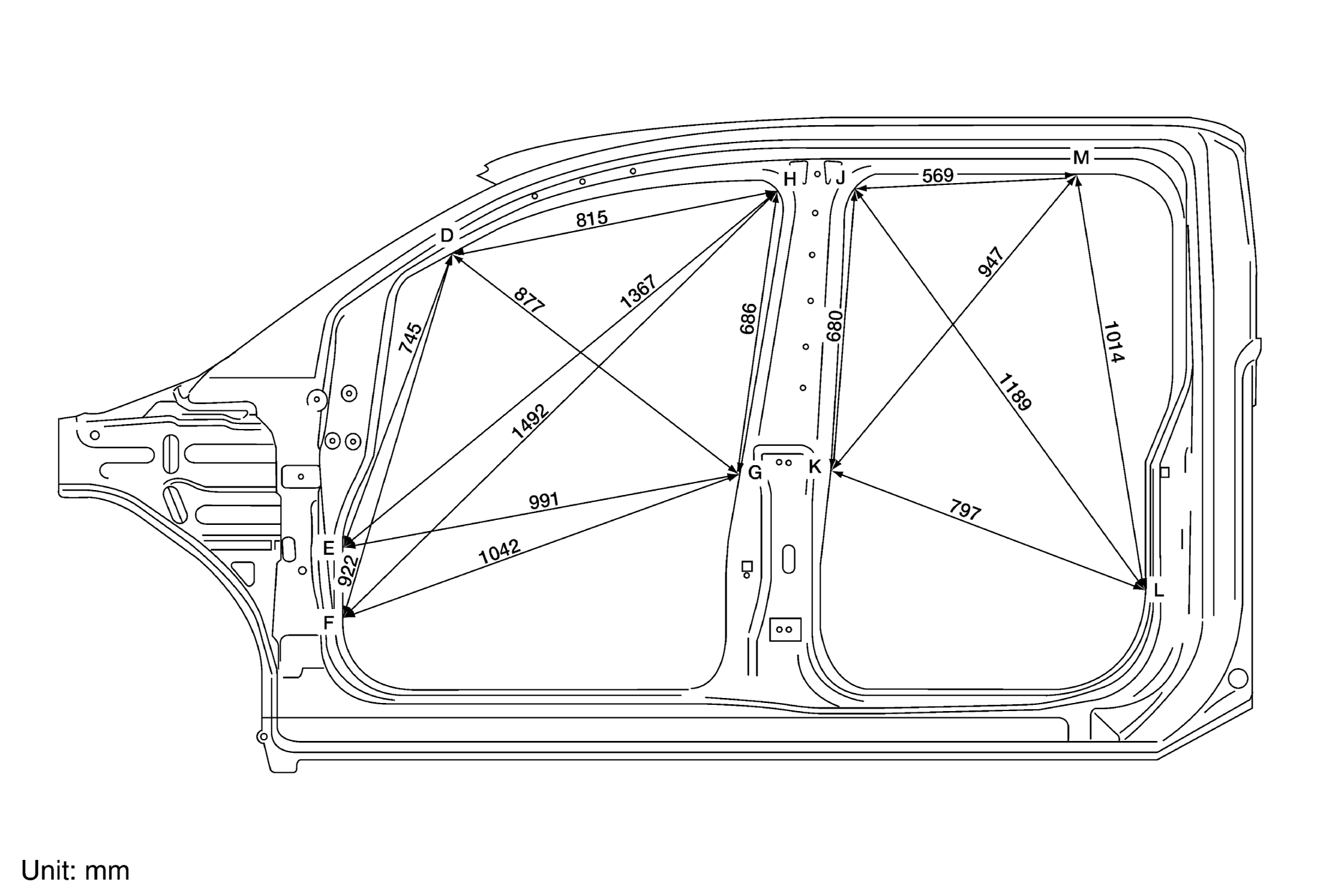

Fig 3: Identifying Door Opening Measurements (Crew Cab)

Courtesy of NISSAN MOTOR CO., U.S.A.

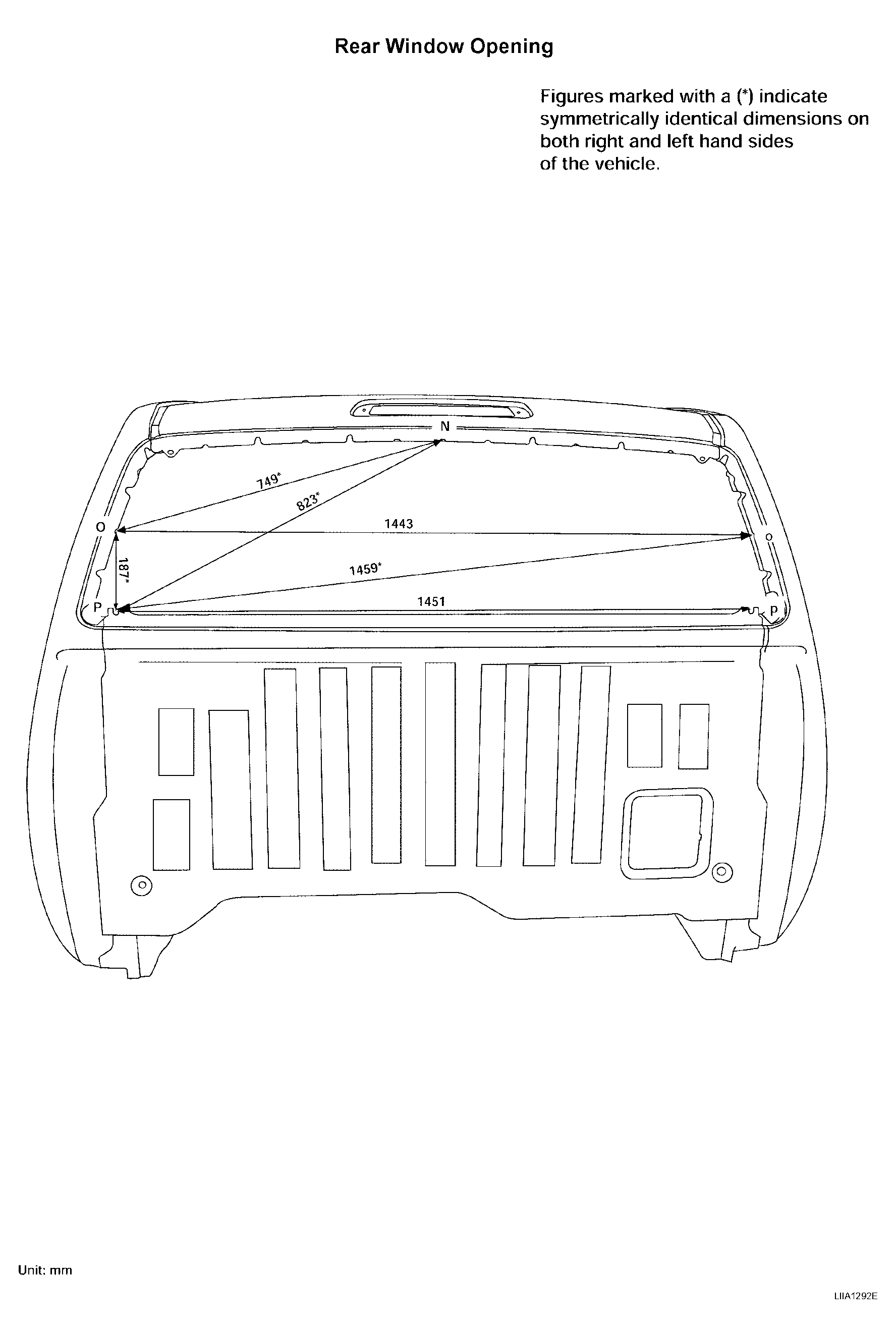

Fig 4: Identifying Rear Window Opening Measurements

Courtesy of NISSAN MOTOR CO., U.S.A.
