Power Supply and Ground Circuit Check for NAVI Control Unit

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUSE

Make sure the following fuses of the NAVI control unit are not blown.

FUSES REFERENCE CHART

Terminals		Power source	Fuse No.
Connector	Terminal	Power source	Fuse No.
B151	2	Battery power	29
B151	5	ACC/ON power	4

OK or NG

OK: GO TO 2.

NG: If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to "POWER SUPPLY ROUTING CIRCUIT "

CHECK POWER SUPPLY CIRCUIT

Disconnect NAVI control unit connector B151.
Check voltage between connector terminals and ground as follows.

CONNECTOR TERMINALS CONTINUITY REFERENCE CHART

Terminals			Ignition switch position
(+)		(-)	OFF	ACC	ON
Connector	Terminal	(-)	OFF	ACC	ON
B151	2	Ground	Battery voltage	Battery voltage	Battery voltage
B151	5	Ground	0V	Battery voltage	Battery voltage

OK or NG

OK: GO TO 3.

NG: Check harness for open between NAVI control unit and fuse.

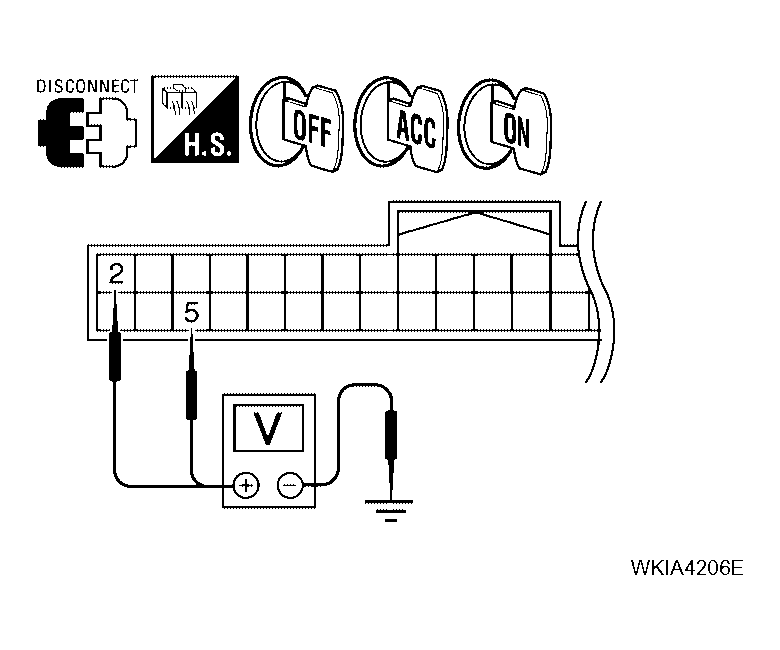

Fig 1: Checking Voltage Between Connector Terminals And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK GROUND CIRCUIT

Turn ignition switch OFF.
Check continuity between the following NAVI control unit connector terminals and ground.

CONNECTOR TERMINALS CONTINUITY REFERENCE

Terminals			Ignition switch	Continuity
Connector	Terminal	-	Ignition switch	Continuity
B151	1	Ground	OFF	Yes

OK or NG

OK: Inspection End.

NG: Repair or replace harness.

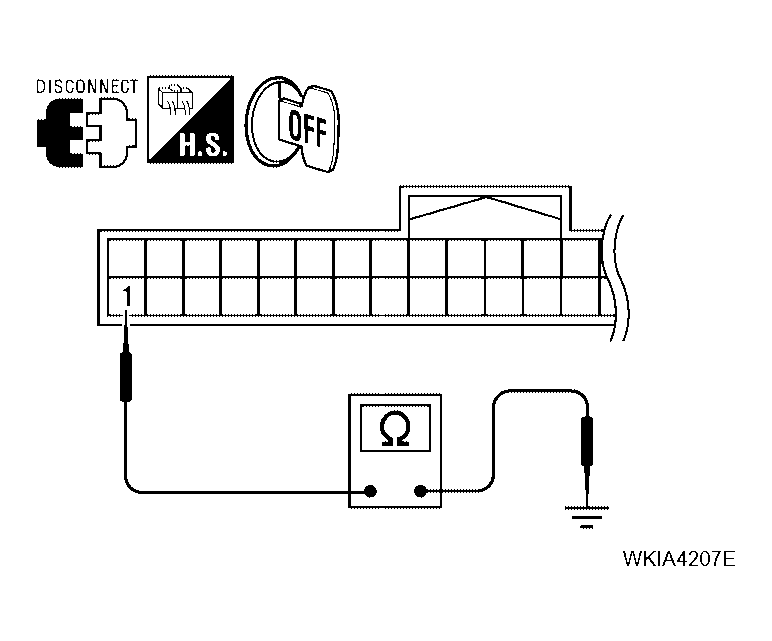

Fig 2: Checking Continuity Between NAVI Control Unit Connector Terminals And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
