Steering Gear
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
STEERING GEAR SPECIFICATIONS
| Steering gear model |
PR26AD |
| Drive type |
2WD |
AWD |
| Tire |
215/55R17 |
235/45R18 |
215/55R17 |

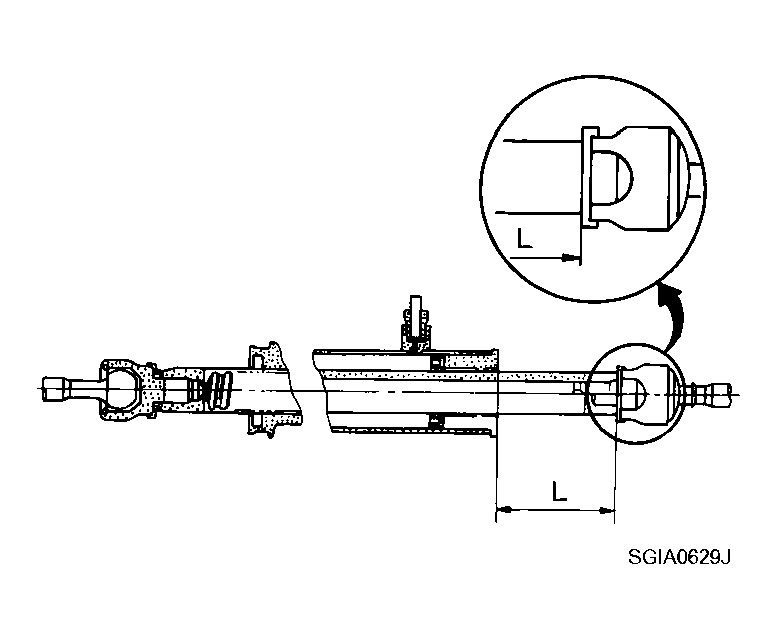

| Rack neutral position, dimension " L" (rack stroke) |
66.6 mm (2.622 in) |
64.5 mm (2.539 in) |
66.0 mm (2.598 in) |
 Courtesy of NISSAN MOTOR CO., U.S.A.
|
