Steering Outer Socket and Inner Socket

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

STEERING OUTER SOCKET AND INNER SOCKET SPECIFICATIONS

Steering gear type		PR26AD
Outer socket ball joint	Swing torque	0.3 - 2.9 N.m (0.03 - 0.29 kg-m, 3 - 25 in-lb)
	Measurement on spring balance (Measuring point: stud cotter pin hole)	4.42 - 42.7 N (0.5 - 4.4 kg, 1 - 10 lb)
	Rotating torque	0.3 - 2.9 N.m (0.03 - 0.29 kg-m, 3 - 25 in-lb)
	Axial end play	0.5 mm (0.020 in) or less
Inner socket ball joint	Swinging torque	1.0 - 7.8 N.m (0.11 - 0.79 kg-m, 9 - 69 in-lb}

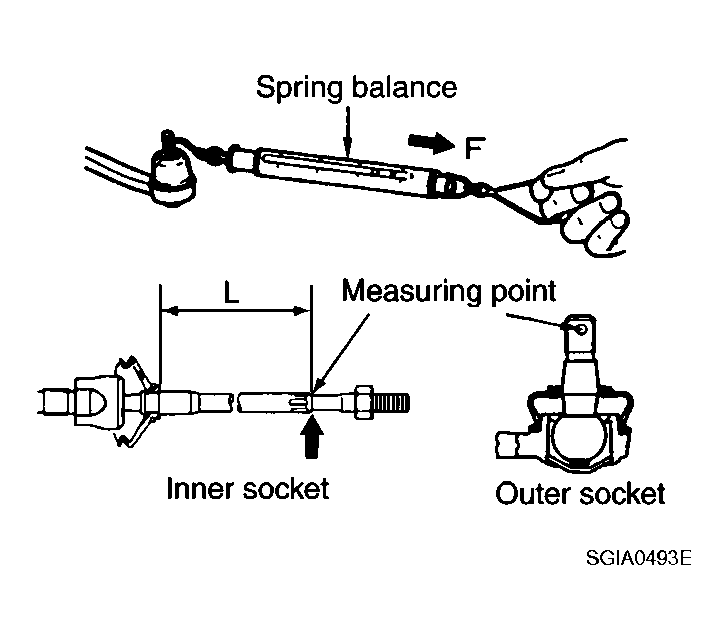

	Measurement on spring balance (measuring point: mark see below)	10 - 78 N (1 - 8 kg, 2 - 18 lb)
	Axial end play	0.2 mm (0.008 in) or less
Courtesy of NISSAN MOTOR CO., U.S.A.

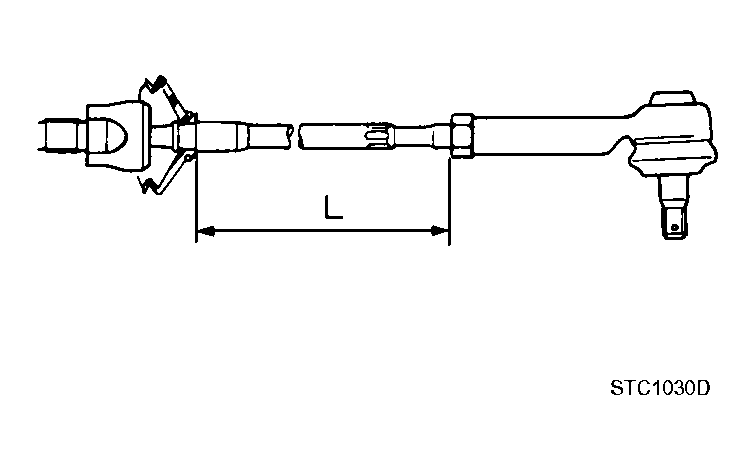

Inner socket length" L"		106.3 mm (4.19 in)
Courtesy of NISSAN MOTOR CO., U.S.A.
