Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Remove all parts from jacket tube assembly.

When remove tilt lever, perform as shown in the figure.

Fig 1: Identifying Tilt Lever
Courtesy of NISSAN MOTOR CO., U.S.A.
When remove telescopic lever, perform as shown in the figure.

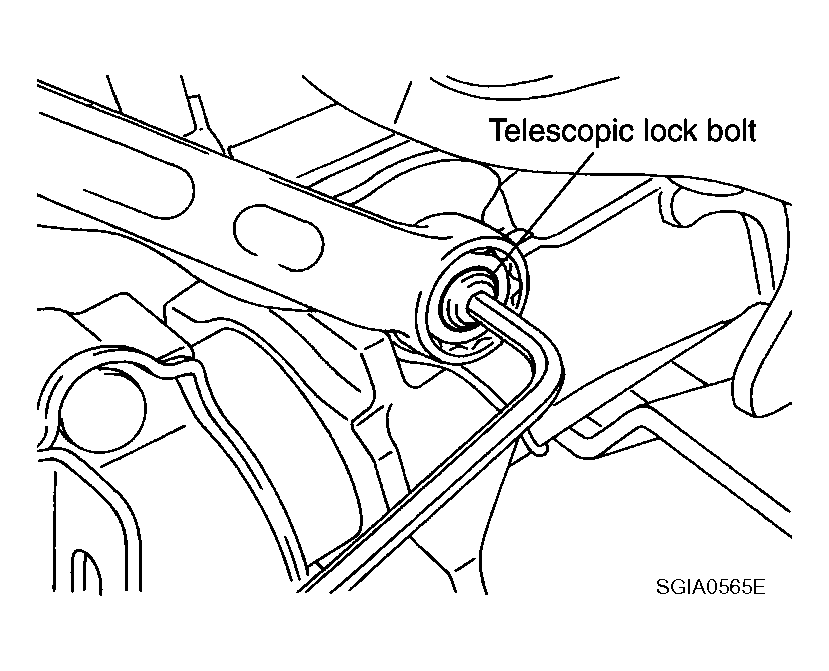

Fig 2: Identifying Telescopic Lever
Courtesy of NISSAN MOTOR CO., U.S.A.

Remove parts from jacket tube assembly. Refer to COMPONENT (WITH AUTOMATIC DRIVE POSITIONER)
