Inspection After Assembly

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check tilt and telescopic mechanism operating range.

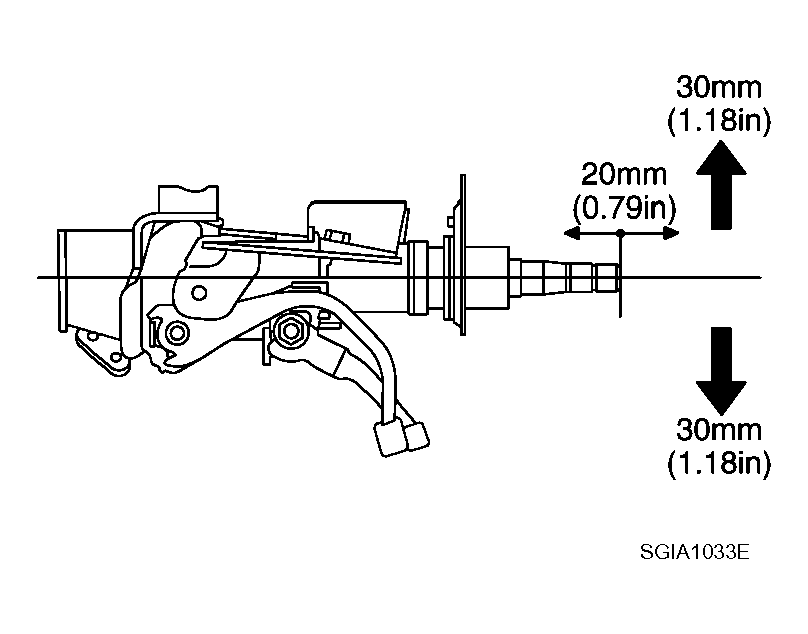

Fig 1: Checking Tilt And Telescopic Mechanism Operating Range
G04122089Courtesy of NISSAN MOTOR CO., U.S.A.


Check tilt and telescopic mechanism operating range.

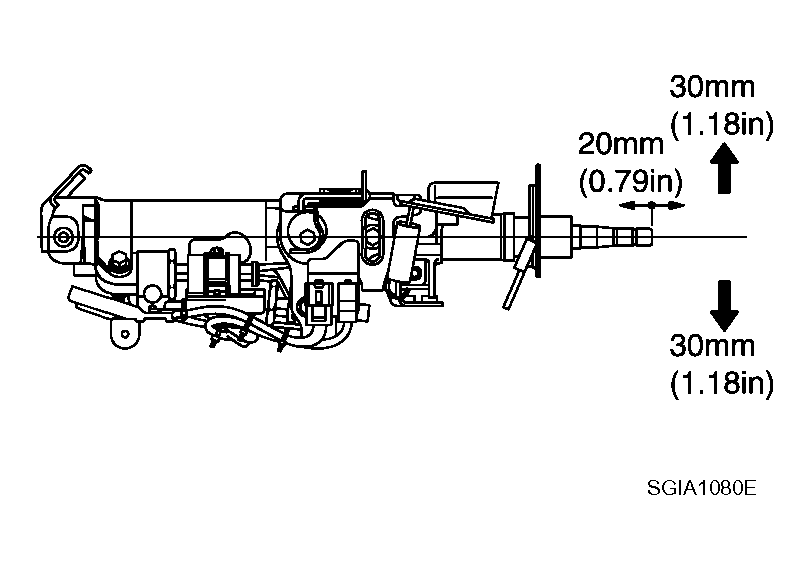

Fig 1: Checking Tilt And Telescopic Mechanism Operating Range
G04122091Courtesy of NISSAN MOTOR CO., U.S.A.
