Removal and Installation: Component

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

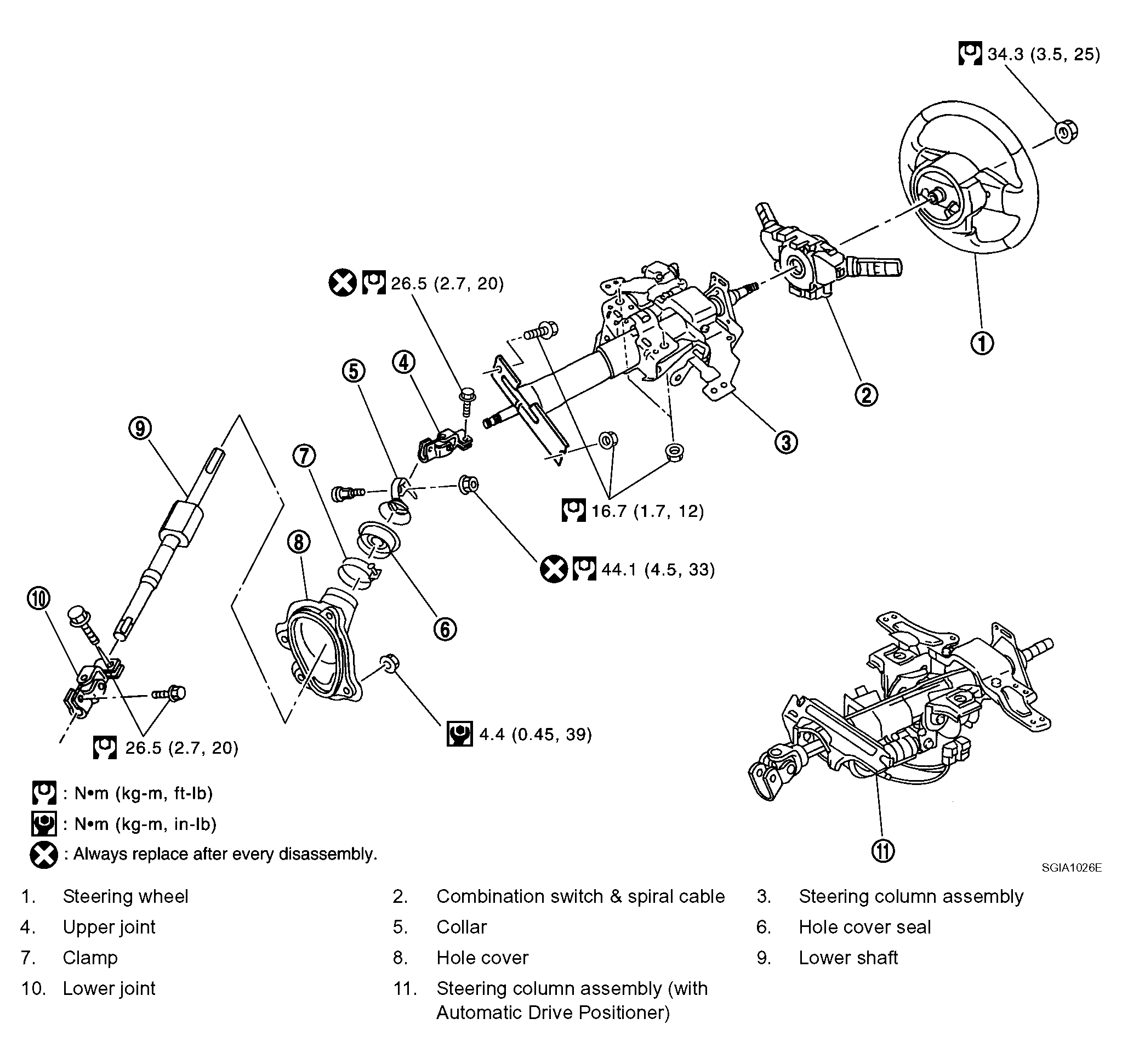

Fig 1: Steering Column Replacement Components With Torque Specifications
G04122083Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Do not give axial impact to steering column assembly during removal and installation.
  • Do not move steering gear assembly when removing steering column assembly.
  • When removing steering column assembly, remove it at the minimum of telescopic.
