Steering Switch Check (Premium System)
WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
- SELF-DIAGNOSIS FUNCTION CHECK
- Start audio unit self-diagnosis function. Refer to "AUDIO UNIT SELF-DIAGNOSIS FUNCTION (PREMIUM SYSTEM) ".
- Operate steering switch.
Does steering switch operate normally?
YES: Inspection End.
NO: GO TO 2.
- CHECK HARNESS
- Turn ignition switch OFF.
- Disconnect audio unit connector M45 (B) and spiral cable connector M30.

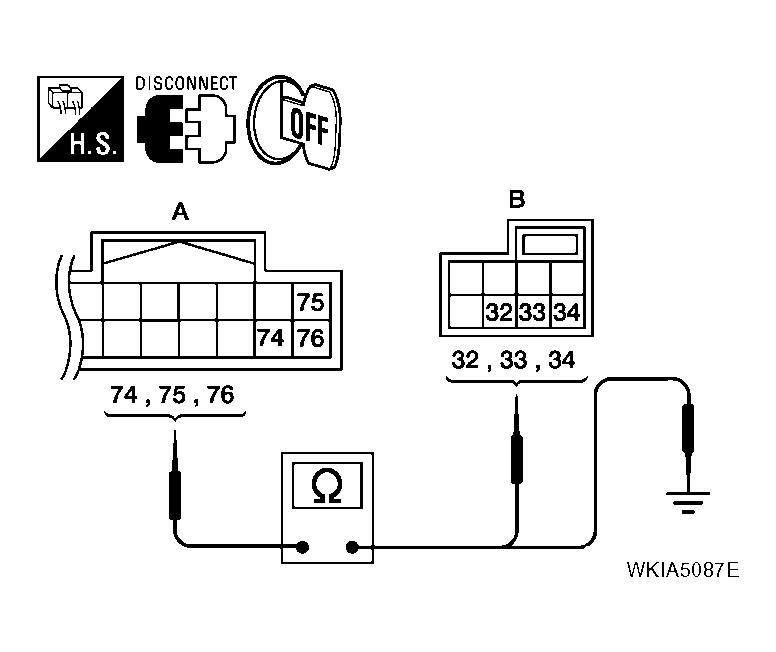

- Check continuity between spiral cable harness connector terminal and audio unit harness connector terminal.TERMINAL CONTINUITY CHART
Terminals Continuity Spiral cable Audio unit Connector Terminal Connector Terminal B: M30 32 A: M45 76 Yes 33 75 34 74 - Check continuity between audio unit and ground.Fig 1: Checking Continuity Between Spiral Cable Harness Connector Terminal And Audio Unit Harness Connector Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
TERMINAL CONTINUITY CHARTTerminals Continuity Audio unit - Connector Terminal B: M45 74 Ground No 75 76
OK or NG
OK: GO TO 3.
NG: Repair harness.
- SPIRAL CABLE CHECK

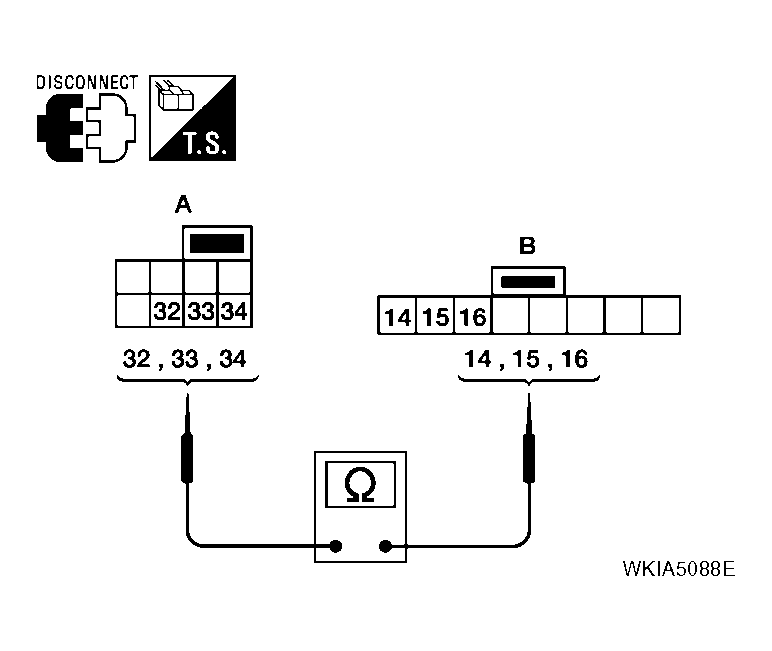

- Disconnect spiral cable connectors M30 (A) and M102 (B).
- Check continuity between spiral cable terminals.
TERMINAL CONTINUITY CHARTTerminals Continuity Spiral cable Terminal Terminal 32 16 Yes 33 15 34 14 OK or NG
OK: GO TO 4.
NG: Replace spiral cable. Refer to "REMOVAL AND INSTALLATION ".
- CHECK STEERING SWITCH RESISTANCE

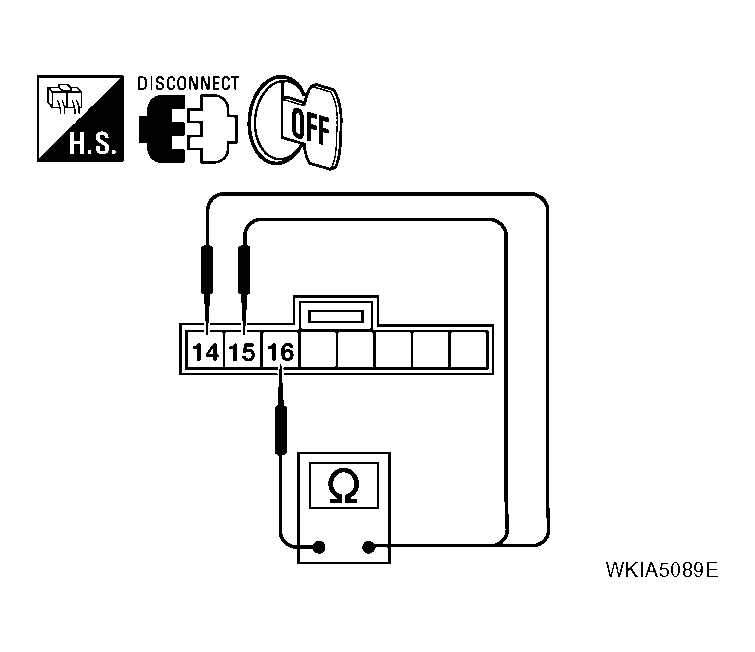

Check resistance between steering switch terminals.
TERMINAL SIGNAL CONDITION SPECIFICATIONTerminal Signal name Condition Resistance (Ω) (Approx.) 15 16 Seek (down) Depress (station) down switch. 165 Power Depress power switch. 0 Volume (down) Depress volume down switch. 652 14 16 Seek (up) Depress (station) up switch. 165 Mode Depress mode switch. 0 Volume (up) Depress volume up switch. 652 OK or NG
OK: Inspection End.
NG: Replace steering switch. Refer to "STEERING WHEEL SWITCHES ".
