Headlight Relay: Inspection
WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT HEADLIGHT RELAY

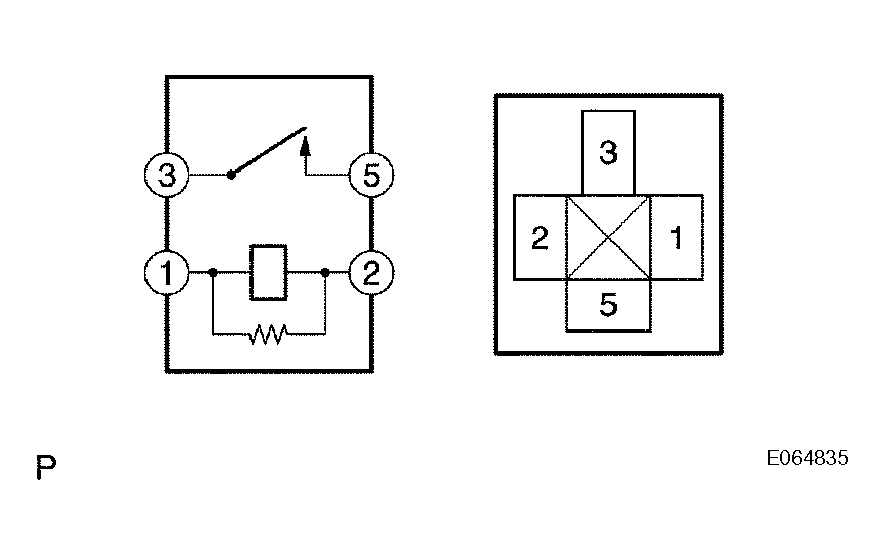

- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
CONNECTOR TERMINAL RESISTANCE SPECIFICATIONSTester Connection Specified Condition 3 - 5 10 kΩ or higher 3 - 5 Below 1 Ω (When battery voltage is applied to terminals 1 - 2) - Measure the resistance according to the value(s) in the table below.
