Vane Pump: Components

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

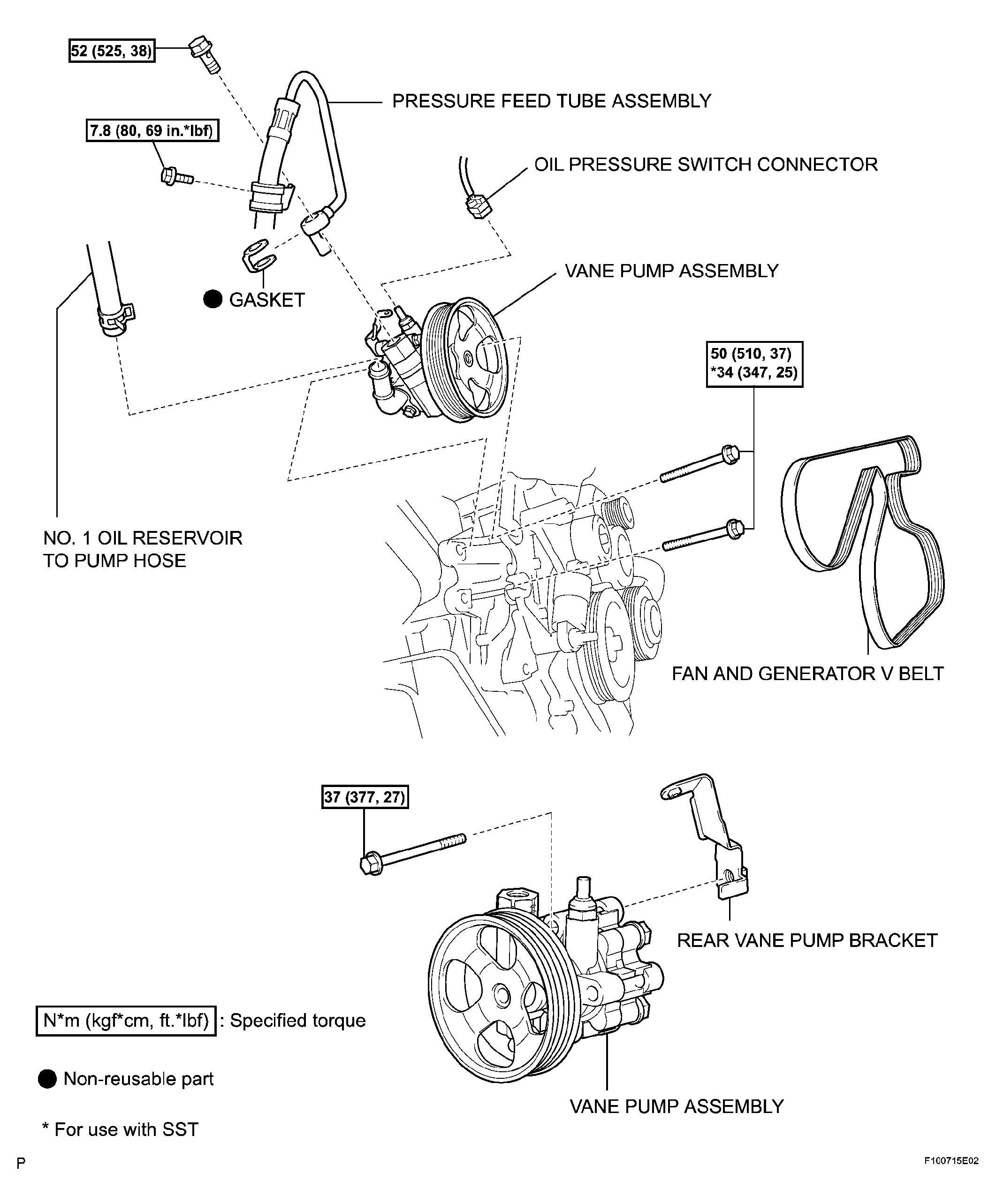

Fig 1: Identifying Power Steering Vane Pump Components (1 of 2)
G04223373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

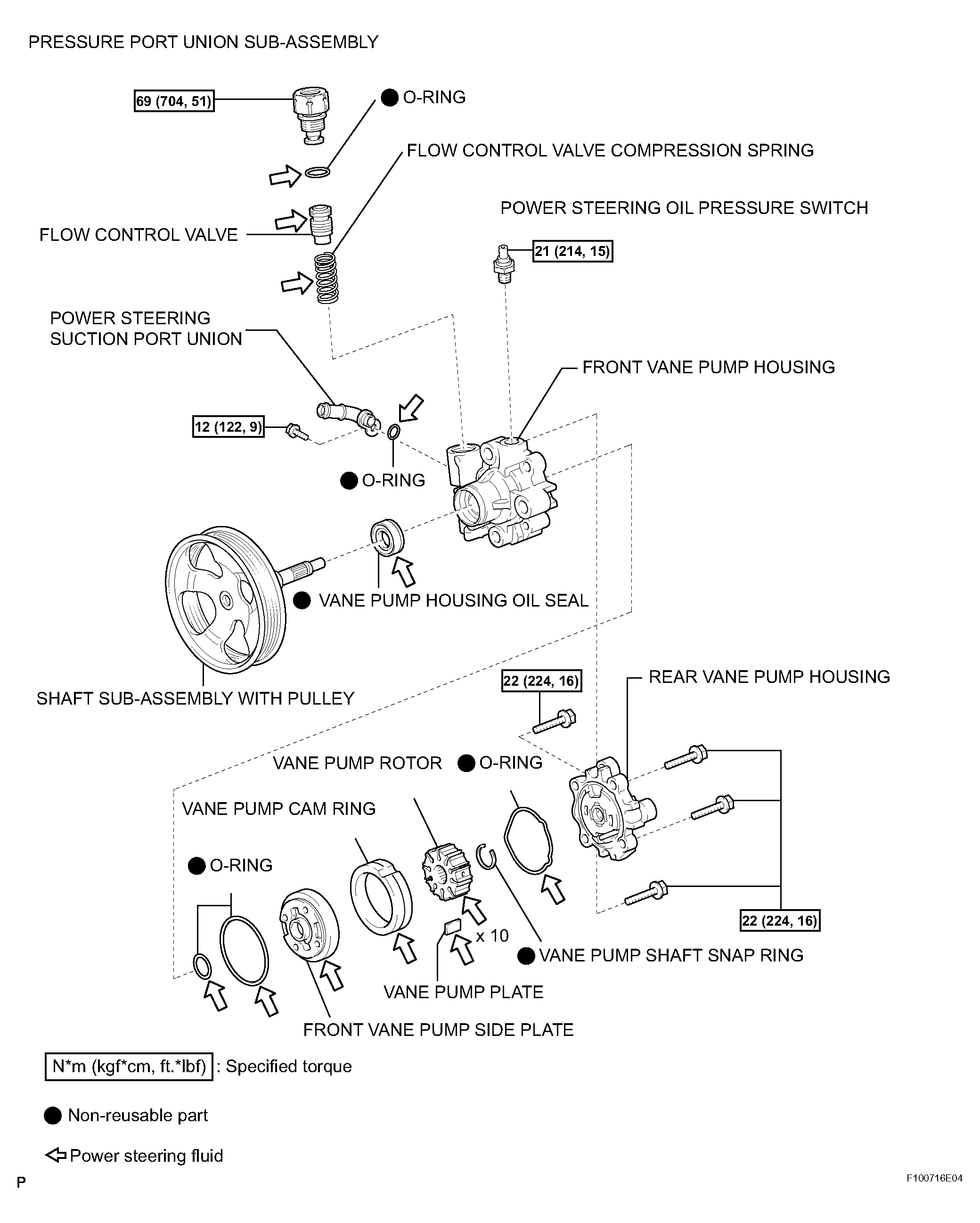

Fig 2: Identifying Power Steering Vane Pump Components (2 Of 2)
G04223374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
