Removal and Installation: Installation
WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.

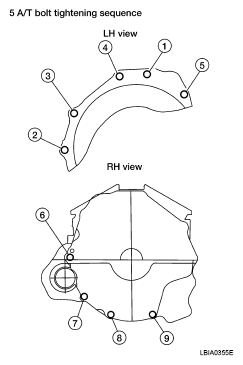

When installing the transaxle to the engine, use the specified tightening torque in the numerical sequence as shown.
TIGHTENING TORQUE SPECIFICATIONS
| Bolt No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|
| Tightening torque N.M (kg-m, ft-lb) | 74.5 (7.6, 55) | 41.5 (4.2, 31) | |||||||
- Install converter to drive plate bolts.
Converter to drive plate bolts 5 A/T : 54 N.M (5.5 kg-m, 40 ft-lb)
NOTE: With converter installed, rotate crankshaft several turns to check that transaxle rotates freely without binding. - Install rear cover plate.
Rear cover plate bolt : 6.91 N.M (0.70 kg-m, 61 in-lb)
- Install crankshaft position sensor (POS).
Crankshaft position sensor (POS) bolt : 9.6 N.M (0.98 kg-m, 85 in-lb)
- Tighten the front suspension member nuts and bolts to specification. Refer to "REMOVAL AND INSTALLATION ".
- Install the stabilizer bar bushings and clamps in the specified orientation. Refer to "REMOVAL AND INSTALLATION ".
- Tighten the stabilizer bar and connecting rod nuts and bolts to specification. Refer to "COMPONENTS ".
- Tighten the steering gear bolts to specification. Refer to "REMOVAL AND INSTALLATION ".
