Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the luggage side upper and lower RH finishers. Refer to "REMOVAL AND INSTALLATION ".
  2. Detach the antenna amp. harness clip (D), disconnect the antenna amp. connector (A), harness connector (B), then remove the antenna amp. screw (C) and remove the antenna amp. (1).

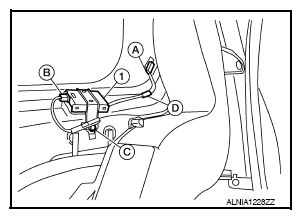

Fig 1: Identifying Antenna Amp. With Harness Clip, Connector And Screw
G08170019Courtesy of NISSAN NORTH AMERICA, INC.
