System - Basic Engine Control System

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

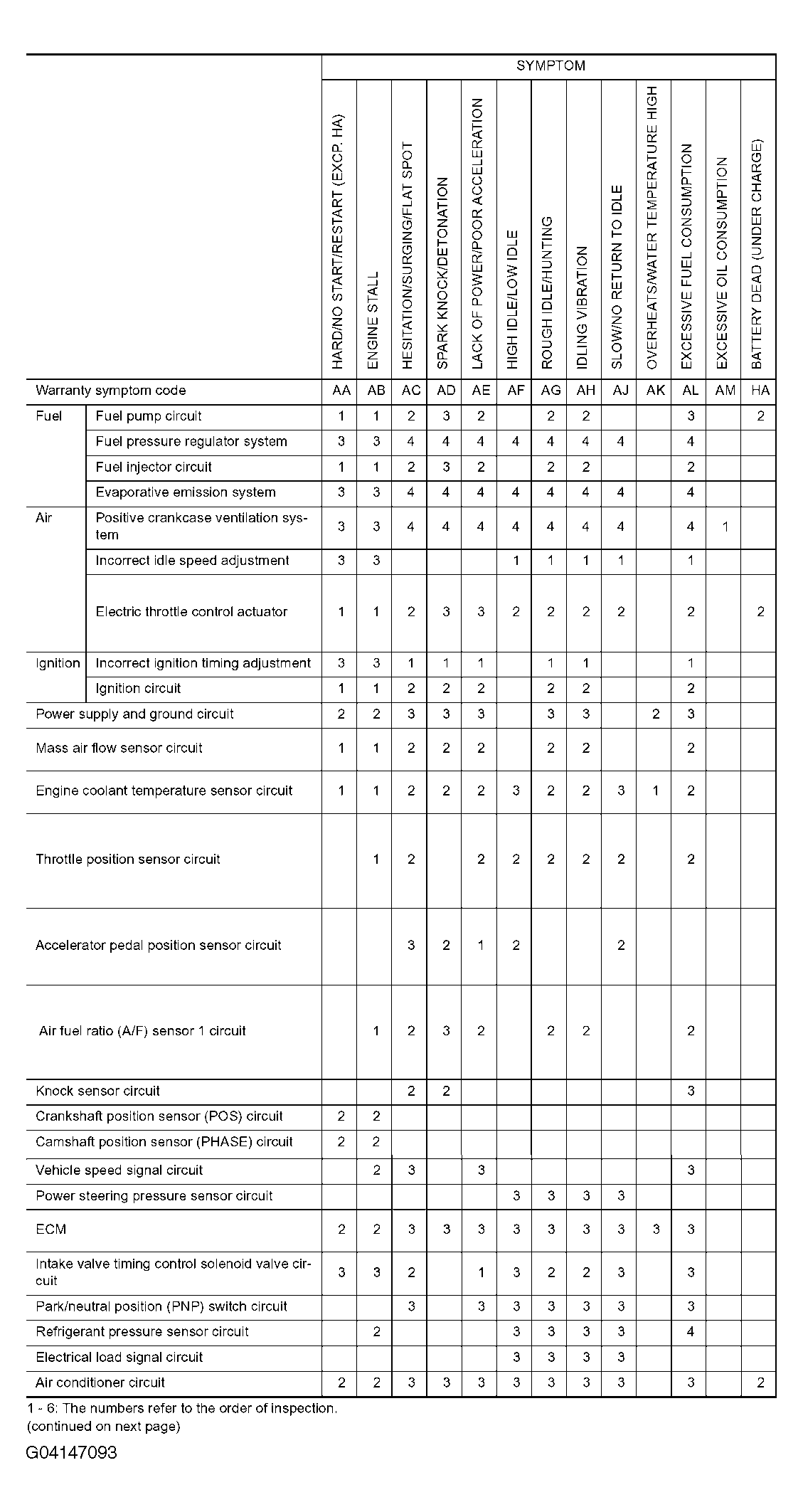

Fig 1: Basic Engine Control System Symptom Matrix Chart
G04147093Courtesy of NISSAN MOTOR CO., U.S.A.

1 - 6: The numbers refer to the order of inspection.

(continued on next page)
