Terminals And Reference Value For Passenger And Rear LH, RH Door Control Units
WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

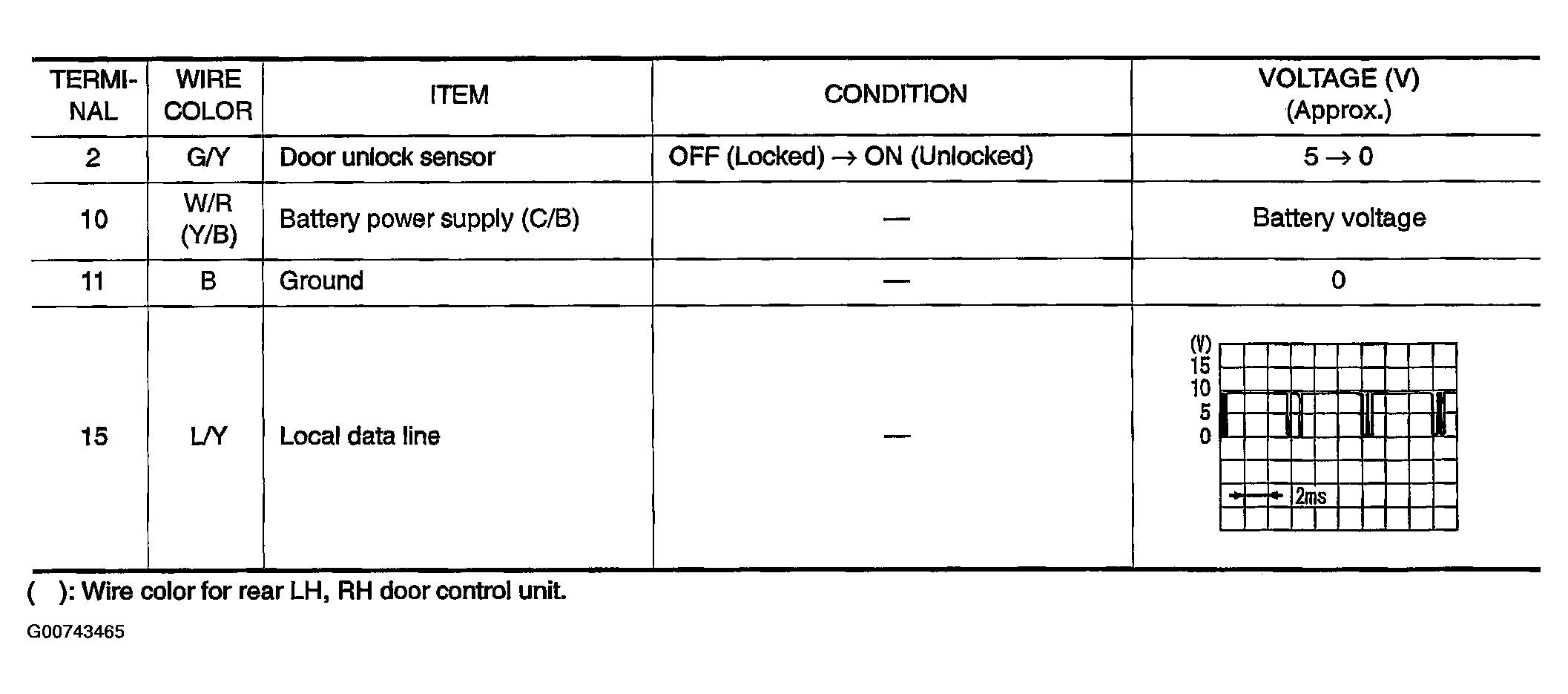

Fig 1: Terminals & Reference Value for Passenger & Rear LH, RH Door Control Units
Courtesy of NISSAN MOTOR CO., U.S.A.
( ): Wire color for rear LH, RH door control unit.
