For Key:

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

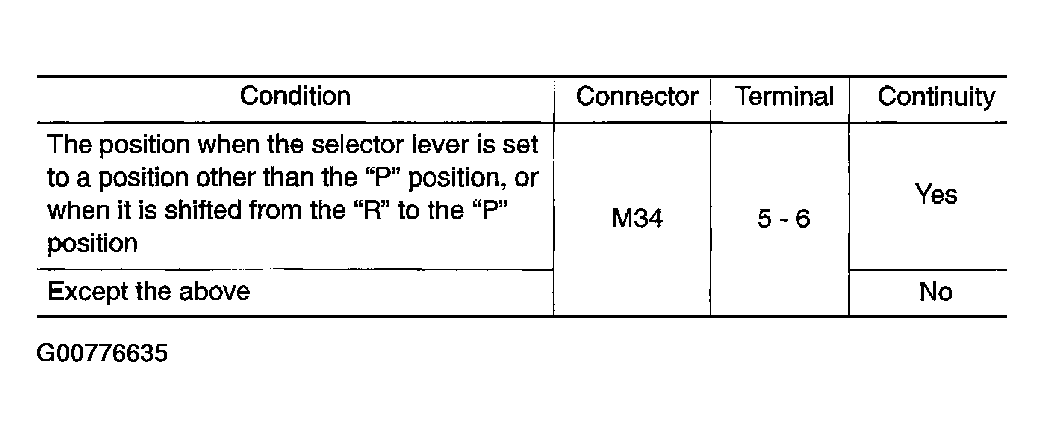

Fig 1: Terminal Identification Table
G00776635Courtesy of NISSAN MOTOR CO., U.S.A.

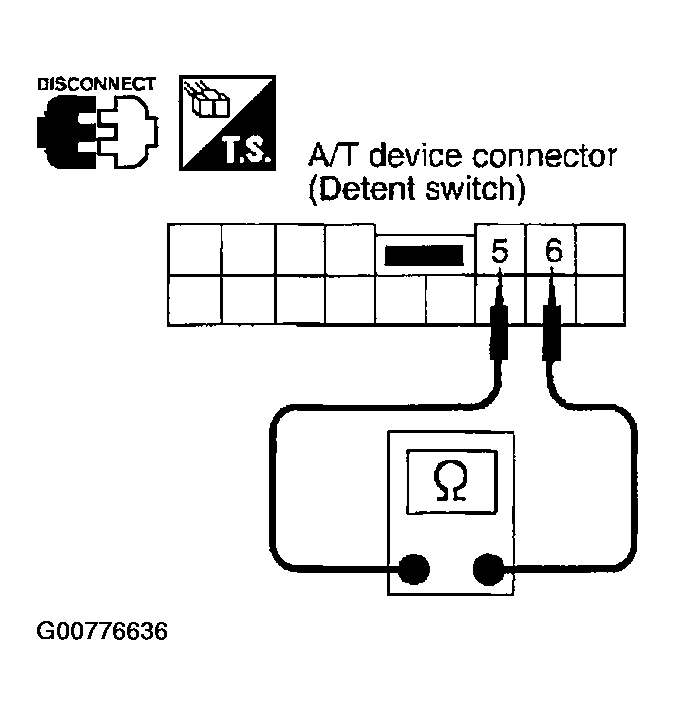

Fig 2: Checking Detent Switch
G00776636Courtesy of NISSAN MOTOR CO., U.S.A.
