Key Switch

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals of the key switch and key lock solenoid connector.

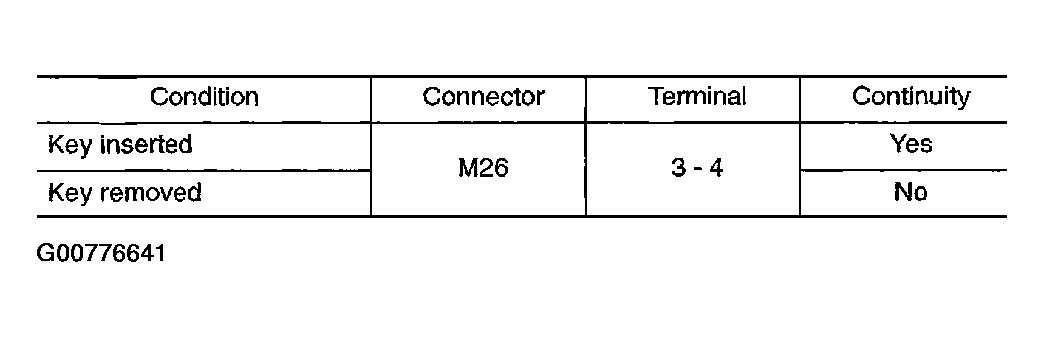

Fig 1: Terminal Identification Table

Courtesy of NISSAN MOTOR CO., U.S.A.

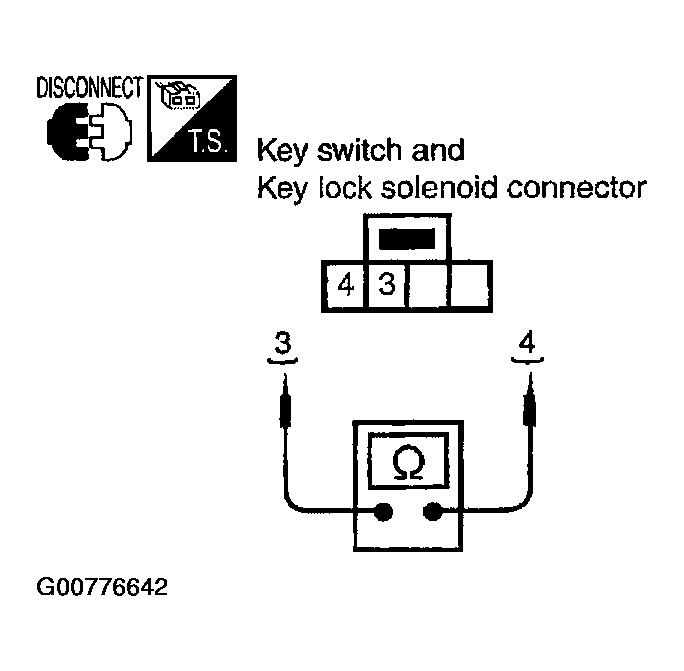

Fig 2: Checking Key Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
